Concealed Cabinet Hinge
Not sure what you need? Have a look at our Concealed Cabinet Hinges Guide for some advice!
142 Products
Grass Nexis 155 Degree Pie Cut Corner Hinge
Opening angle 155 degreesFor door thickness 16 to 22 mm35 mm diameter cupScrew fixingClick on armsNickel-plated zinc alloy hingeOrder fixing screws se...
£10.60View details
Grass Tiomos Wing Mounting Base Plate 15mm Pre Mounted Euro Screw
From the Tiomos Grass range this is a much higher plate used for either insetting hinges into the frame when closed, or for creating a gap when close...
£1.44View details
H?Fele Door Fixing Set, Full Overlay Mounting, For Slido F-Park71 16b/25b
Area of application:-For Häfele Slido F-Park71 16 B / 25B, Vorfront (see other parts need in related products)Concealed hinge version:-Full overlayCra...
£1.28View details

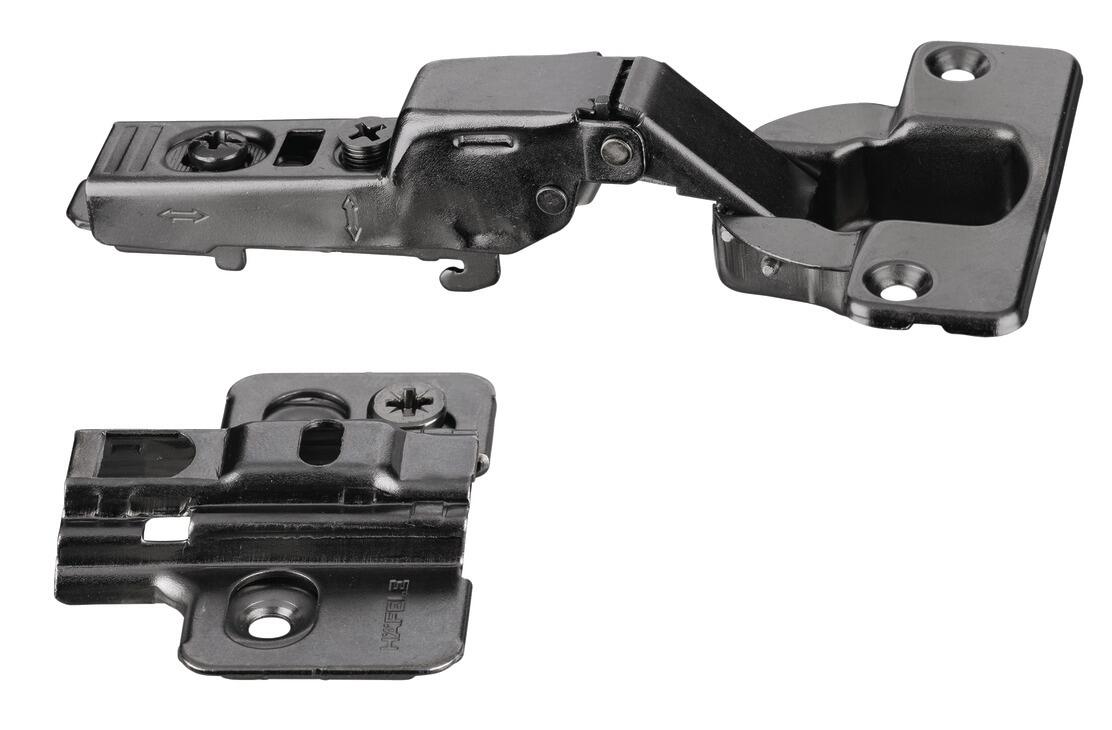

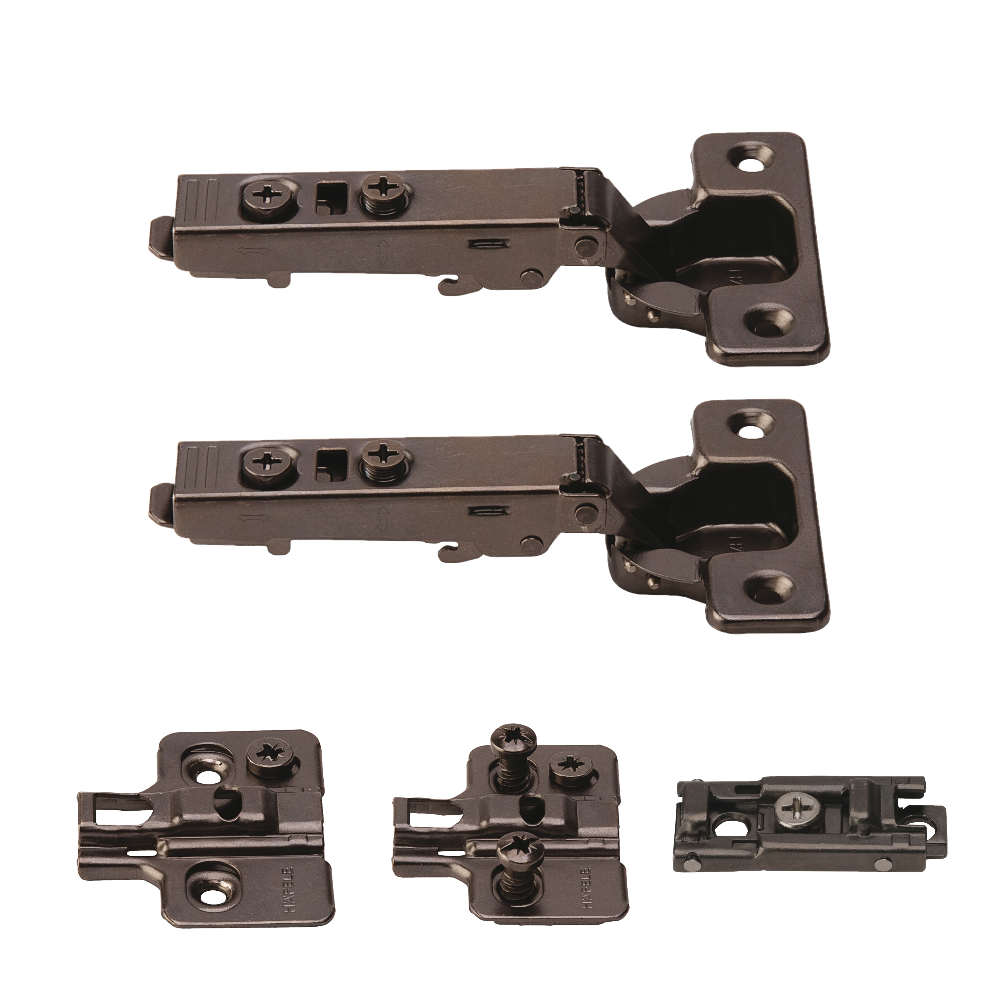

Hafele Metalla 310 - Hinge & Plate Set, 110 Degree Opening - Black Nickel
Hafele Metalla 310 Hinge is a concealed cup hinge designed for inset mounting on wooden doors with thicknesses ranging from 14 to 22 millimetres. Know...
£5.05View details
Hafele Metalla 310 - Hinge & Plate Set, 110 Degree Opening - Nickel Plated
Hafele Metalla 310 Hinge is a concealed cup hinge designed for inset mounting on wooden doors with thicknesses ranging from 14 to 22 millimetres. Know...
£4.03View details
Hafele Metalla 310 - Hinge & Plate Set, 155 Degree Opening - Black Nickel
Hafele Metalla 310 Hinge is a concealed cup hinge designed for inset mounting on wooden doors with thicknesses ranging from 14 to 24 millimetres. Know...
£8.09View details
Hafele Metalla 310 - Hinge & Plate Set, 155 Degree Opening - Nickel Plated
Hafele Metalla 310 Hinge is a concealed cup hinge designed for inset mounting on wooden doors with thicknesses ranging from 14 to 24 millimetres. Know...
£5.24View details
Hafele Metalla 310 135 Degree Pie-Cut Hinge ( Without Plate )
For connecting two corner cabinet doors, this hinge attaches the middle door to the outer door.For connecting two corner cabinet doorsOpening angle 13...
£2.50View details
Hafele Metalla 310 Full Overlay Concealed Cup Hinge, 155 Degree, For Up To 24 Mm Thick Doors
For cabinet with internal pull outs or extending traysOpening angle 155 degrees35 mm diameter screw fixing cupZero protrusionWith integrated soft clos...
£2.40View details
Hafele, Concealed Cup Hinge, 270 Degree, Keyhole Fixing Arm (Without Plate)
For standard applications35 mm cup diameter Drilling pattern52/6.5 mmCup fixingFor screw fixingMountingMounting in drilled hole, Screw fixingConcealed...
£3.92View details
Hafele, Cruciform Mounting Plate, Zinc Plated
With quick fixing system and eccentric adjustment, Height 3 mm, hole centres: 32 mmHeight adjustment from -4 to 2 mmApplication:-For click on systemsV...
£1.45View details
Hinge Arm Cover Plate, Nickel Plated Steel
• Please note: Cover plate to match 0 mm crank hinge is not soft close compatible• Nickel-plated steelPDF Catalogue Page
£0.30View details
Hinge Spacer For J95 Concealed Hinge Range- 2mm
For fitting under the J95-P6T mounting plateDecreases overlay of overlaying doors by 2mmIncreases clearnace of inset doors by 2mmCan be double for 4mm...
£0.65View details
Horizontal Hinge, Steel
From £1.01
Inset Concealed Cup Hinge, 95 Degree Standard, Sprung, With 40mm Diameter Cup, Slide On, Grass
For standard applications- setting inside cupboard door frame.The 40mm diameter cup makes this an excellent choice for doors up to 38 mm thickness Th...
£3.84View details
Kamat Guiding Hinge, For Refrigerator Surrounds, Opening Angle 115 Degrees
For extra high furniture frontsFor refrigerator surrounds with precision reveal alignmentGuiding hinge for screwing onCan only be used in combination ...
£47.93View details
Mitred Hinge, For 45 Degree Mitred Applications
Specially designed to enable door and carcase edges to meet at mitred anglesDia. 35 mm cup The only hinge that can be used for furnit...
£22.39View details
Mounting Plate Cover
From £3.83Mounting Plate Cover
Decorative cover for J95-P6T mounting plates Reduces possibility of accidental adjustment or removal of hinge
£3.83View details
Mounting Plate, Cruciform, For Ftd / Dtc Hinges, Hospa Screw Fixing, Two Part Plate, Adjustable
This product is usually held in store (limited stocks), so can be collected or despatched same day as ordering (weekdays).MaterialPressed steelColour/...
£0.56View details
Mounting Plate, Cruciform, For Ftd / Dtc Hinges, With Pre-Mounted Euro Screws, One Part Plate
This product is usually held in store (limited stocks), so can be collected or despatched same day as ordering (weekdays).MaterialPressed steelColour/...
£0.29View details
Mounting Plate, Cruciform, For Grass Nexis Click On Hinges, Hospa Screw Fixing, One Part Plate
MaterialSteelArea of applicationFor click on systemsColour/finishnickelEdge distance37 mmScrew distance32 mmVersionOne part plate with external height...
£0.68View details
Mounting Plate, Cruciform, For Grass Nexis Click On Hinges, Hospa Screw Fixing, Two Part Plate
MaterialZinc alloyArea of applicationFor Grass click on systemsColour/finishnickelEdge distance37 mmScrew distance32 mmInstallationHospa screw fixingV...
£2.50View details
Mounting Plate, Cruciform, For Grass Nexis Click On Hinges, With Pre-Mounted Euro Screws, One Part Plate
MaterialSteelArea of applicationFor click on systemsColour/finishnickelEdge distance37 mmScrew distance32 mmVersionOne part plate with external height...
£0.95View details
Mounting Plate, Cruciform, For Grass Nexis Click On Hinges, With Pre-Mounted Euro Screws, Two Part Plate
Drilling depth9.5 mmScrew length10.5 mmMaterialZinc alloyArea of applicationFor click on systemsEdge distance37 mmScrew distance32 mmInstallationTwo p...
£2.96View details
Mounting Plate, Cruciform, For Grass Tiomos Click On Hinges, Dowel Fixing, Two Part Plate, 4 Point Fixing
MaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing hinges onlyColour/finishnickelAdjustment facilityHeight adjustment Via worm gear...
£1.83View details
Mounting Plate, Cruciform, For Grass Tiomos Click On Hinges, Hospa Screw Fixing, Two Part Plate, 2 Point Fixing
Screw length15 mmMaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing hinges onlyColour/finishnickelAdjustment facility? 2 mm height ...
£2.66View details
Mounting Plate, Cruciform, For Grass Tiomos Click On Hinges, Hospa Screw Fixing, Two Part Plate, 4 Point Fixing
MaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing hinges onlyColour/finishnickelAdjustment facilityHeight adjustment Via worm gear...
£1.18View details
Mounting Plate, Cruciform, For Grass Tiomos Click On Hinges, With Pre-Mounted Euro Screws, Two Part Plate, 4 Point Fixing
Drilling depth12 mmScrew length13.5 mmMaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing hinges onlyColour/finishnickelAdjustment f...
£1.68View details
Mounting Plate, Cruciform, For Grass Tiomos Night Click On Hinges, Hospa Screw Fixing, Two Part Plate, 4 Point Fixing
Please note - Photo shows pre-mounted euro screw version, screws are not includedMaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing...
£1.71View details
Mounting Plate, Cruciform, For Grass Tiomos Night Click On Hinges, With Pre-Mounted Euro Screws, Two Part Plate, 4 Point Fixing
MaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing hinges onlyColour/finishnickelInstallationPre-mounted Euro screw fixingVersionTw...
£2.28View details
Mounting Plate, Cruciform, For Hafele 270 Degree Keyhole Fixing Hinges, With Pre-Mounted Euro Screws
Height0 mmMountingKeyholeMaterialZincFinishNickel platedGuarantee25 yearsCatalogue PDF
£0.83View details
Mounting Plate, Cruciform, For Hafele Metalla 310 Quick Fixing Hinges, Hospa Screw Fixing, Two Part Plate
MaterialSteelModelMetalla 310 SMArea of applicationAccessoriesColour/finishNickel or Black NickelAdjustment facilityHeight adjustment: Via eccentric +...
£0.29View details
Mounting Plate, Cruciform, For Hafele Metalla 310 Quick Fixing Hinges, With Pre-Mounted Euro Screws, Two Part Plate
MaterialSteelModelMetalla 310 SMArea of applicationAccessoriesColour/finishNickel or black NickelAdjustment facilityHeight adjustment: Via eccentric +...
£0.36View details
Mounting Plate, Econ Cruciform, For Grass Tiomos Click On Hinges, Hospa Screw Fixing, Two Part Plate, 3 Point Fixing
MaterialSteelModelTiomosArea of applicationFor Tiomos click on fixing hinges onlyColour/finishnickelEdge distance37 mmScrew distance32 mmInstallationH...
£0.85View details
Mounting Plate, Econ Cruciform, For Grass Tiomos Click On Hinges, With Pre-Mounted Euro Screws, Two Part Plate, 3 Point Fixing
Drilling depth12 mmScrew length13.5 mmMaterialSteelModelTiomosArea of applicationFor Tiomos click on fixing hinges onlyColour/finishnickelAdjustment f...
£1.15View details
Mounting Plate, Face Frame, For Grass Nexis Click On System Hinges, Hospa Screw Fixing, One Part Plate
MaterialZinc alloyArea of applicationFor click on systemsColour/finishnickelEdge distance10 mmScrew distance36 mmInstallationHospa screw fixingVersion...
£2.92View details
Mounting Plate, For Heavy Duty J95 Concealed Hinge, Screw Fixing
These are stocked items, and are usually available for same day collectionMaterialSteel/Zinc alloyColour/finishnickelDepth adjustment+ 1.5 mm, - 2.5 m...
£5.48View details
Mounting Plate, Inline, For Grass Nexis Click On System Hinges, Hospa Screw Fixing, Two Part Plate
MaterialZinc alloyArea of applicationFor click on systemsColour/finishnickelAdjustment facilityHeight adjustment Via eccentricEdge distance13.5 mmScre...
£2.26View details
Mounting Plate, Inline, For Grass Nexis Slide On System Hinge, Hospa Screw Fixing, Two Part Plate
MaterialZinc alloyArea of applicationFor slide on systemsColour/finishnickelAdjustment facilityHeight adjustment Via screw ?2 mmEdge distance37 mmScre...
£1.70View details
Mounting Plate, Inline, For Grass Tiomos Click On System Hinges, Dowel Fixing, Two Part Plate
Drilling depth13 mmMaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing hinges onlyColour/finishnickelEdge distance20 mmVersionTwo pa...
£1.94View details
Mounting Plate, Inline, For Grass Tiomos Click On System Hinges, Hospa Screw Fixing, Two Part Plate
MaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing hinges onlyColour/finishnickelAdjustment facilityHeight adjustment Via worm gear...
£1.34View details
Mounting Plate, Inline, For Grass Tiomos Night Click On System Hinges, Hospa Screw Fixing, Two Part Plate
MaterialSteelModelTiomosArea of applicationFor TIOMOS click on fixing hinges onlyColour/finishblack nickelAdjustment facilityHeight adjustment Via wor...
£1.58View details
Mounting Plate, Super Compact Cruciform, For Grass Nexis Click On System Hinges, Euro Screw Fixing, Two Part Plate
MaterialZinc alloyArea of applicationFor click on systemsColour/finishnickelEdge distance37 mmScrew distance32 mmVersionTwo part plate, with external ...
£1.03View details
Mounting Plate, Super Compact Cruciform, For Grass Nexis Click On System Hinges, Hospa Screw Fixing, Two Part Plate
MaterialZinc alloyArea of applicationFor click on systemsColour/finishnickelEdge distance37 mmScrew distance32 mmVersionTwo part plate, with external ...
£1.29View details
Mounting Plate, Super Compact Cruciform, For Grass Nexis Slide On Hinges, Hospa Screw Fixing, One Part Plate
MaterialPressed steelArea of applicationFor slide on systemsColour/finishnickelEdge distance37 mmScrew distance32 mmVersionOne part plate with externa...
£0.74View details
Mounting Plate, Super Compact Cruciform, For Grass Nexis Slide On Hinges, With Pre-Mounted Euro Screws, One Part Plate
MaterialPressed steelArea of applicationFor slide on systemsColour/finishnickelEdge distance37 mmScrew distance32 mmVersionOne part plate with externa...
£1.21View details
Mounting Plate, Super Compact Flanges, For Hafele Metalla 310 Quick Fixing Hinges, Hospa Screw Fixing, One Part Plate
MaterialSteelModelMetalla 310 SMColour/finishnickelAdjustment facilityHeight adjustment: Via slot ?2 mm, One part plate with ? 2 mm height adjustmentE...
£0.15View details
Mounting Plate, Super Compact Flanges, For Hafele Metalla 310 Quick Fixing Hinges, With Pre-Mounted Euro Screws, One Part Plate
MaterialSteelModelMetalla 310 SMColour/finishnickelAdjustment facilityHeight adjustment: Via slot ?2 mm, One part plate with ? 2 mm height adjustmentE...
£0.22View details
Night (Black Finish)Concealed Cup Hinge, 95 Degree Opening, Grass Tiomos , Takes Up To 28mm Thick Doors, Click On Arm, Soft Close (Without Plate)
For standard applicationDiameter 35 mm cupUp to 28 mm door thickness (for door thicknesses 29 mm and above, a trial fitting is recommended)Will take u...
£6.80View details
Opening Angle Reduction Clip, For 110 Degree & 125 Degree Grass Nexis Hinges
Prevents doors from colliding with fronts or walls in corner applicationsReduces the opening angle to 85?MaterialPlasticColour/finishBlackArea of appl...
£0.59View details
Optimat Caravan/Motorhome Cupboard Hinge, Face Frame Hinges With Screw On Cup / 9072548
These are stocked items, and are usually available for same day collectionHettich Optimat Plus 4 FM hingeThis product is usually held in store (limite...
£3.73View details
Pivot Hinge, 140 Degree Without Stop
DetachableArea of applicationFor flush mounted doorsMaterialPlasticOpening angle140 degreeFor door thickness12-21 mmInstallationFor press fittingOne ...
£1.53View details
Pivot Hinge, 90 Degree, For Writing Bureau
Smooth drawnOne pair per mountingColour/finishPolishedArea of applicationFor drop-down worktop flapMaterialBrassOpening angle90 degreeLoad bearing cap...
£29.82View details
Push Door Catch, Locking Part, For Duomatic Hinge
For use with Duomatic hinge, for opening doors without handlesInstallation:-Screw fixing with positioning aidModel:-DuomaticColour/finish:-GreyThickne...
£0.48View details
Push Door Hinge, 110 Degree Duomatic, Self Opening, Quick Fitting Arm, Full Overlay Mounting
For use with PUSH door catch, for opening doors without handles, Screw fixing, 48/6For opening doors without handles 35mm diameter cupSelf opening hin...
£7.63View details
Safety Cover Cap For J95
From £3.34Safety Cover Cap For J95
Decorative cover for J95 hinges The cover locks the release lever of J95 hinge to prevent accidental removal
£3.34View details
Soft Close Adapter Housing, Cruciform, For 32 Mm Series Drilled Holes, For Soft Close Mechanism, Hafele
MaterialPlasticColour/finishGreyVersionwithout positioning aidArea of applicationFor gently closing doorsInstallationFor screw fixingOrder referenceOr...
£0.24View details
Soft Close Adapter Housing, Cruciform, With Positioning Aid, For Soft Close Mechanism, Hafele
MaterialPlasticColour/finishGreyVersionwith positioning aidArea of applicationFor gently closing doorsInstallationFor screw fixingOrder referenceOrder...
£0.24View details
Soft Close Adapter Housing, Linear, For Soft Close Mechanism, Hafele
MaterialPlasticColour/finishGreyVersionwith positioning aidArea of applicationFor gently closing doorsInstallationFor screw fixingOrder referenceOrder...
£0.24View details
Soft Close Fitting, For Screw Fixing Cup Nickel Plated
Article detailsFor use with 95?/100?/110?/125?/45?/30?/post/-24?/-14? sprung concealed hinges with screw fixing cupNo fixing materials required, clips...
£3.68View details
Soft Close Mechanism, For Inserting Into Adapter Housing Or Plug Fitting, Hafele
3 versions available for maximum closing convenienceLight duty - For doors weighing 3.0 - 4.5 kgMedium duty - For doors weighing 4.5 - 6.0 kgHeavy dut...
£1.45View details
Soft Close, For Hinged Doors, For 110 Degree Full Overlay Hinge, Plastic (Pack Of 5)
Colour/finishGreyArea of applicationIdeal for kitchen, bedroom and bathroom cabinetsFor use with 110? full overlay hingeMaterialPlasticInstallationFor...
£15.11View details
Specialist Cupboard Door Hinge, 100 Degree , Grade 304 Stainless Steel, Full Overlay Mounting
With automatic closing spring, Screw fixingVersionIncreased corrosion requirementsConcealed hinge versionFull overlayCrank typeCrankedFor door materia...
£16.01View details
Stay Flap Hinge
From £3.68Stay Flap Hinge
> Straight flaps up to 1.5kg> Automatic closing spring> Steel> Zinc plated> 95° opening angle> 12 – 22 mm
£3.68View details
Table Hinge, Self Supporting, Folding, Matt Brass
Area of applicationFor folding tables and sewing machine tablesMaterialBrassInstallationFor wood thickness as requiredOrder referenceOrder Hospa ? 4.5...
£8.23View details
Table Hinge, Self Supporting, Folding, Polished Nickel
Area of applicationFor folding tables and sewing machine tablesMaterialBrassInstallationFor wood thickness as requiredOrder referenceOrder Hospa ? 4.5...
£10.09View details
Tiomos Concealed Cup Hinge For 45 Degree Angle, Inset, 110 Degree, Click On Arm (Without Plate)
Opening angle 110 degreeFor inset applications (where the door sits inside the frame)35 mm diameter cupFor door thickness up to 24 mm (for door thickn...
£13.10View details
Tiomos Concealed Cup Hinge For 45 Degree Angle, Overlay, 110 Degree, Click On Arm (Without Plate)
Opening angle 110 degreeFor overlay applications (where the door sits on top of the frame)35 mm diameter cupFor door thickness up to 24 mm (for door t...
£11.98View details
Unsprung Concealed Cup Hinge, 110 Degree Standard, For 14 - 22 Mm Thick Doors, Full Overlay, Hafele Metalla 310
For wooden doors, Unsprung, screw fixing cup, 45/9.5, nickel platedArea of application:-For wooden doorsCrank type:-Straight For door material:-Wood M...
£0.82View details
Zysa Concealed Cupboard Hinge, 180 Degree, Drilling Hole 10-24 Mm Diameter
The hinge is secured in the door or panel by tightening a tensioning screwUsing a chipboard or wood screw gives additional securityMountingRight and l...
£4.60View details
