Product code: 325.00.708

£0.00
£22.39
(
£18.66
ex VAT)
Earn224
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Nickel Plated

QuantityPrice (inc VAT)
5 - 9£21.32
10 +£18.95
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

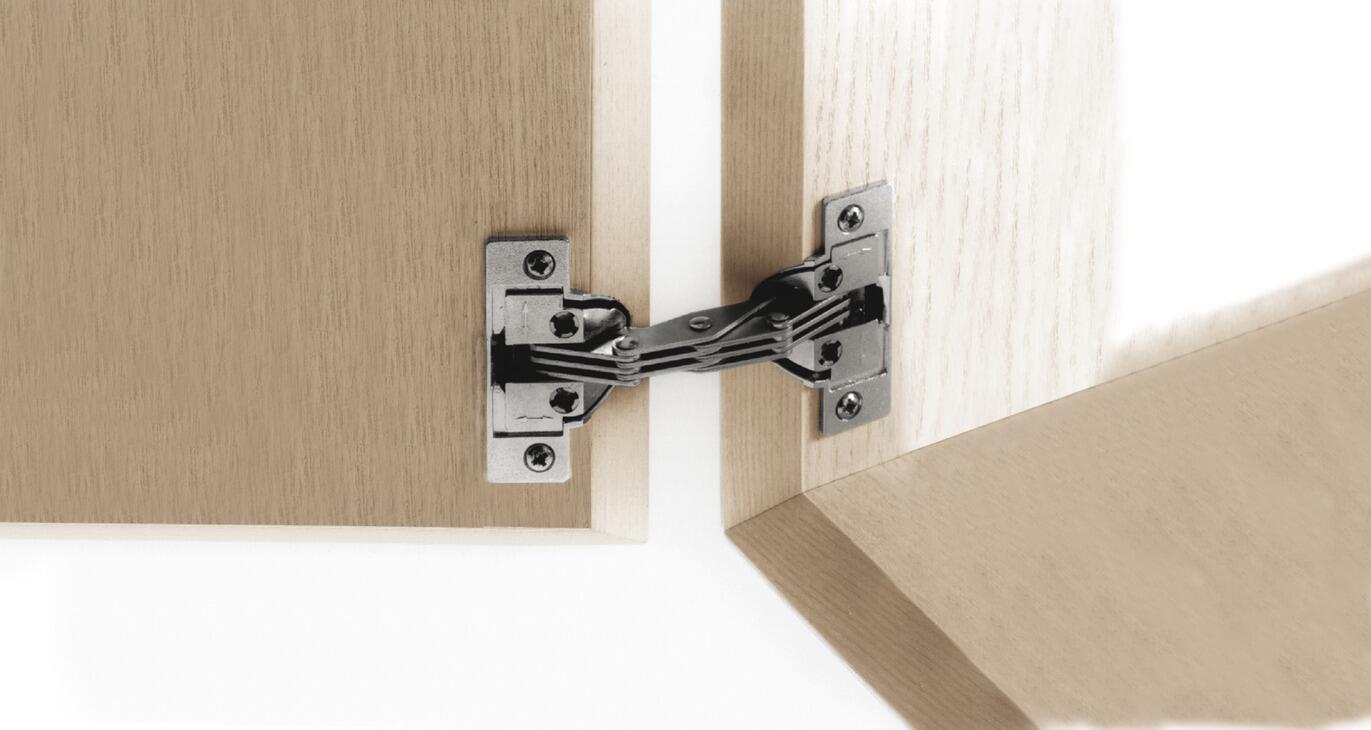

    Specially designed to enable door and carcase edges to meet at mitred angles
    Dia. 35 mm cup

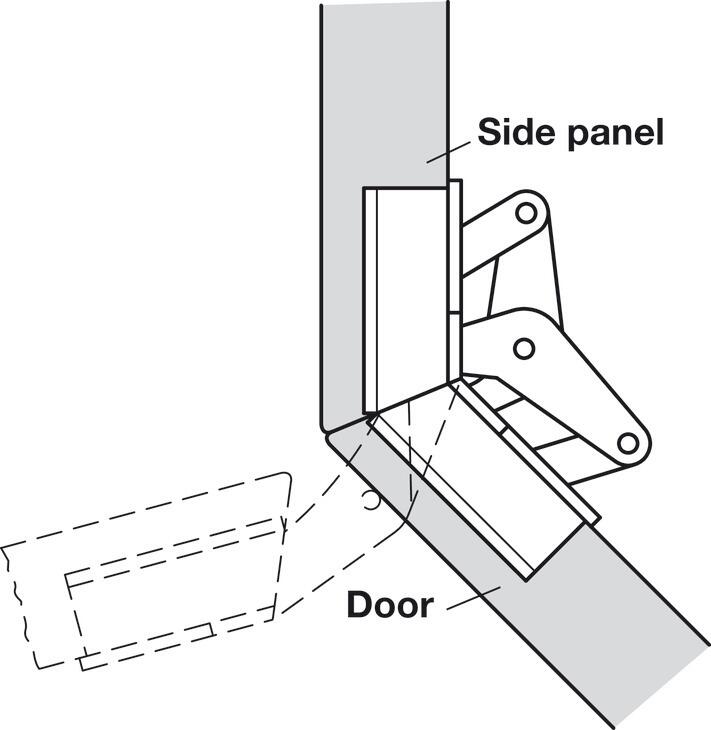

    The only hinge that can be used for furniture structures with mitred cabinet corners and door.

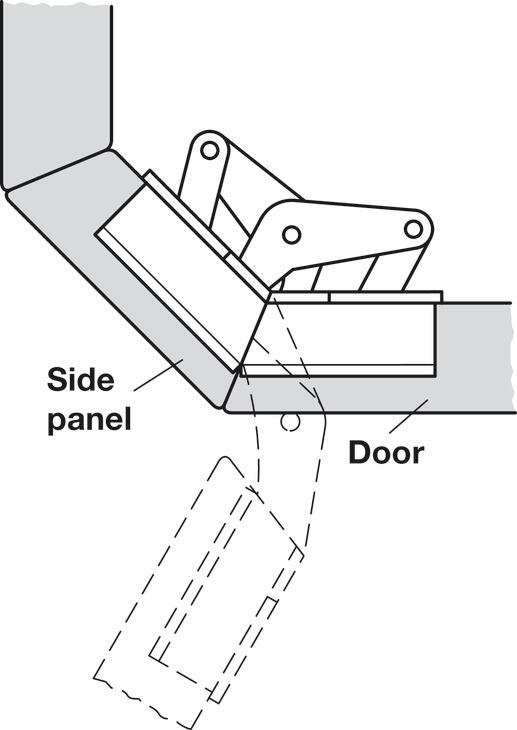

    The mitred hinge is not visible from outside when the door is closed.



    Area of application

    		for 45° mitre applications

    Concealed hinge version

    		Mitre

    For door material

    		Wood

    Door processing for assembly

    		with cup drilling

    Material

    		Cup: Zinc alloy, Hinge arm: Steel

    Colour/finish

    		nickel plated

    Opening angle

    		135°

    For door thickness

    		16 – 22 mm

    Side panel thickness

    		16 – 20 mm

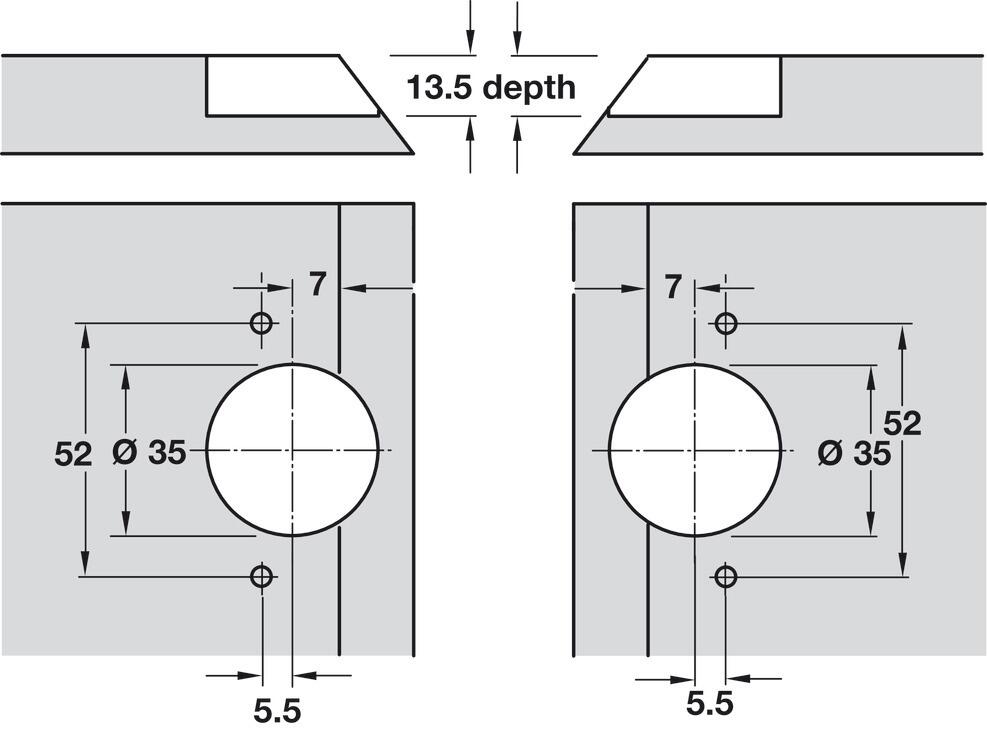

    Cup drilling depth

    13.50 mm

    Cup drilling Dia.

    		35.00 mm

    Cup fixing

    		for screw fixing

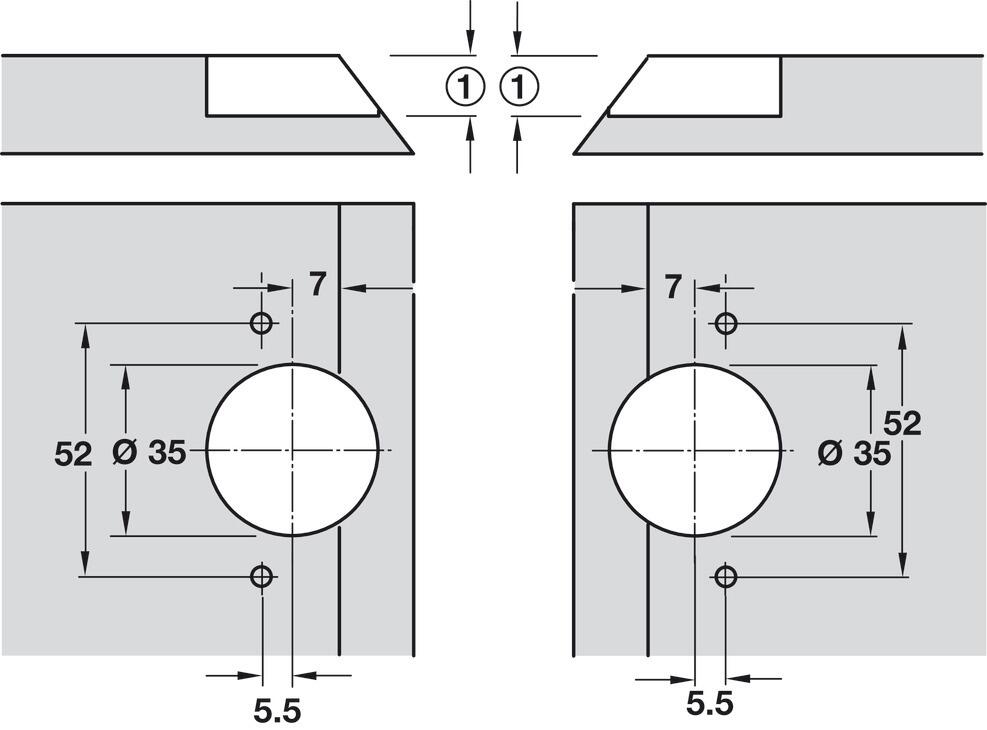

    Drilling pattern

    		52/5.5

    Adjustment facility

    		Side adjustment facility: 1.5 mm, Depth adjustment facility: 1.5 mm, Adjustable up to 3 mm in 3 directions

    Installation

    		For screw fixing

    Installation reference

    		Provide 2 mm door gap all round.
    The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.

     Order reference

    Order Hospa Dia. 3.5 mm raised head screws separately
