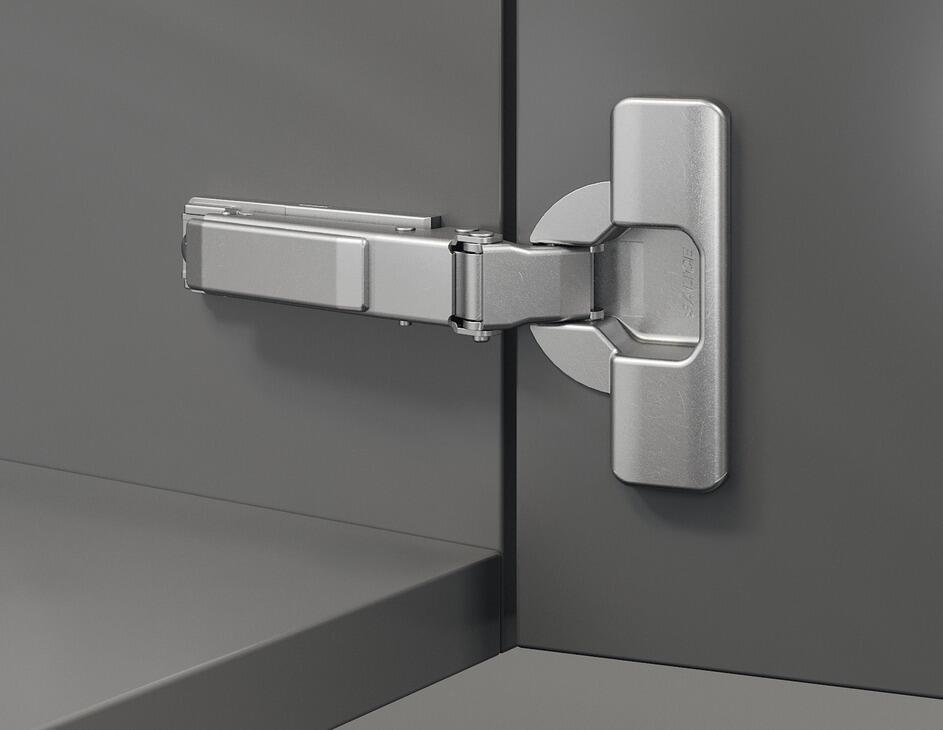

Push Door Hinge, 110 Degree Duomatic, Self Opening, Quick Fitting Arm, Full Overlay Mounting - Hafele

Push Door Hinge, 110 Degree Duomatic, Self Opening, Quick Fitting Arm, Full Overlay Mounting - Hafele

Product code: 329.17.900

£0.00
£7.63
(
£6.36
ex VAT)
Earn76
reward points
Available On Back Order

Bulk Buy Discounts for:

7.42

QuantityPrice (inc VAT)
10 - 24£7.25
25 - 49£6.87
50 +£6.11
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    For use with PUSH door catch, for opening doors without handles, Screw fixing, 48/6

    For opening doors without handles 35mm diameter cup

    • Self opening hinge, for use with PUSH door catch

    Area of application:-For handle-free opening

    Version:-With automatic opening mechanism (Push)

    Concealed hinge version:-Full overlay

    Crank type:-Straight

    For door material:-Wood

    Door processing for assembly:-with cup drilling

    Material:-Steel

    Colour/finish:-nickel plated

    Opening angle:-110°

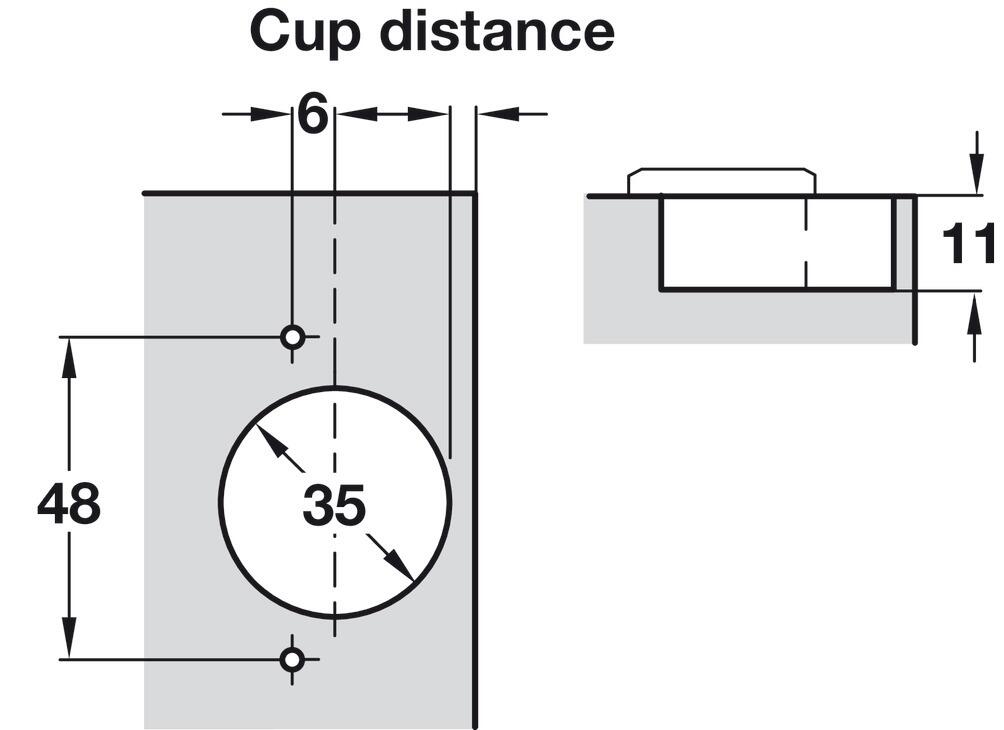

    Cup drilling depth:-11.00 mm

    Cup drilling diameter:-35.00 mm

    Cup fixing:-for screw fixing

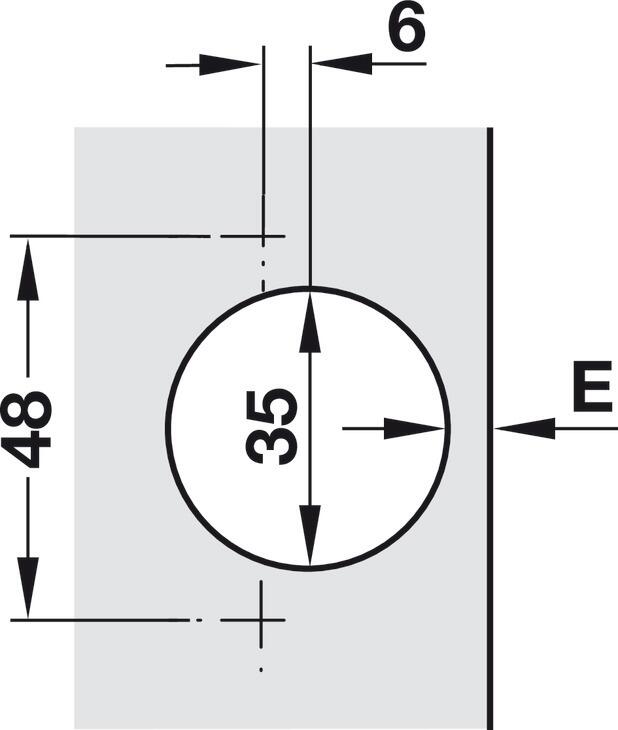

    Drilling pattern:-48/6

    Adjustment facility:-Side adjustment facility 4.5 mm, Height adjustment facility -2 – 2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5–2.8 mm

    Installation:-Quick fitting hinge

    Suitable mounting plate listed in related products
