Hafele Metalla 310 - Hinge & Plate Set, 155 Degree Opening - Nickel Plated - Hafele Metalla
Product code: 483.02.486
£0.00
£5.24
(
£4.37
ex VAT)
Earn52
reward points
reward points
Please choose from the options below to show product code, price and availability
Bulk Buy Discounts for:
Cruciform with woodscrews
| Quantity | Price (inc VAT) |
| 5 - 9 | £4.97 |
| 10 - 24 | £4.71 |
| 25 + | £4.19 |
Bulk Buy Discounts for:
Cruciform with euro screws
| Quantity | Price (inc VAT) |
| 5 - 9 | £5.09 |
| 10 - 24 | £4.83 |
| 25 + | £4.29 |
PRODUCT DETAILS
Hafele Metalla 310 Hinge is a concealed cup hinge designed for inset mounting on wooden doors with thicknesses ranging from 14 to 24 millimetres. Known for its durability and smooth operation, this hinge is a great choice for cabinet doors. With a wide 155 degree opening angle, it provides ample access to cabinet interiors with interior pull outs or extending trays.
Set includes 2x full overlay hinges, 2x 0mm plates of choice & fixings.
- More Information
- For cabinet with internal pull outs or extending trays
- Opening angle 155 degrees
- 35 mm diameter cup
- Screw fixing cup
- Zero protrusion
- Installation: Door to cabinet with quick fixing system

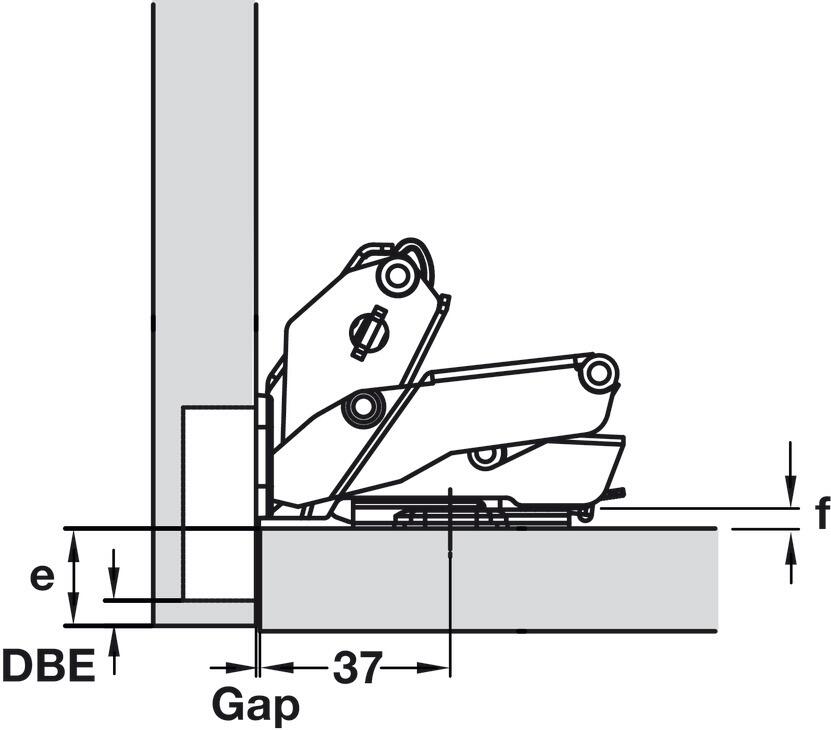

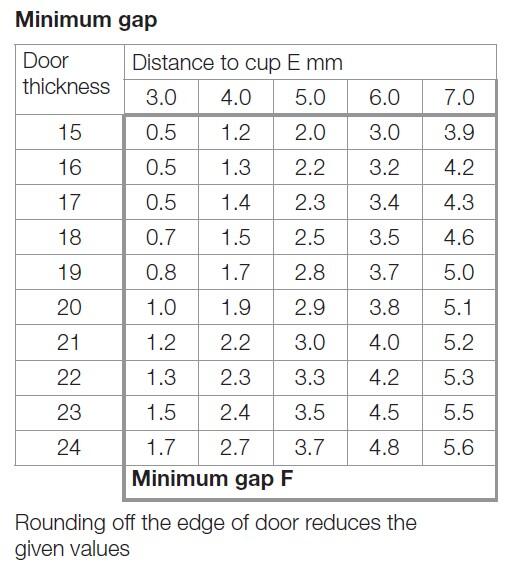

- For door thickness 14-24 mm see table below
- With integrated soft close
- With automatic closing spring
- Adjustment facility:
Side adjustment +-2.5 mm
Height adjustment +-2 mm (via mounting plate)
Depth adjustment +-2 mm - Black nickel plated or nickel plated steel cup and hinge arm

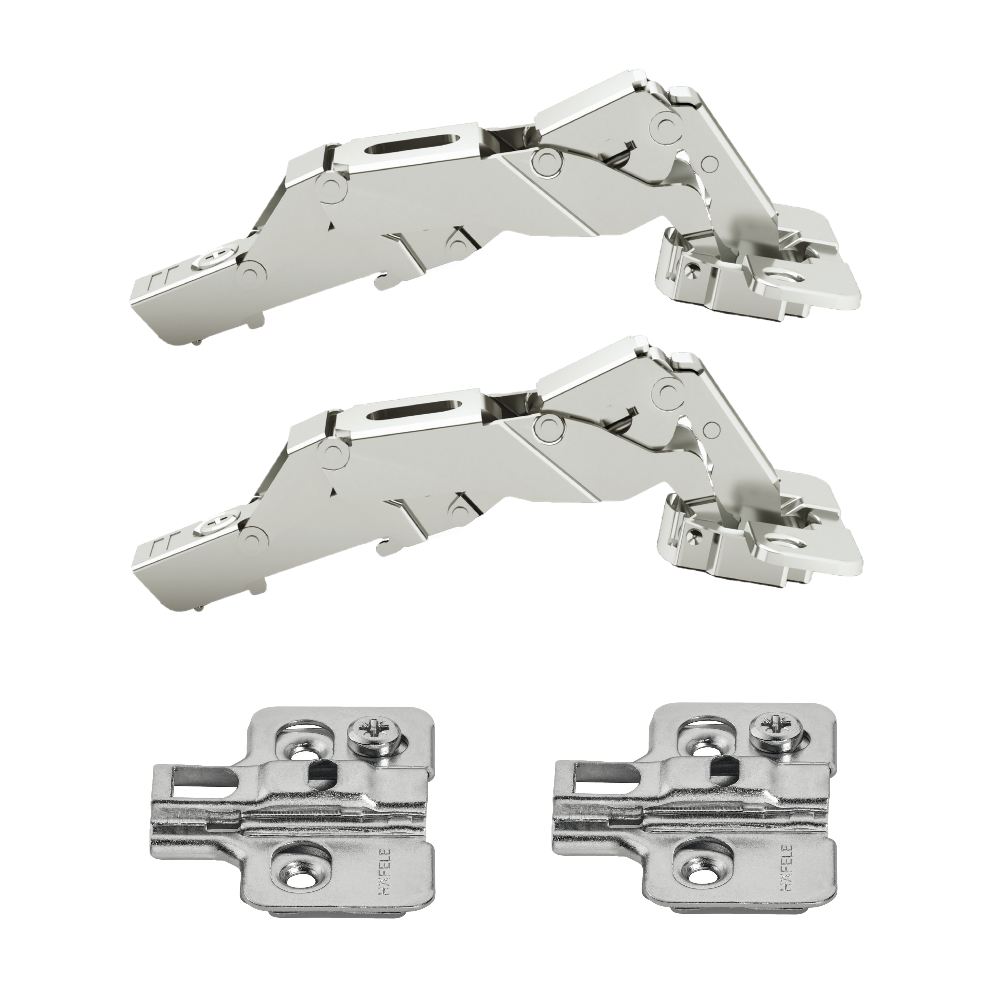

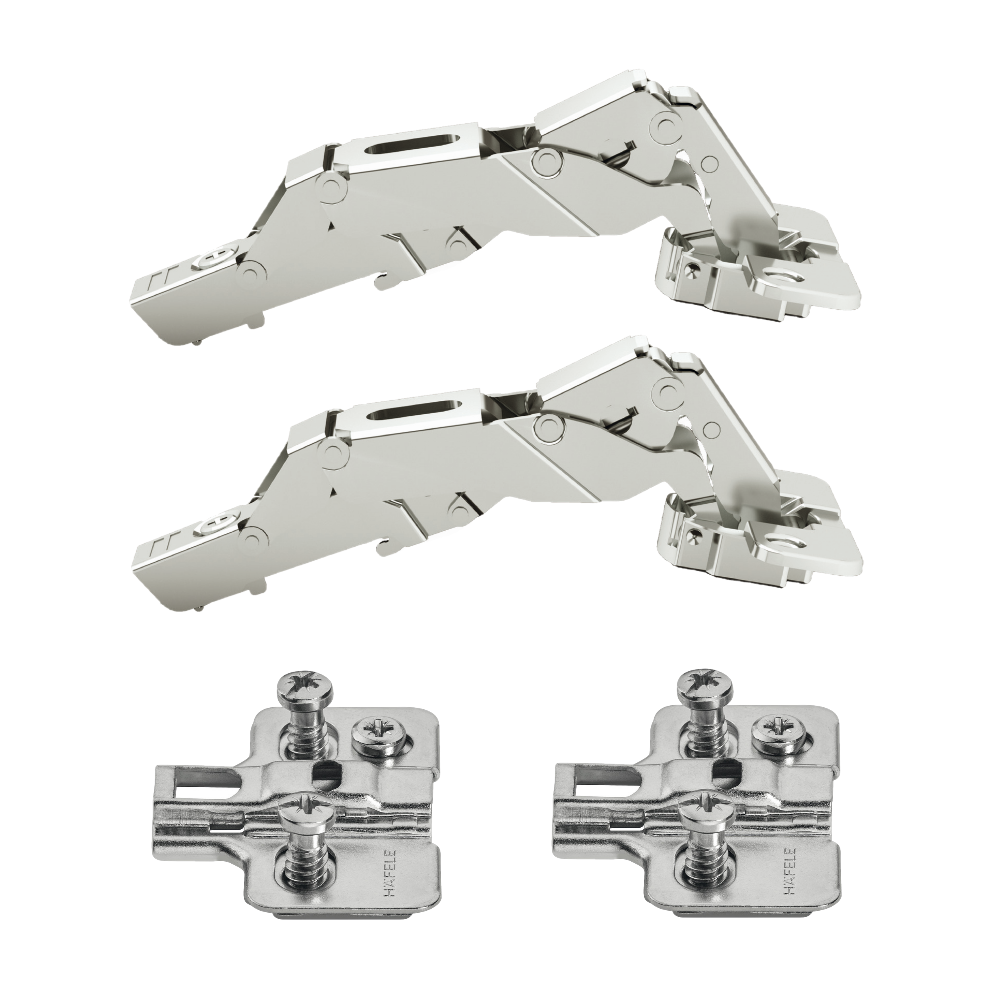

- Set consists of:
2x hinges
2x mounting plates, height 0 mm
wood screws
