Specialist Cupboard Door Hinge, 100 Degree , Grade 304 Stainless Steel, Full Overlay Mounting - Hafele

Specialist Cupboard Door Hinge, 100 Degree , Grade 304 Stainless Steel, Full Overlay Mounting - Hafele

Product code: 327.20.000

£0.00
£16.01
(
£13.34
ex VAT)
Earn160
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

stainless steel

QuantityPrice (inc VAT)
5 - 9£15.19
10 +£13.50
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    With automatic closing spring, Screw fixing

    Version

    Increased corrosion requirements

    Concealed hinge version

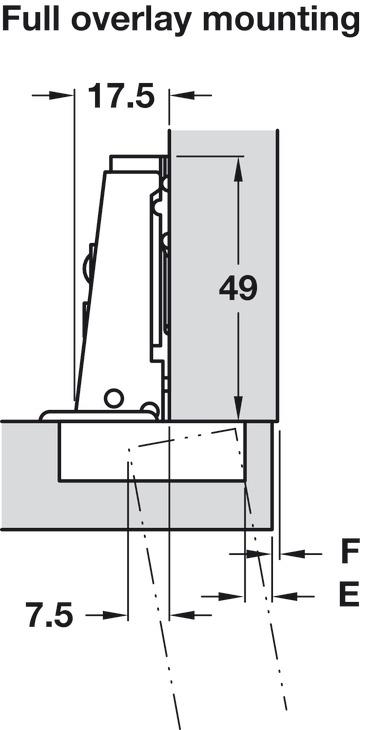

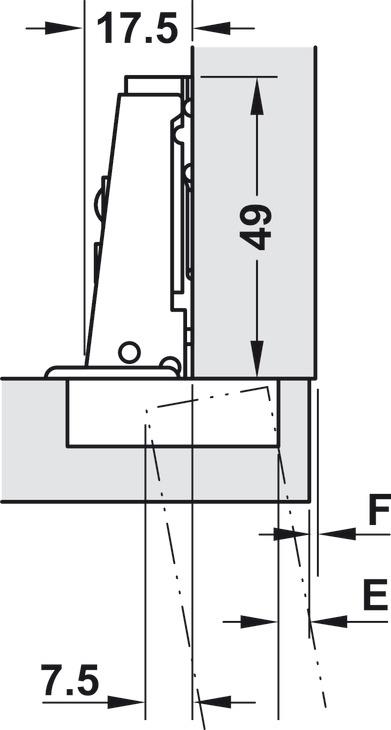

    Full overlay

    Crank type

    Cranked

    For door material

    Wood

    Door processing for assembly

    Cup drilling

    Material

    Stainless steel, quality 1.4301 (V2A)

    Colour/finish

    polished

    Opening angle

    100?

    Cup drilling depth

    11 mm

    Cup drilling ?

    35 mm

    Cup fixing

    For screw fixing

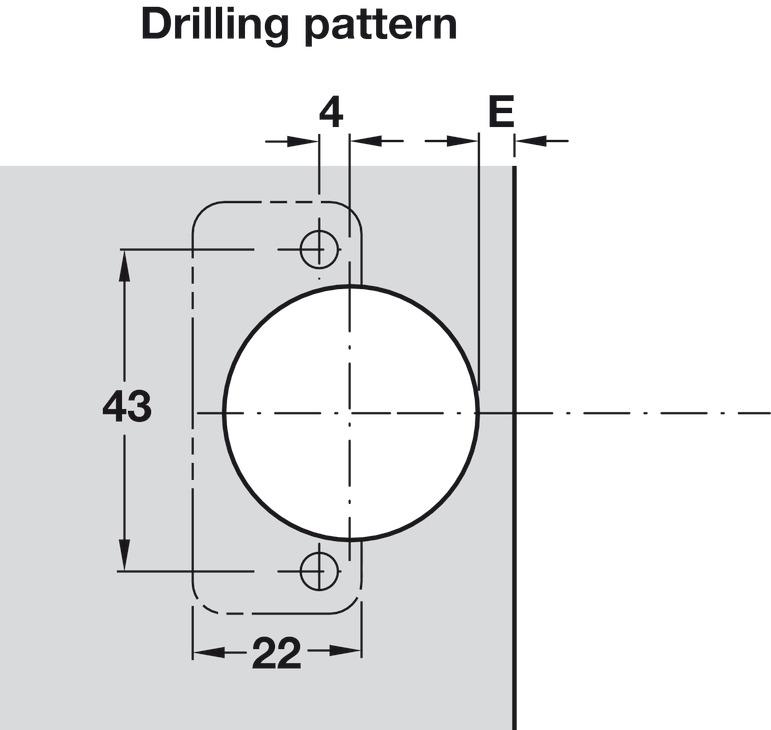

    Drilling pattern

    43/4

    Adjustment facility

    3-dimensional (with appropriate mounting plate)

    Installation

    Door on cabinet with slide-on system


    Takes Metric 3.5mm gauge countersunk screw


    Don't forget to order mounting plate separately- see in related products
