Hafele Metalla 310 - Hinge & Plate Set, 110 Degree Opening - Nickel Plated - Hafele
Product code: 483.02.245
£0.00
£4.03
(
£3.36
ex VAT)
Earn40
reward points
reward points
Please choose from the options below to show product code, price and availability
Bulk Buy Discounts for:
Inline with woodscrews
| Quantity | Price (inc VAT) |
| 50 - 99 | £4.03 |
| 100 + | £3.52 |
Bulk Buy Discounts for:
Cruciform with woodscrews
| Quantity | Price (inc VAT) |
| 5 - 9 | £4.33 |
| 10 - 24 | £4.10 |
| 25 + | £3.65 |
Bulk Buy Discounts for:
Cruciform with euro screws
| Quantity | Price (inc VAT) |
| 5 - 9 | £4.45 |
| 10 - 24 | £4.22 |
| 25 + | £3.75 |
PRODUCT DETAILS
Hafele Metalla 310 Hinge is a concealed cup hinge designed for inset mounting on wooden doors with thicknesses ranging from 14 to 22 millimetres. Known for its durability and smooth operation, this hinge is a great choice for cabinet doors. With a standard 110 degree opening angle, it provides ample access to cabinet interiors.
Set includes 2x full overlay hinges, 2x 0mm plates of choice* & fixings.
*Cruciform plate sets will also include Hafele branded cup and arm cover plates.
- More Information
- For standard full overlay applications
- Opening angle 110 degrees
- 35 mm diameter cup
- Screw fixing cup
- Installation: Door to cabinet with quick fixing system

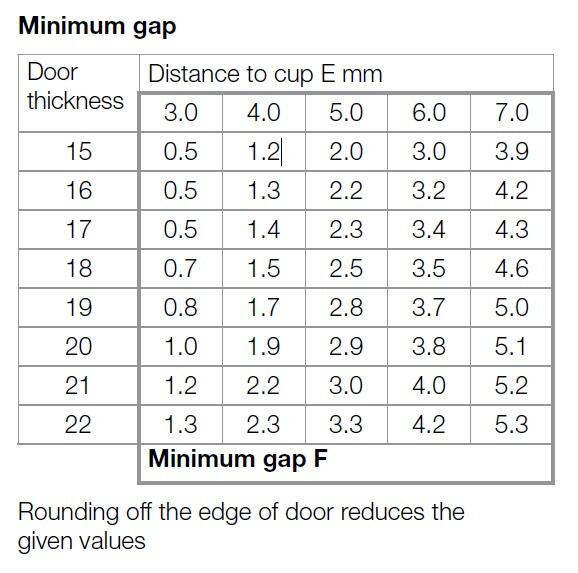

- For door thickness 14-22 mm see table below
- With integrated soft close
- With automatic closing spring
- Adjustment facility:
Side adjustment +-3 mm
Height adjustment +-2 mm (via mounting plate)
Depth adjustment +-2 mm - Nickel plated steel cup and hinge arm

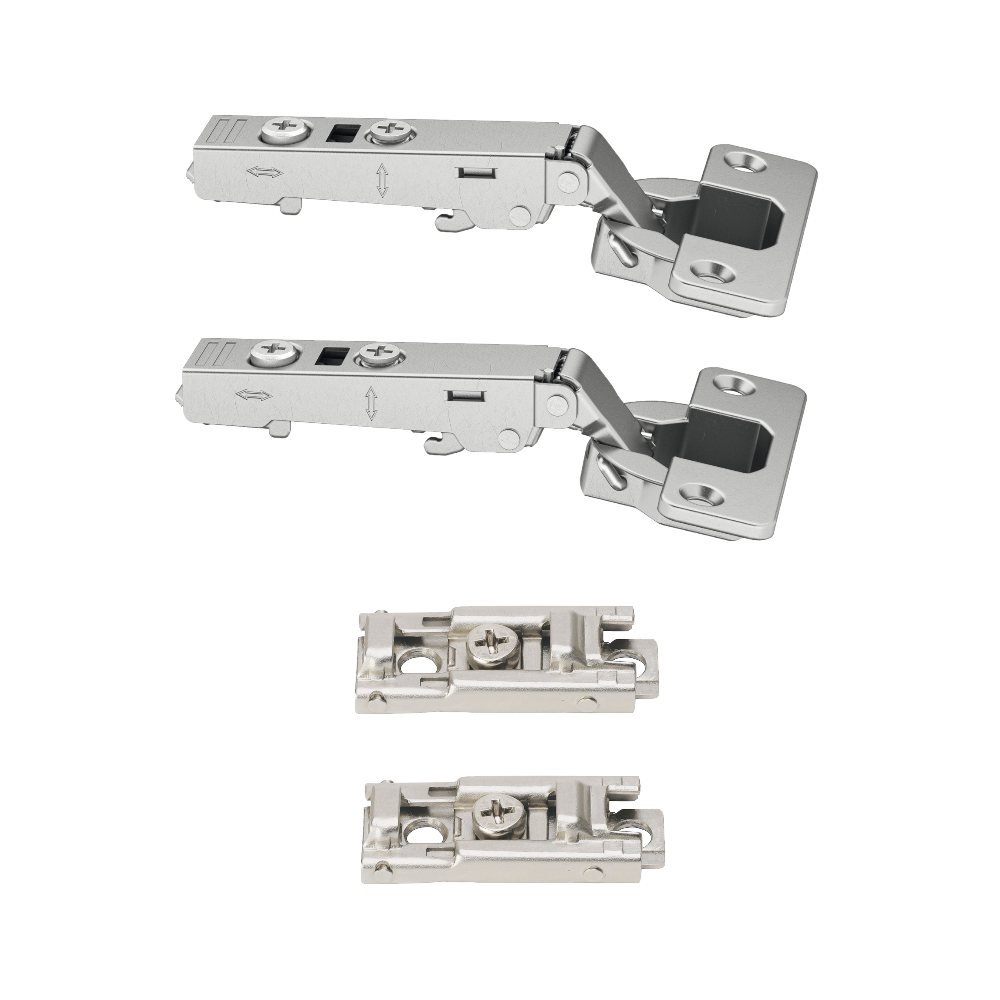

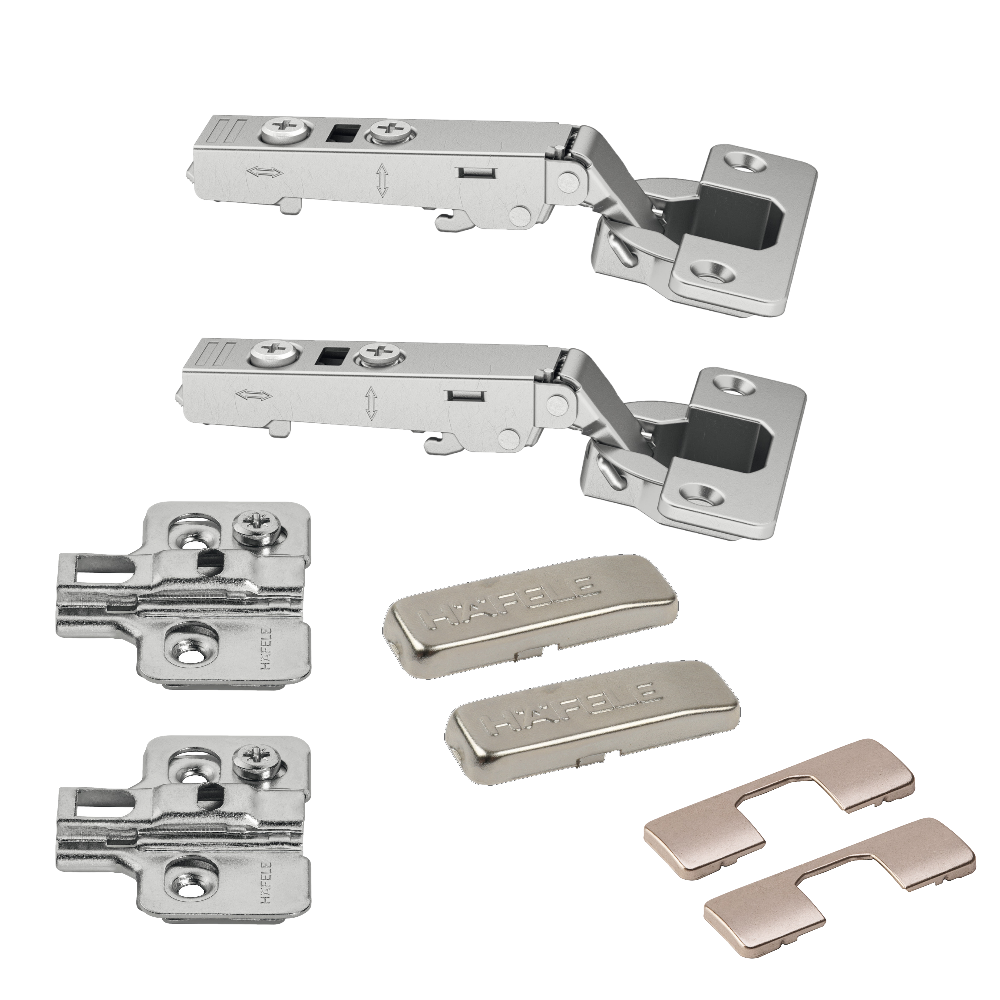

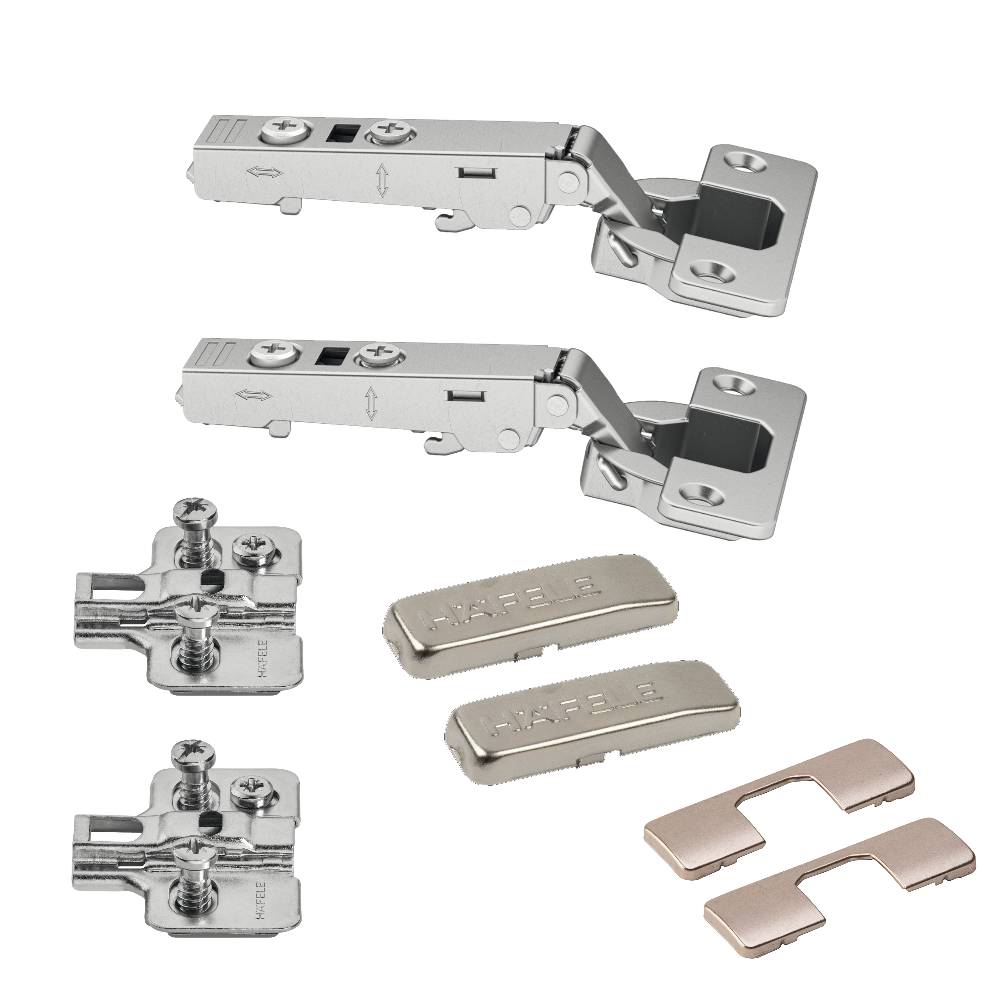

- Set consists of:
2x hinges
2x mounting plates, 0mm height
euro/wood screws
