Tiomos Concealed Cup Hinge For 45 Degree Angle, Inset, 110 Degree, Click On Arm (Without Plate) - Grass Tiomos

Tiomos Concealed Cup Hinge For 45 Degree Angle, Inset, 110 Degree, Click On Arm (Without Plate) - Grass Tiomos

Product code: 348.35.806

£0.00
£13.10
(
£10.92
ex VAT)
Earn131
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

With

QuantityPrice (inc VAT)
5 - 9£12.45
10 - 24£11.79
25 +£10.48

Bulk Buy Discounts for:

Without

QuantityPrice (inc VAT)
5 - 9£13.88
10 - 24£13.15
25 +£11.69
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • Opening angle 110 degree

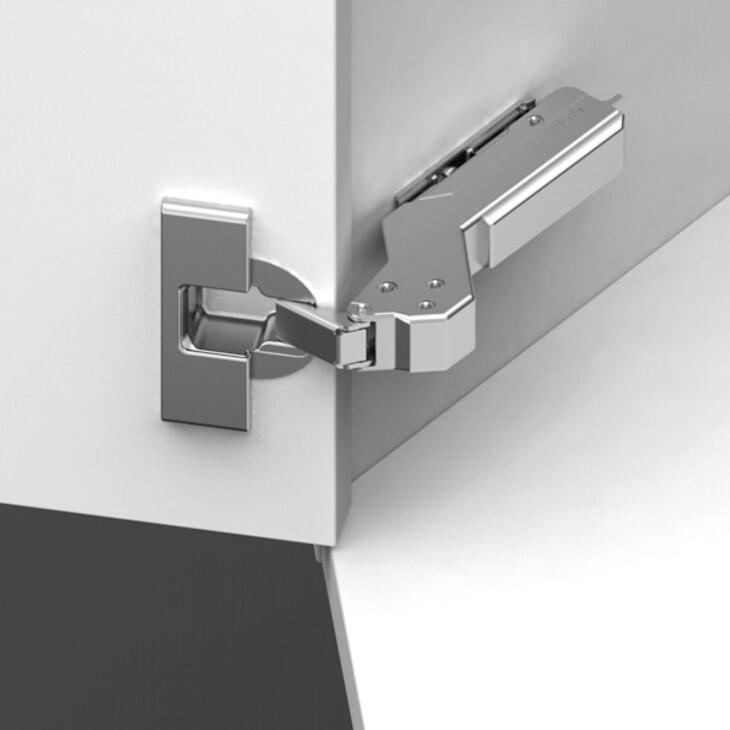

    • For inset applications (where the door sits inside the frame)
    • 35 mm diameter cup
    • For door thickness up to 24 mm (for door thicknesses 22 mm and above, a trial fitting is recommended)
    • Available with or without integrated soft close
    • Screw fixing cup
    • Click on arm
    • Steel cup and hinge arm

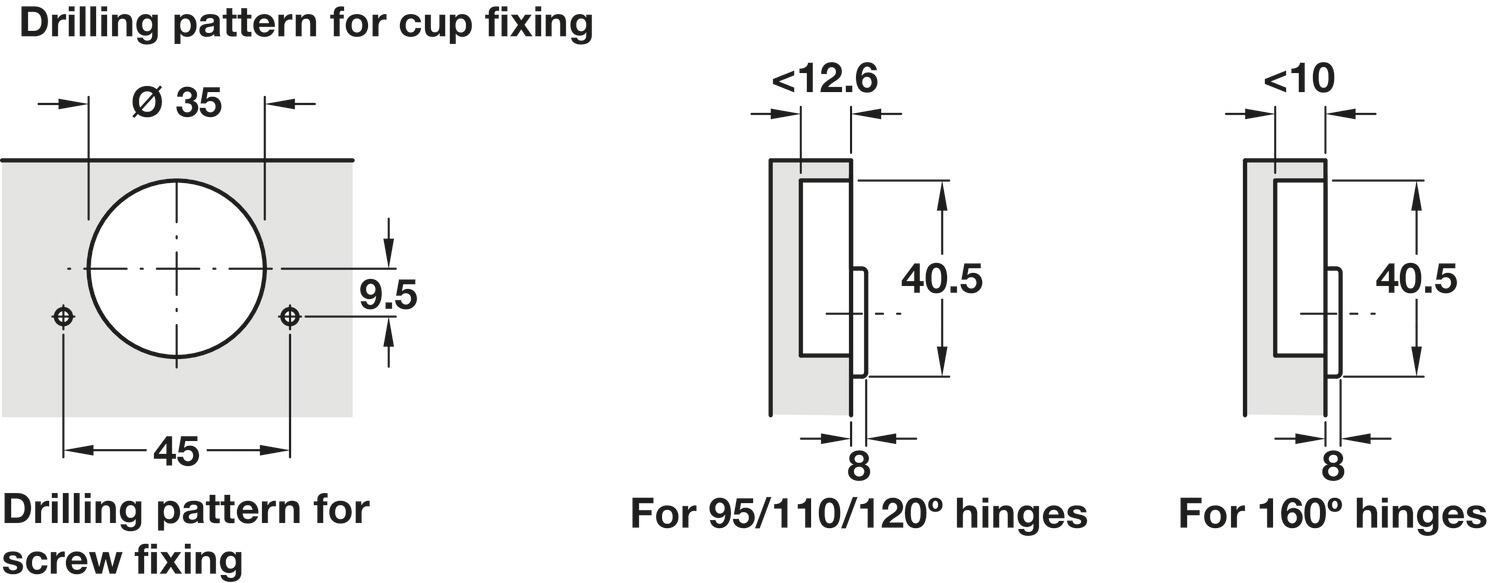

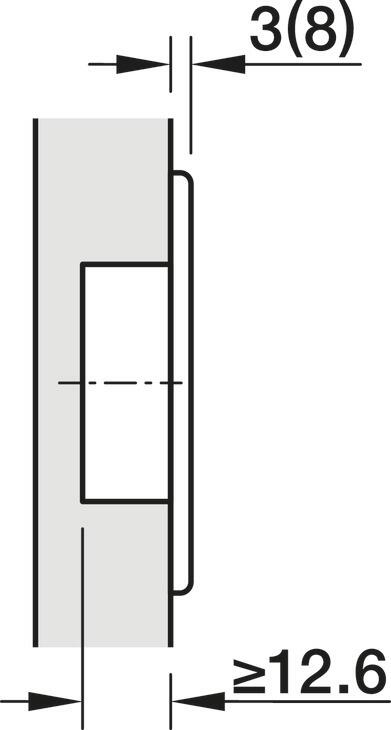

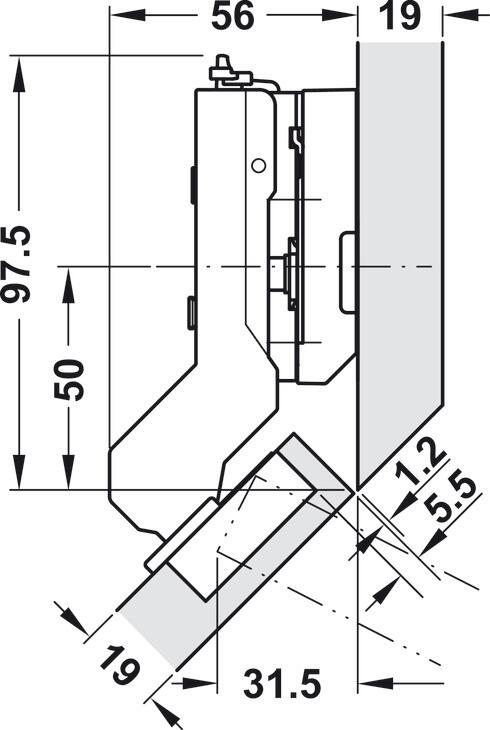

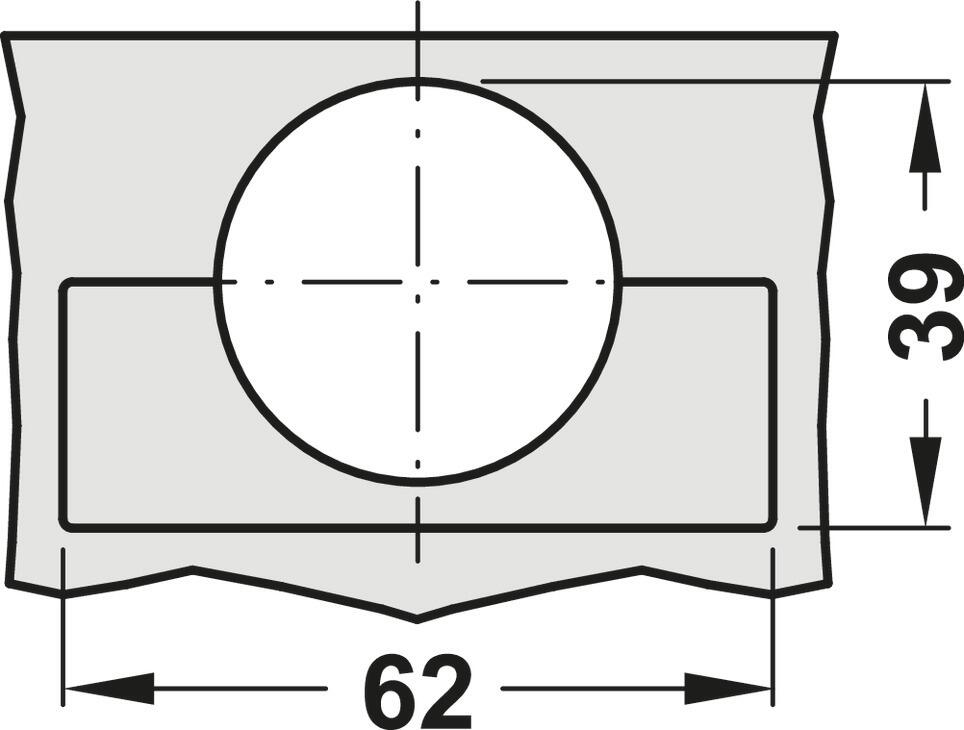

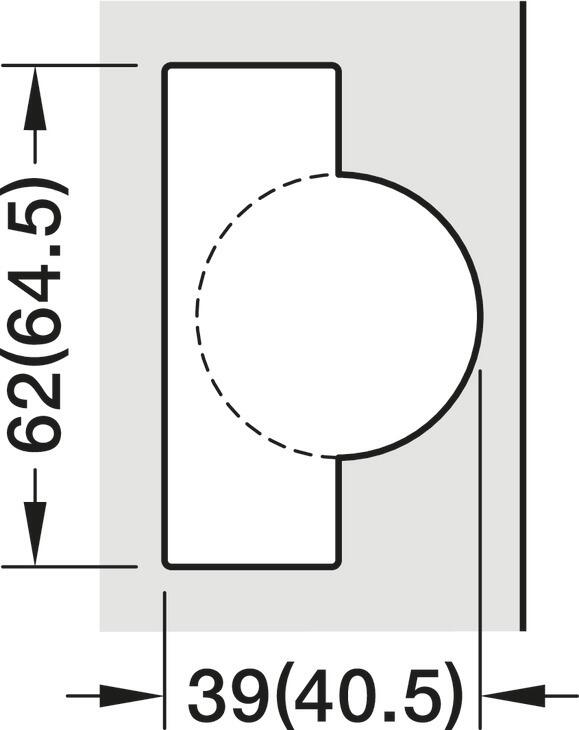

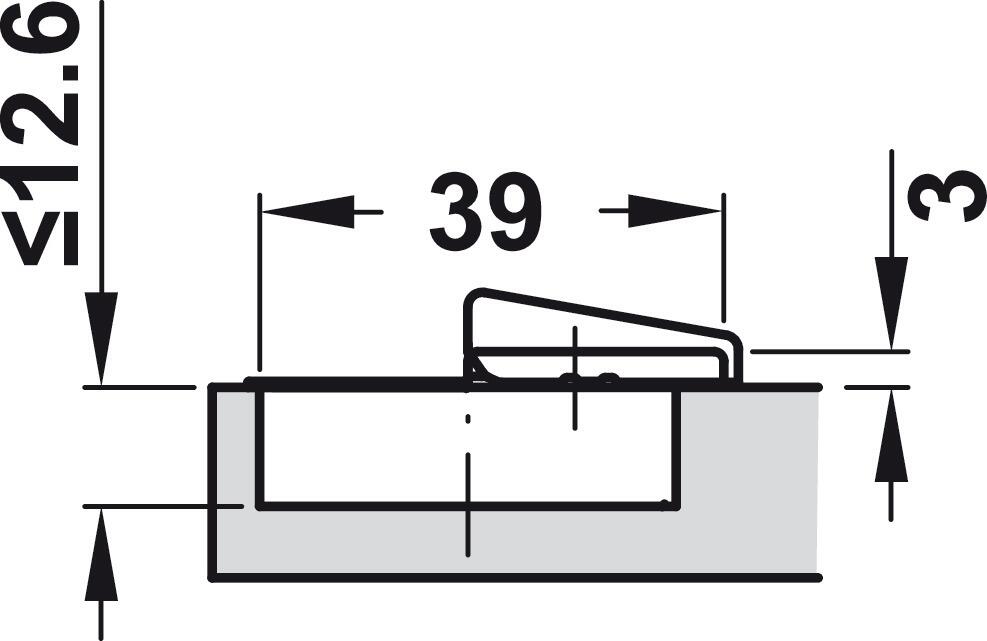

    • Note: Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
    • Order fixing screws separately
    • NOTE: 14mm mounting plate is recommended for inset application
  • Links & Downloads
