Hafele Metalla 310 - Hinge & Plate Set, 110 Degree Opening - Black Nickel - Hafele
Product code: 483.02.246
£0.00
£5.05
(
£4.21
ex VAT)
Earn51
reward points
reward points
Please choose from the options below to show product code, price and availability
Bulk Buy Discounts for:
Inline with woodscrews
| Quantity | Price (inc VAT) |
| 50 - 99 | £5.05 |
| 100 - 249 | £4.42 |
Bulk Buy Discounts for:
Cruciform with woodscrews
| Quantity | Price (inc VAT) |
| 5 - 9 | £5.50 |
| 10 - 24 | £5.21 |
| 25 + | £4.63 |
Bulk Buy Discounts for:
Cruciform with euro screws
| Quantity | Price (inc VAT) |
| 5 - 9 | £5.71 |
| 10 - 24 | £5.41 |
| 25 + | £4.81 |
PRODUCT DETAILS
Hafele Metalla 310 Hinge is a concealed cup hinge designed for inset mounting on wooden doors with thicknesses ranging from 14 to 22 millimetres. Known for its durability and smooth operation, this hinge is a great choice for cabinet doors. With a standard 110 degree opening angle, it provides ample access to cabinet interiors.

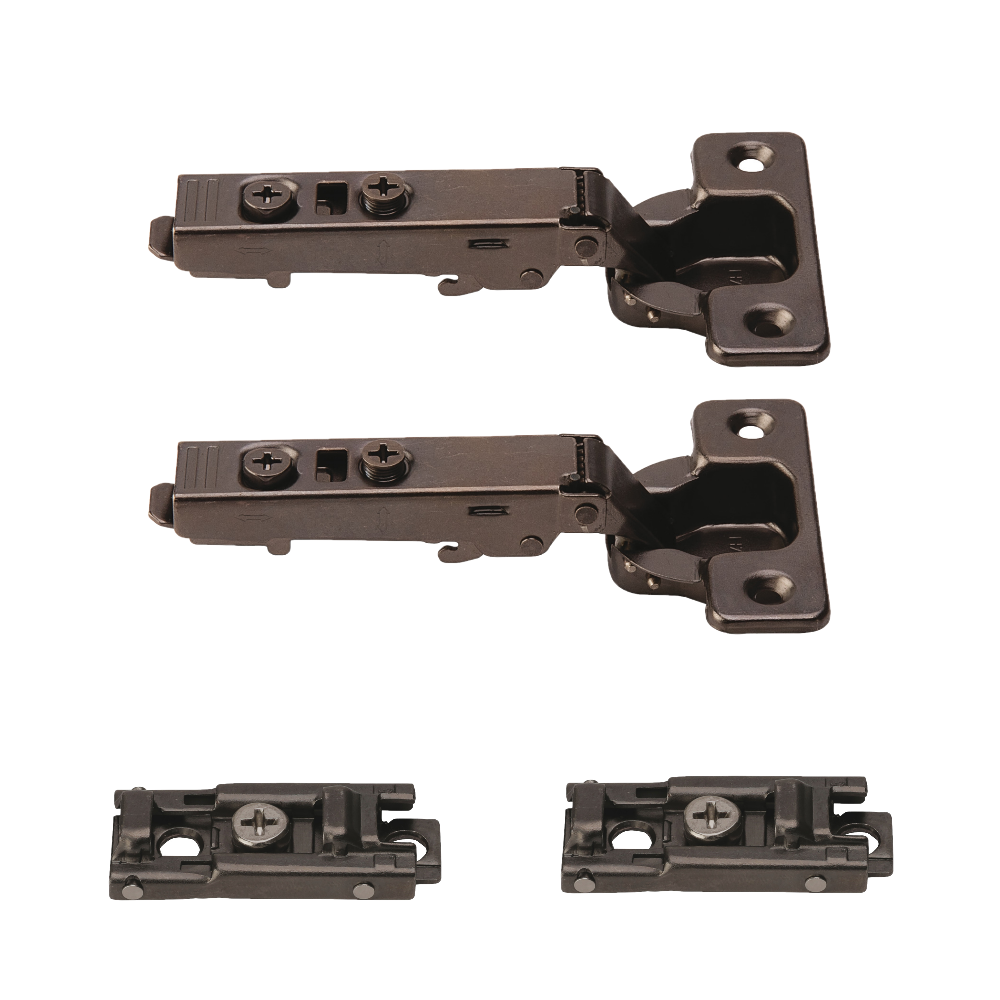

Set includes 2x full overlay hinges, 2x 0mm plates of choice* & fixings.

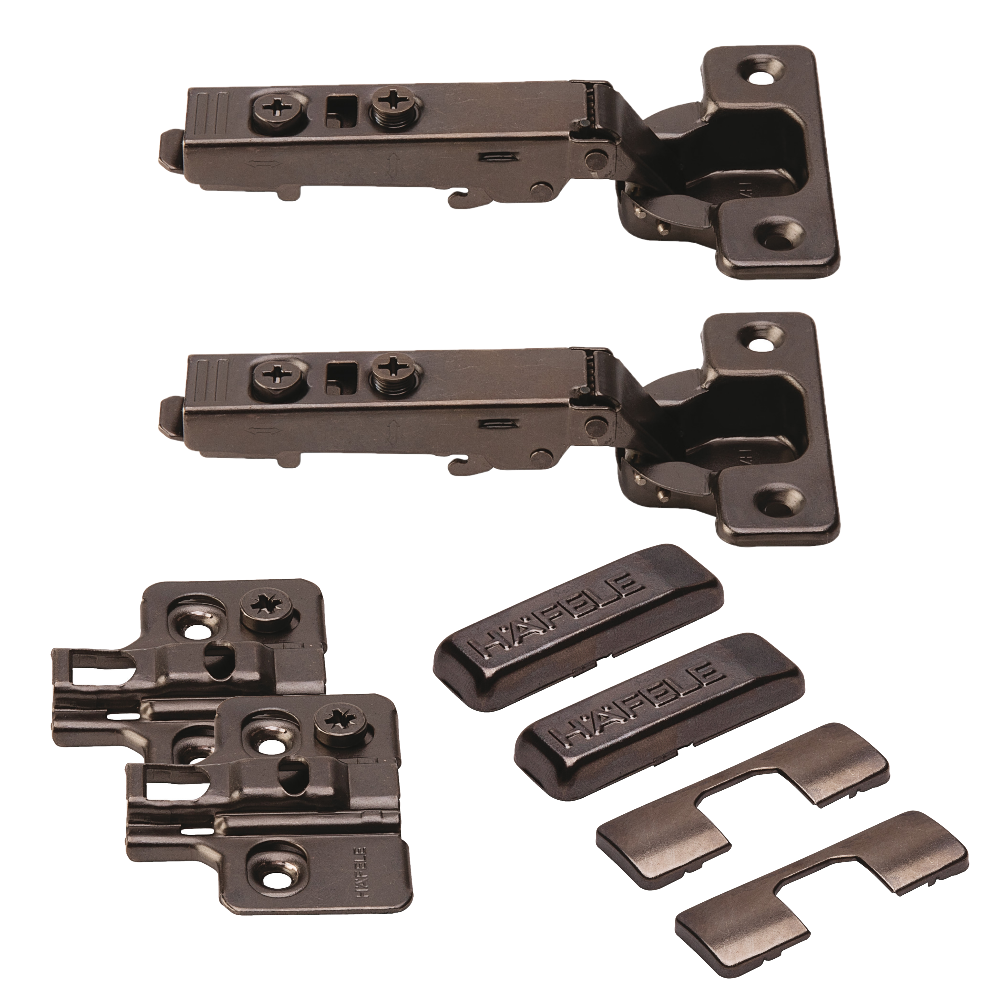

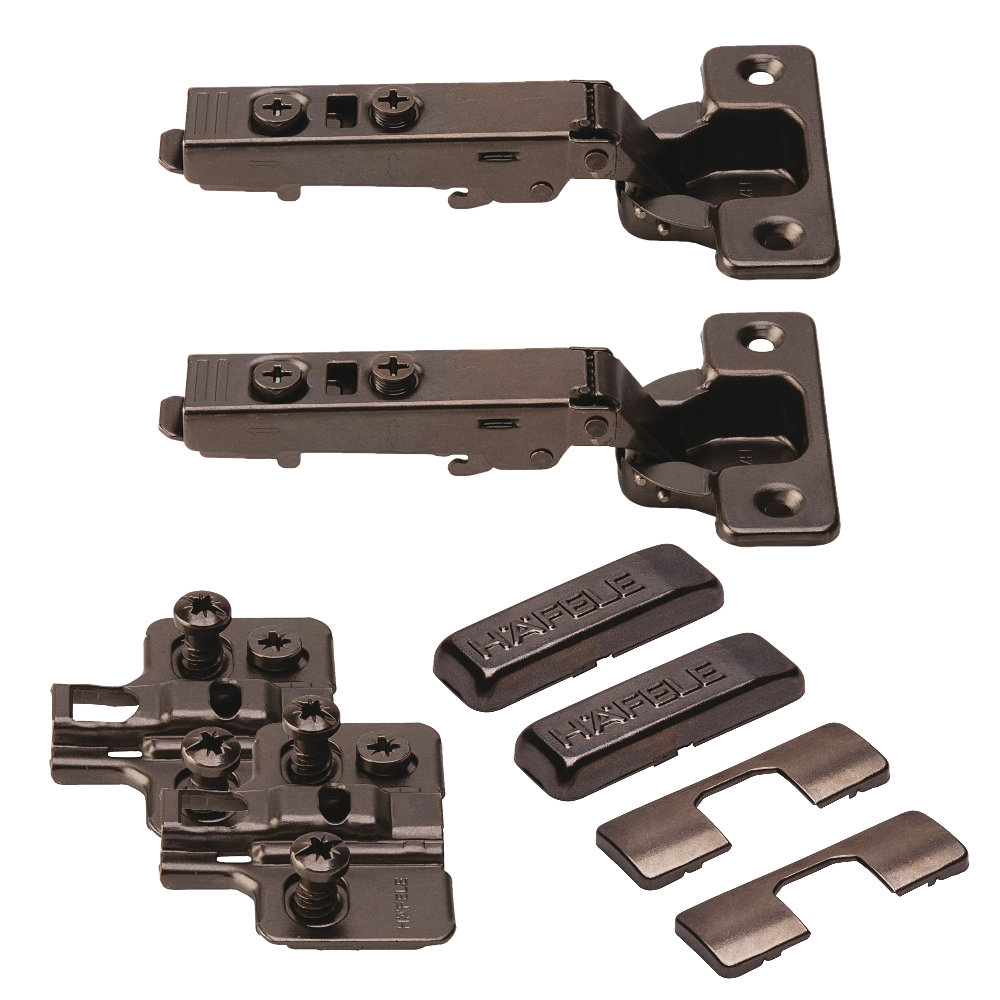

*Cruciform plate sets will also include Hafele branded cup and arm cover plates.
- More Information
- For standard full overlay applications
- Opening angle 110 degrees
- 35 mm diameter cup
- Screw fixing cup
- Installation: Door to cabinet with quick fixing system

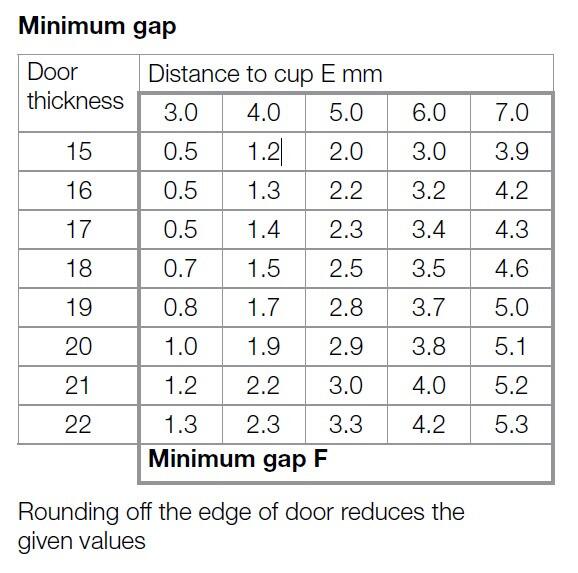

- For door thickness 14-22 mm see table below
- With integrated soft close
- With automatic closing spring
- Adjustment facility:
Side adjustment +-3 mm
Height adjustment +-2 mm (via mounting plate)
Depth adjustment +-2 mm - Nickel plated steel cup and hinge arm
- Set consists of:
2x hinges
2x mounting plates, 0mm height
euro/wood screws
