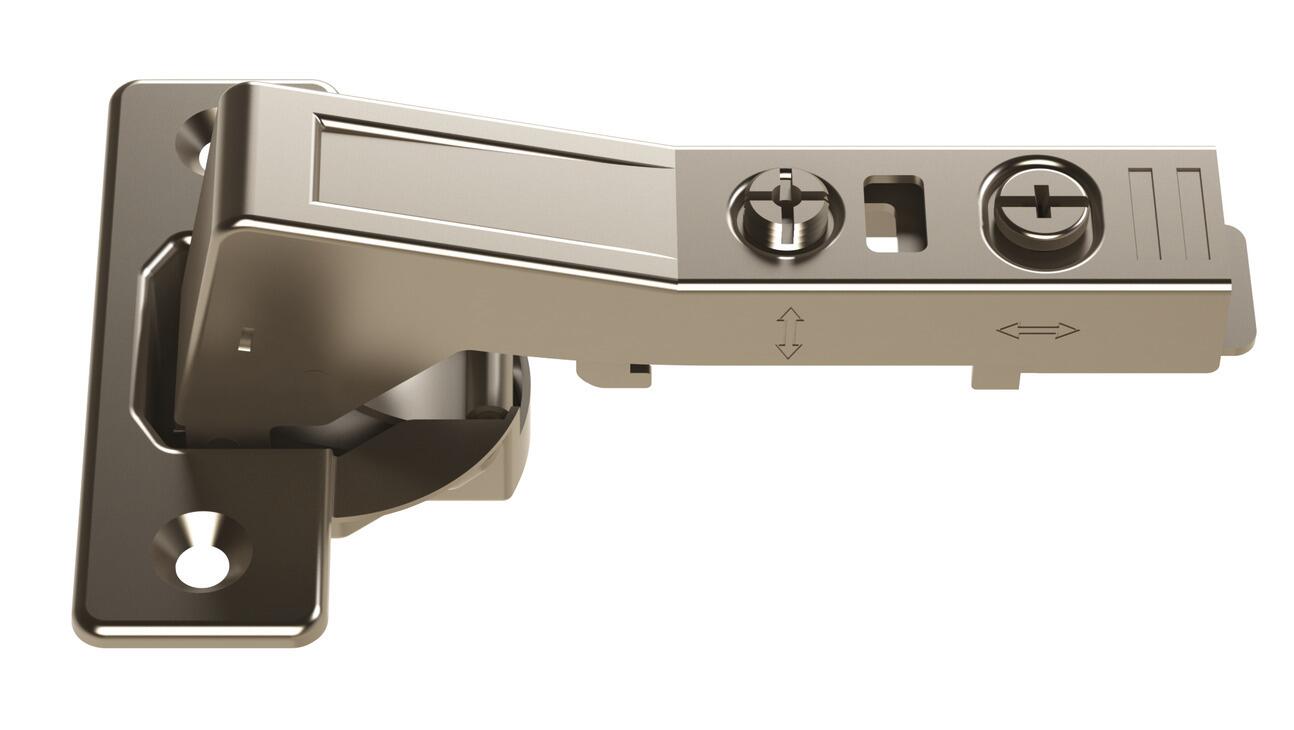

Optimat Caravan/Motorhome Cupboard Hinge, Face Frame Hinges With Screw On Cup / 9072548 - Hettich
Product code: 9072548
£0.00
£3.30
(
£2.75
ex VAT)
Earn33
reward points
reward points
Please choose from the options below to show product code, price and availability
PRODUCT DETAILS
These are stocked items, and are usually available for same day collection - Hettich Optimat Plus 4 FM hinge
- This product is usually held in store (limited stock), so can be collected or despatched same day as ordering (weekdays)
- Frequently used in motor homes, caravans, mobile home cupboard doors
- Suitable for all frame widths
- Quality classification under EN 15570, Level 1
- For door thicknesses from 13 mm
- Cup diameter: 35 mm
- Cup depth: 11 mm
- With sprung self closing feature (not soft closing)
- Door overlay: at least 37 mm (hinge arm flush with the edge of the frame)
- Cup distance: 2.5 mm
- Overlay adjustment: + 1.5 mm / - 1.5 mm
- Height adjustment: + 2 mm / - 2 mm
- Steel nickel plated
- Fixings not included
- Door application: overlay
- Opening angle: 110 degrees
- Overlay: 37
- Overlay in.: min. 1 7/16"
