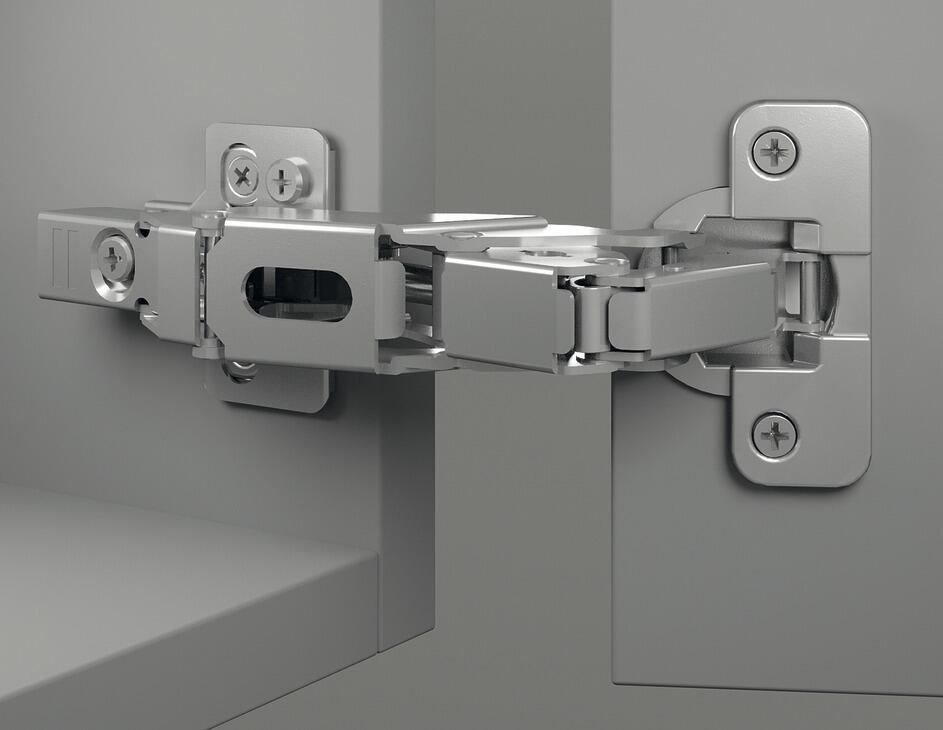

Hafele Metalla 310 Full Overlay Concealed Cup Hinge, 155 Degree, For Up To 24 Mm Thick Doors - Hafele Metalla

Hafele Metalla 310 Full Overlay Concealed Cup Hinge, 155 Degree, For Up To 24 Mm Thick Doors - Hafele Metalla

Product code: 311.63.731

£0.00
£2.40
(
£2.00
ex VAT)
View video
Earn24
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

With soft close

QuantityPrice (inc VAT)
50 - 99£2.40
100 - 249£2.10

Bulk Buy Discounts for:

Without soft close

QuantityPrice (inc VAT)
5 - 9£2.44
10 - 24£2.32
25 +£2.06
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For cabinet with internal pull outs or extending trays
    • Opening angle 155 degrees
    • 35 mm diameter screw fixing cup
    • Zero protrusion
    • With integrated soft close and automatic closing spring
    • Fixings not included (3.5mm diameter countersunk screws required)
    • Mounting plate not included (please see Related Products below)

  • More Information
    • Installation: Door to cabinet with quick fixing system

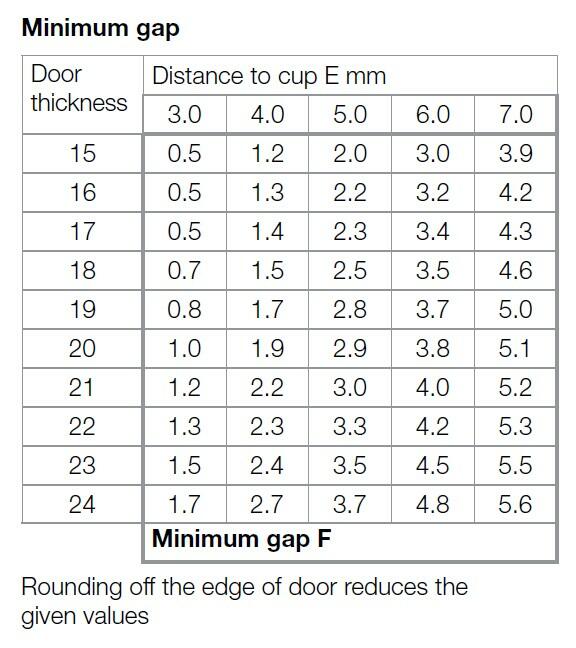

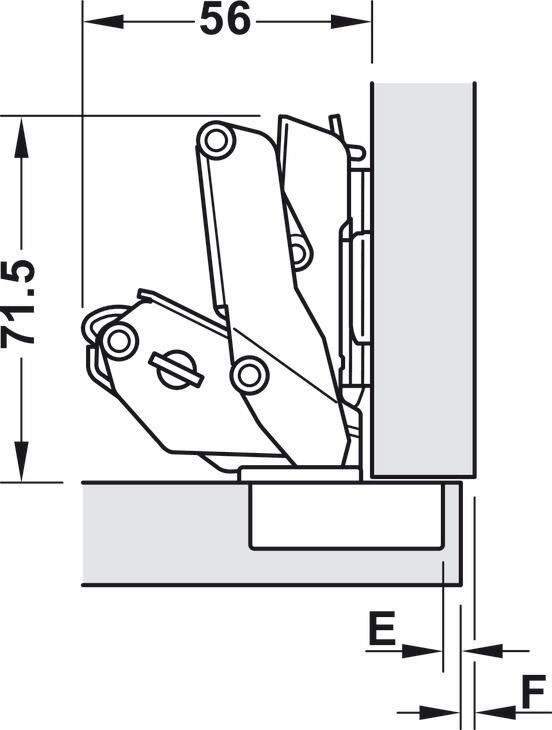

    • For door thickness 14-24 mm see table below
    • Adjustment facility:
      - Side adjustment +/-2.5 mm
      - Height adjustment +/-2 mm (via mounting plate)
      - Depth adjustment +/-2 mm
    • Nickel plated steel cup and hinge arm
    • Screw fixing cup
    • Drilling pattern: 48/6
    • Requires 3.5mm diameter countersunk screws (fixings not supplied)
    • 25 year guarantee
    • Pack size: 1 hinge
