Lid Stay With Quick Mounting Angled Foot - Hafele
Product code: 365.31.300
£0.00
£22.97
(
£19.14
ex VAT)
Earn230
reward points
reward points
Please choose from the options below to show product code, price and availability
Bulk Buy Discounts for:
Black
| Quantity | Price (inc VAT) |
| 2 - 4 | £21.82 |
| 5 - 9 | £20.67 |
| 10 + | £18.37 |
PRODUCT DETAILS
Hafele Automatic Opening Lid Flap Stay
- Opening angle 90 degrees
- With quick mounting angled foot
- Unhanded design

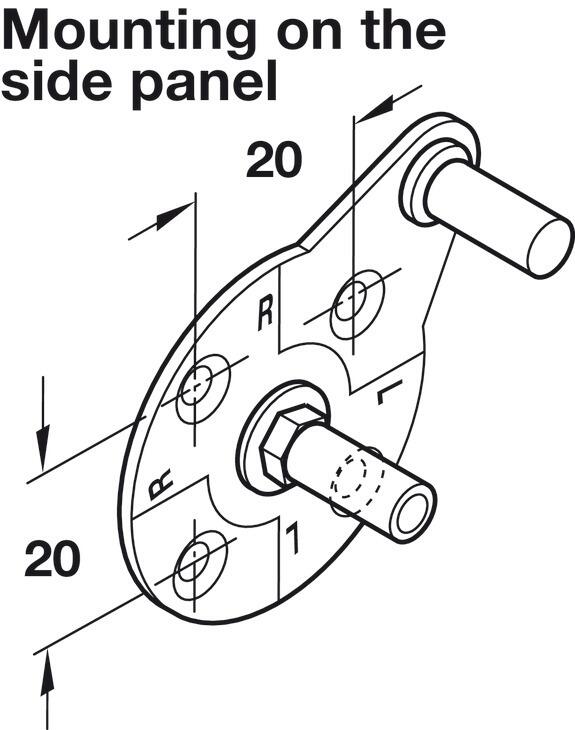

- For screw fixing, at angular bracket for plug fitting (quick fixing system)
- Nickel-plated steel lid stay with plastic housing
Set includes
1x Stay
FixingsConcealed cabinet hinges of a suitable angle required

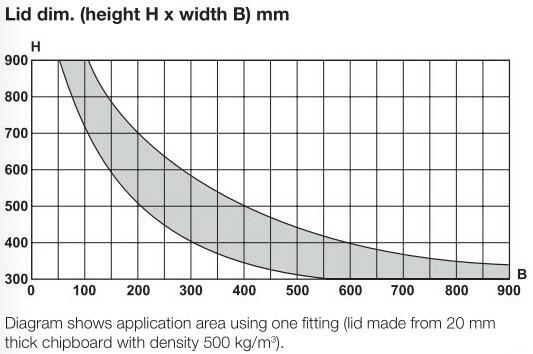

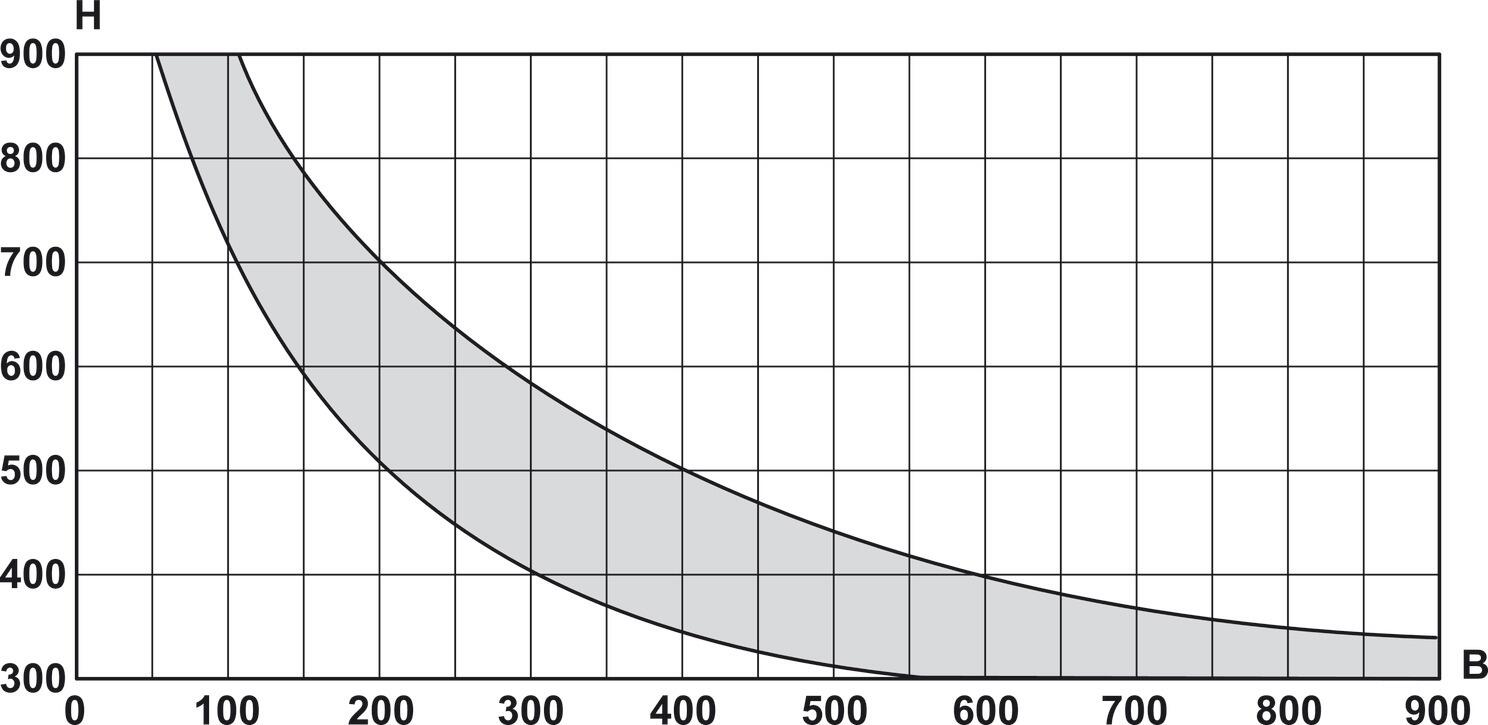

Table for selecting the right model based on cabinet height and flap weight. We recommend to use the stronger fitting model when in doubt.
Links & Downloads Installation Instructions Online Catalogue
