PRODUCT DETAILS

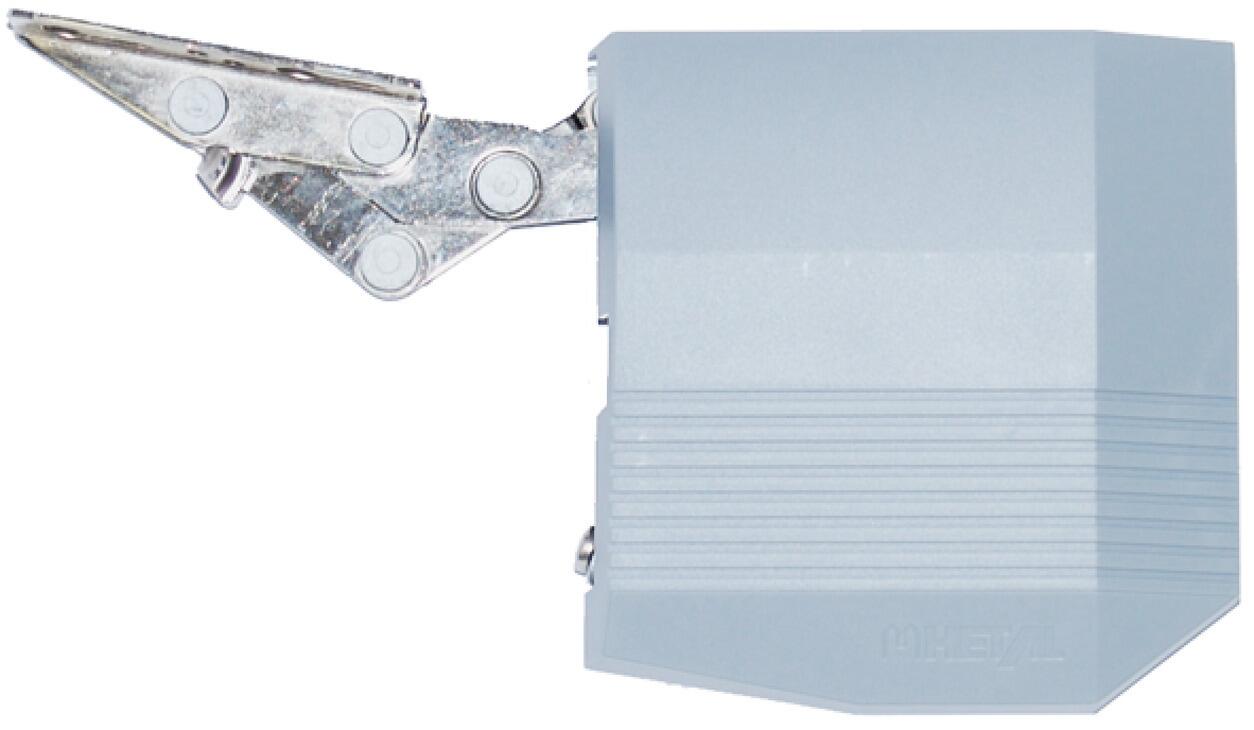

Grass Kinvaro T-65 & T-70

• For top box units In kitchens
• Not suitable for Inset doors
• No concealed hinges required for top panel
• Allows additional cabinet installation above
• With narrow fixing bracket for framed doors
• Spring-assisted action for easy opening: Different springs Included to allow for many different door panel weights and sizes
• For flap weight: 0.7 to 8.5 kg
• For flap width: 450-1000 mm
• For flap height: 283-450 mm
• Integrated, adjustable damped action gives quiet, gentle closing
• Variable opening angle, holds the flap securely at any opening postilion from 45 to 100 or 110 degrees

Set includes
1 pair galvanised steel fittings, 1 pair grey RAL 7045 cover caps, 2 yellow galvanised steel springs, fixings for carcase side wall and fitting instructions

Order fixing screws separately
When using with a bar handle please trial mount first

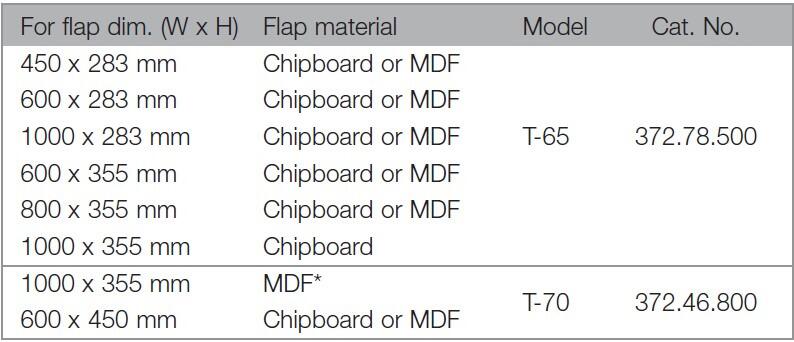

Sample measurements table for selecting the right model based on cabinet height and flap width. We recommend to use the stronger fitting model when in doubt.
