Can be used as:
Free Flap H 1.5 Push-to-Open - Handle free application, mounting version for automatic complete opening
Free Flap H 1.5 Touch Opening - Handle free application, mounting version for opening the flap slightly, with multi position stop
Free Flap H 1.5 Handle Mounting - Application with handle mounting version for power assisted opening of flap

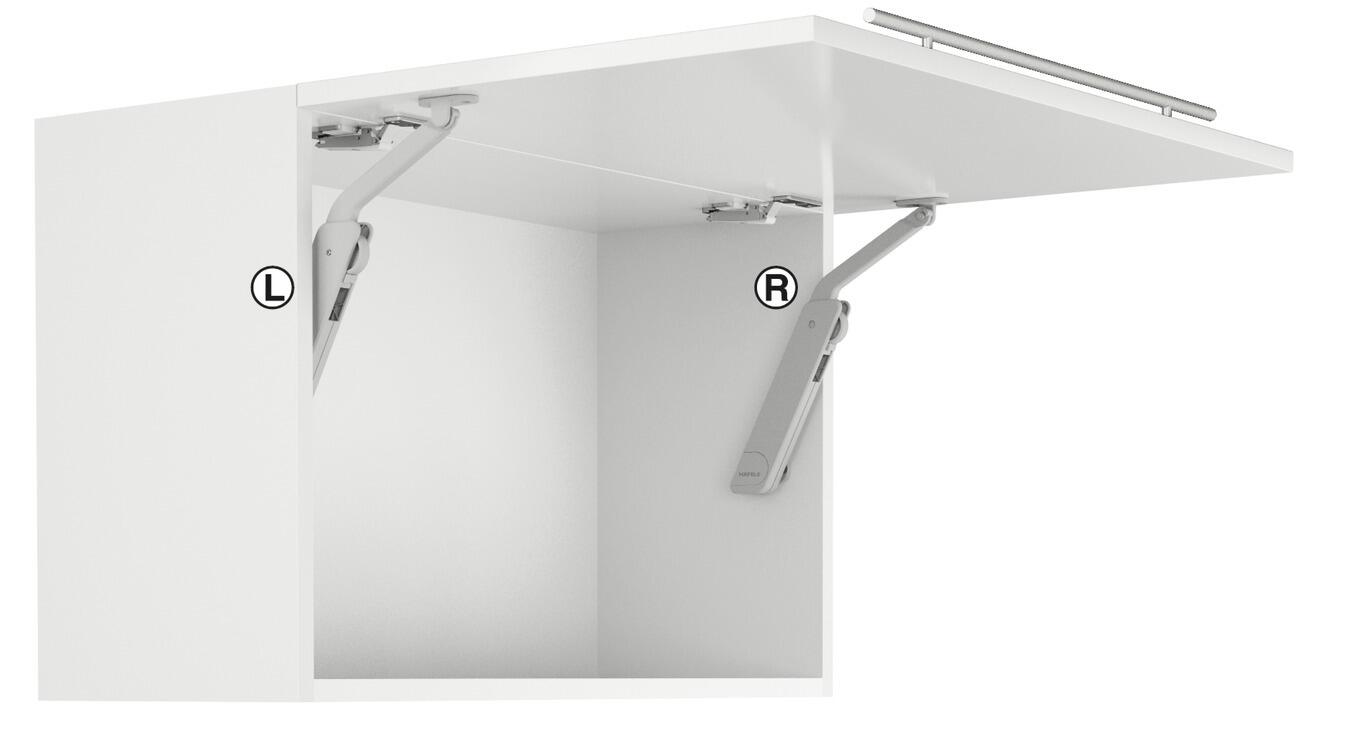

• Handed design
  Clip-mounting on pre-mounted screw fixing bracket included, no tools required
  Use two Free Flap 1.5 fittings for cabinet width of 600 mm and above

For additional measurements table, please see catalogue page

Application;-For one piece flaps made of wood, with aluminium or all-glass front panels

Version:-Single set for one-sided use

Material:-Plastic

Colour/finish:-Metal supporting arm: nickel plated

Cover colour:-Grey

Lid material:-Wood, Glass, Aluminium frame

Flap type:-one-piece

Opening angle;-75 – 110 degree

For cabinet height:-275 – 600 mm

For lid weight:-≤10.9 kg, note sample measurements table

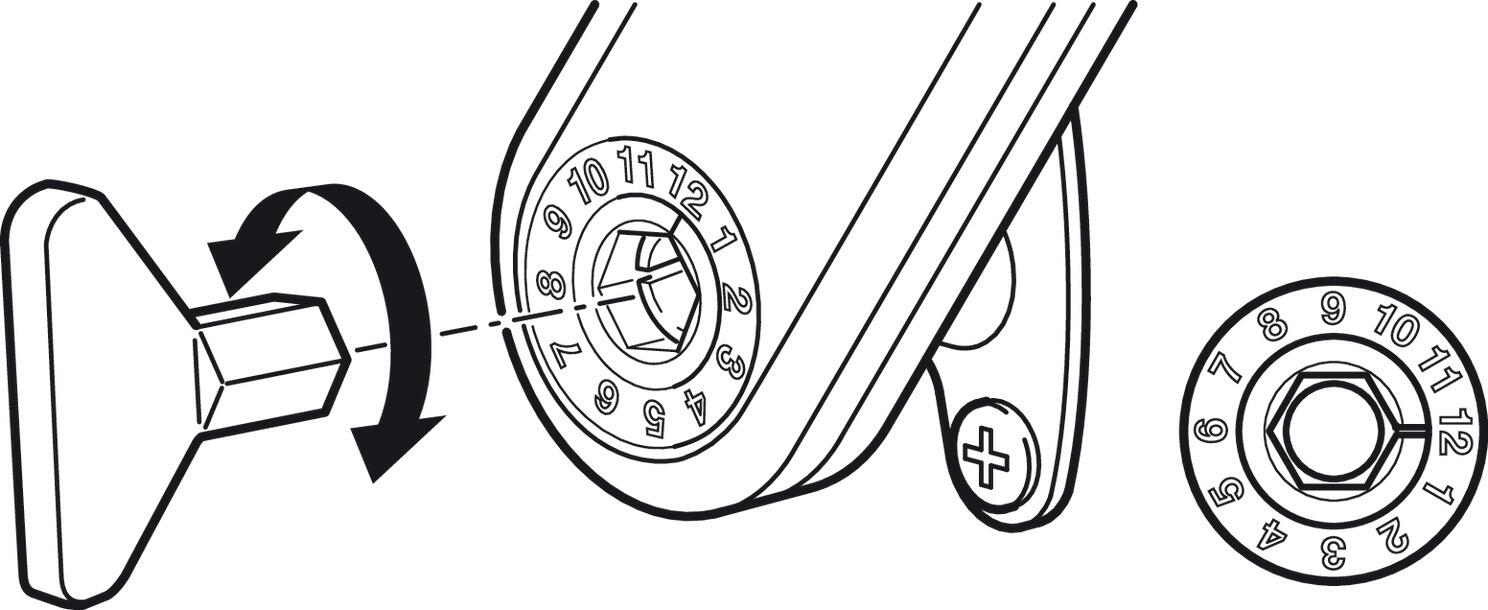

Adjustment facility:-Holding power adjustment

Installation:-Screw and clip fixing

Hafele Lifetime Guarantee:-25 years

Once stock reaches 0 replacement model is part number 372.28.601
