PRODUCT DETAILS

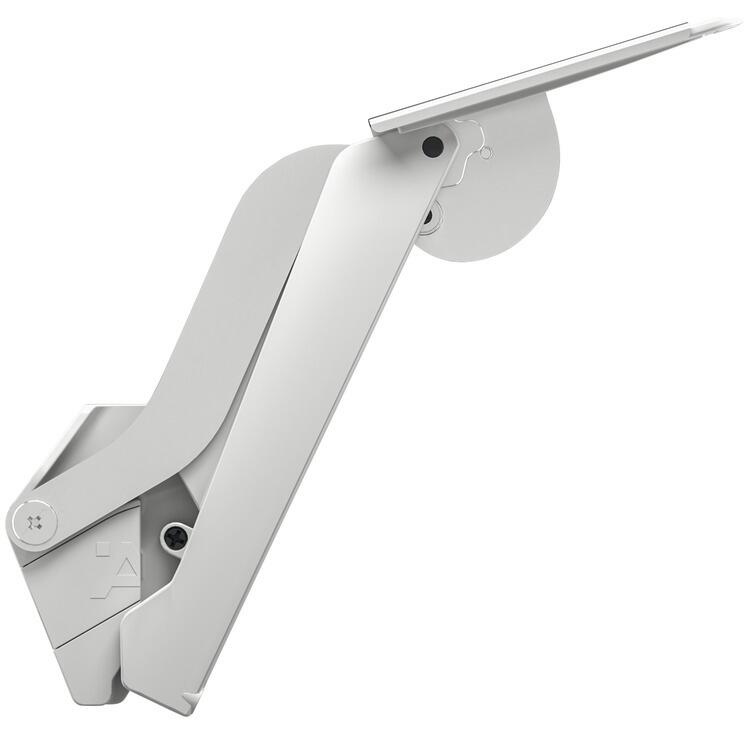

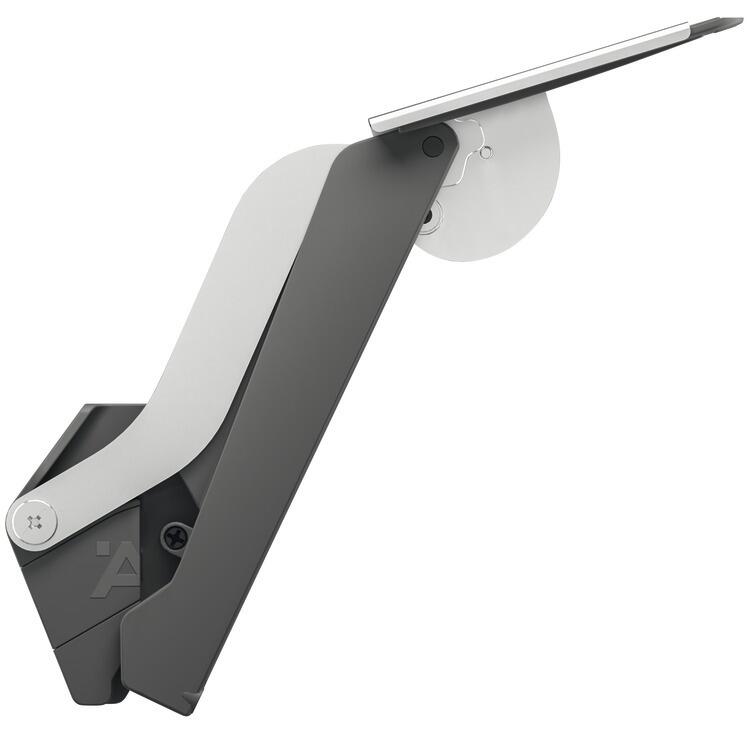

Hafele Free Space - Stay Flap Fittings

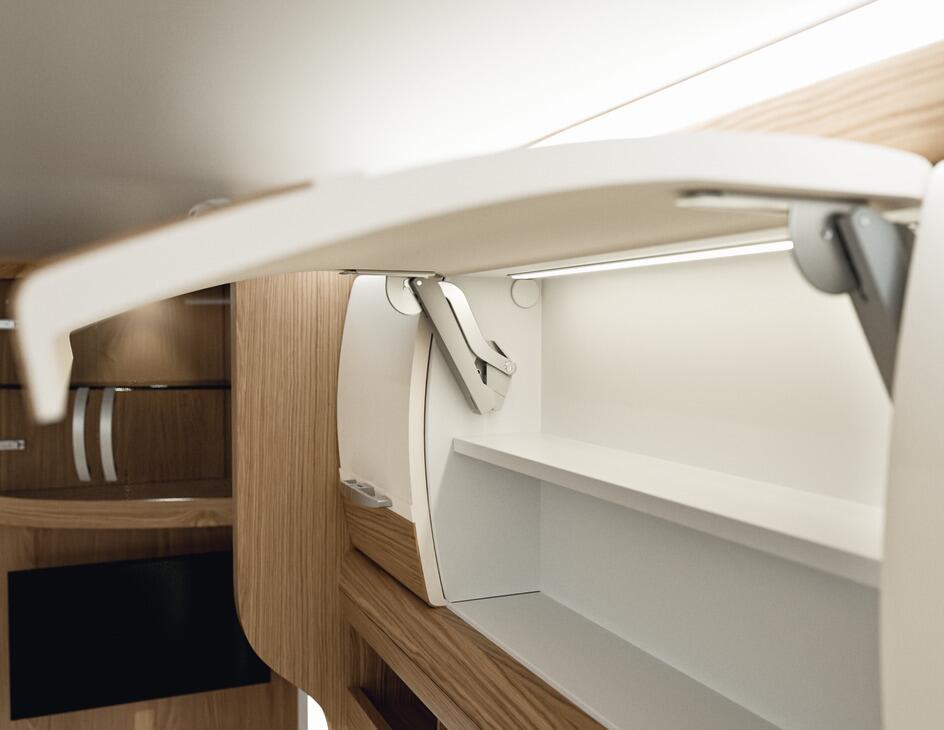

• Hinge-less stay flap fitting for more free room in all respects
• Extremely powerful: A product series for the majority of the most common flap sizes and weights
• Extremely compact: Minimal appearance and more storage space in the furniture
• Extremely gentle running characteristics making it a pleasure to use
• Extremely fast and time-saving processing
• Extremely adaptable: Four standard colours and a product version for handle-free applications

Free Space 1.11

• For one-piece flaps made of wood or with aluminium frame, from frame width 45 mm
• Area of application: For standard stay flap applications with front height up to 650 mm

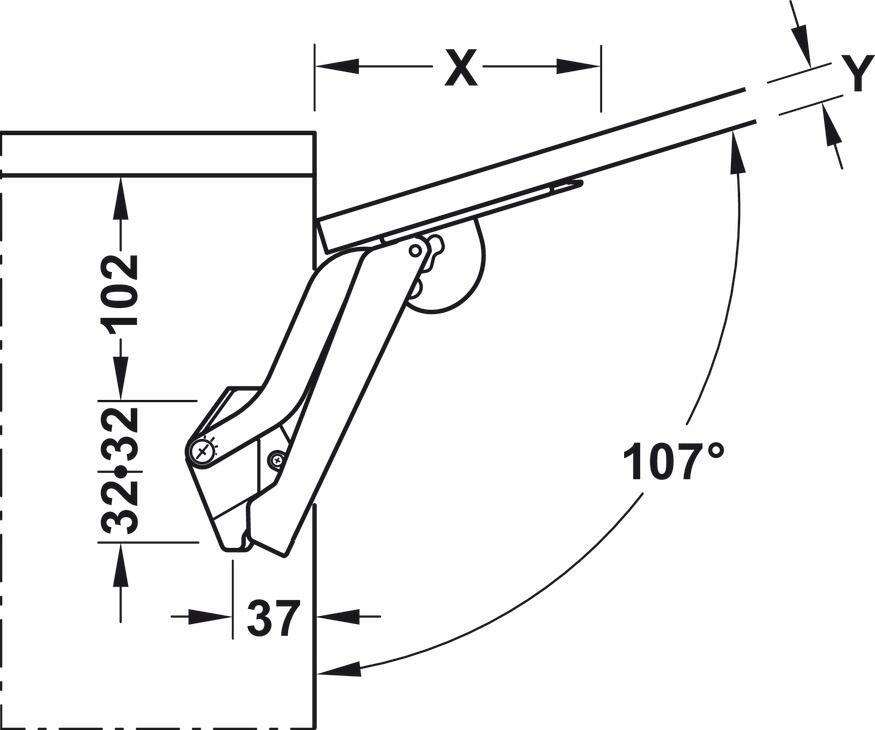

• Opening angle: 90 or 107 degree (adjustable)

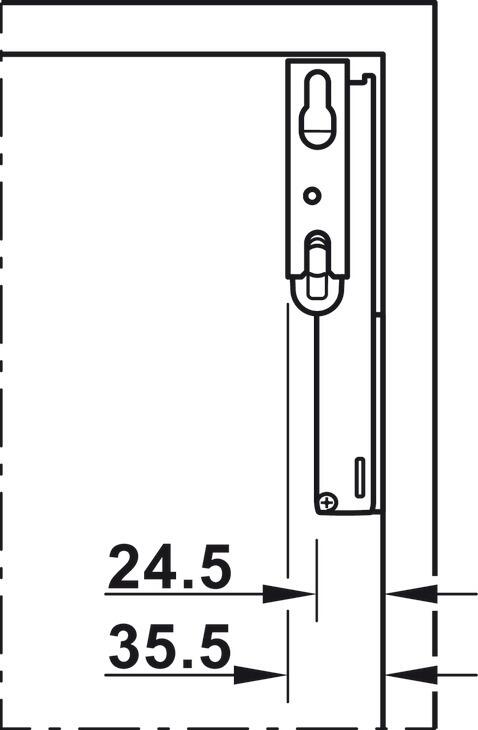

• Installation: Fitting for screw fixing with pre-mounted Euro screw, front panel fixing without tools, for sliding onto pre-mounted fixing screws
• Adjustment facility: Height +2mm, side +1.5 mm, tilting angle +2 mm, holding power

Set includes
1 stay flap fitting set (1 piece each left/right)
4 fixing screws for front panel
1 set of installation instructions with paper drilling template for side panel

Material: Plastic housing, steel front fixing bracket and support lever

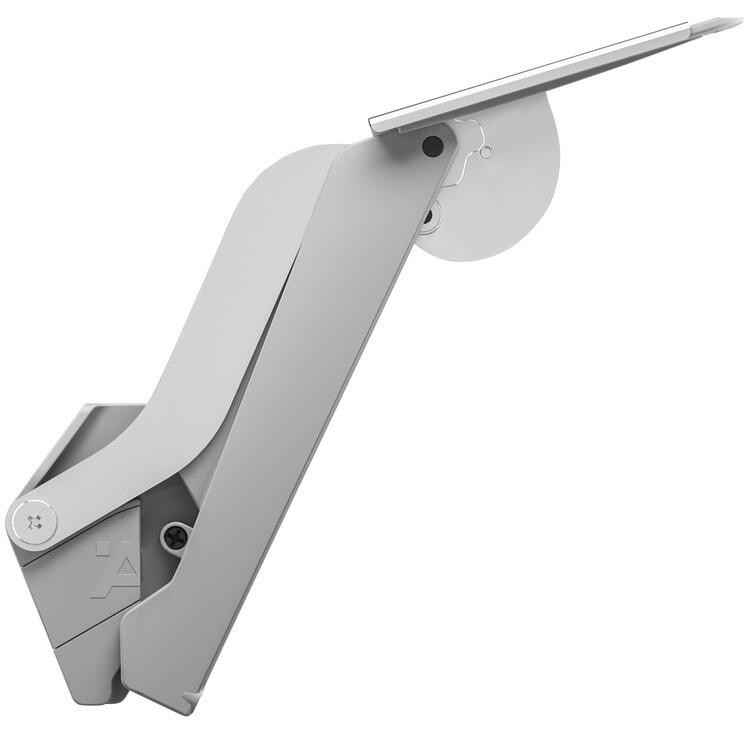

Finish/colour: Nickel plated front fixing bracket and support lever. White, light grey or anthracite housing

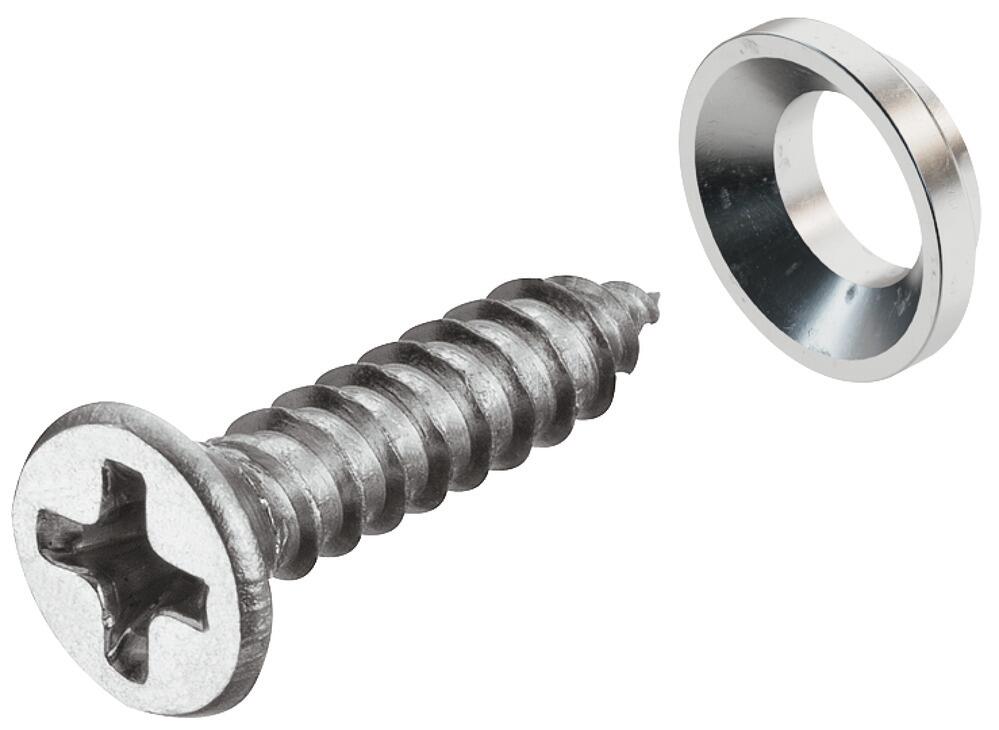

• If using aluminium frame front panels (from frame width 45 mm), please order suitable screw set 372.27.600 (see Related Products below)

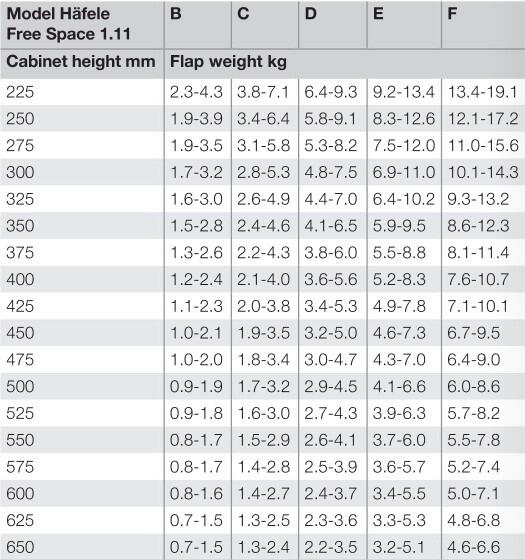

Sample measurements table for selecting the right model based on cabinet height and flap weight. We recommend to use the stronger fitting model when in doubt.
