PRODUCT DETAILS

Guides To Model Selection

Push-to-Open	Touch Opening	With Handles
Slight pressure on the front opens the flap completely to the end position	Slight pressure on the front opens the flap slightly, then it can be opened or closed completely by hand. The front is locked reliably in any position	For wide and heavy fronts with handles (please also consider the handle weight when determining which model Maxi Lid Stay is needed)

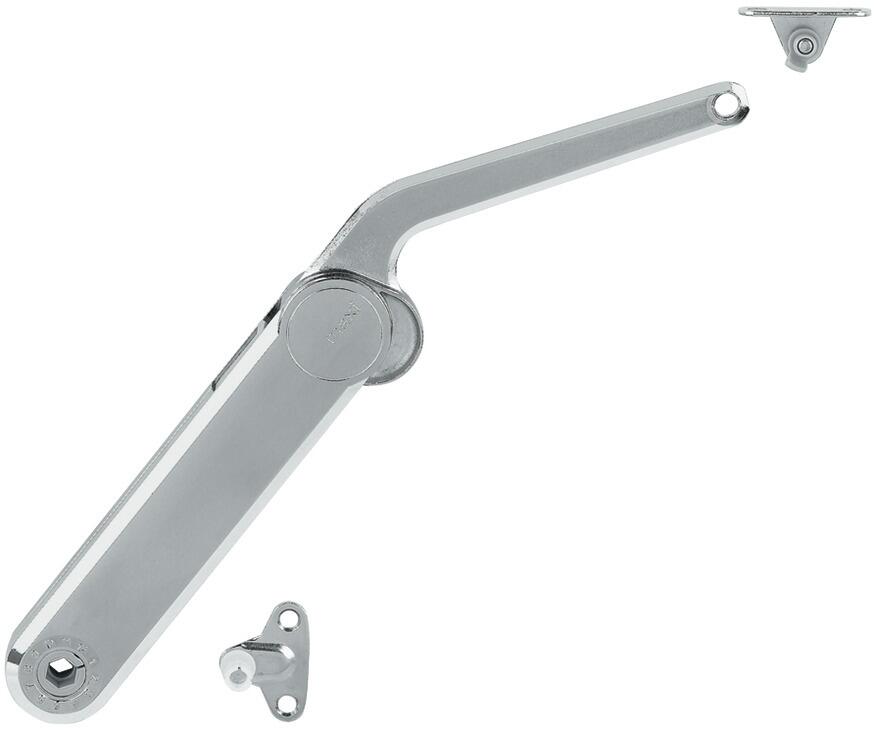

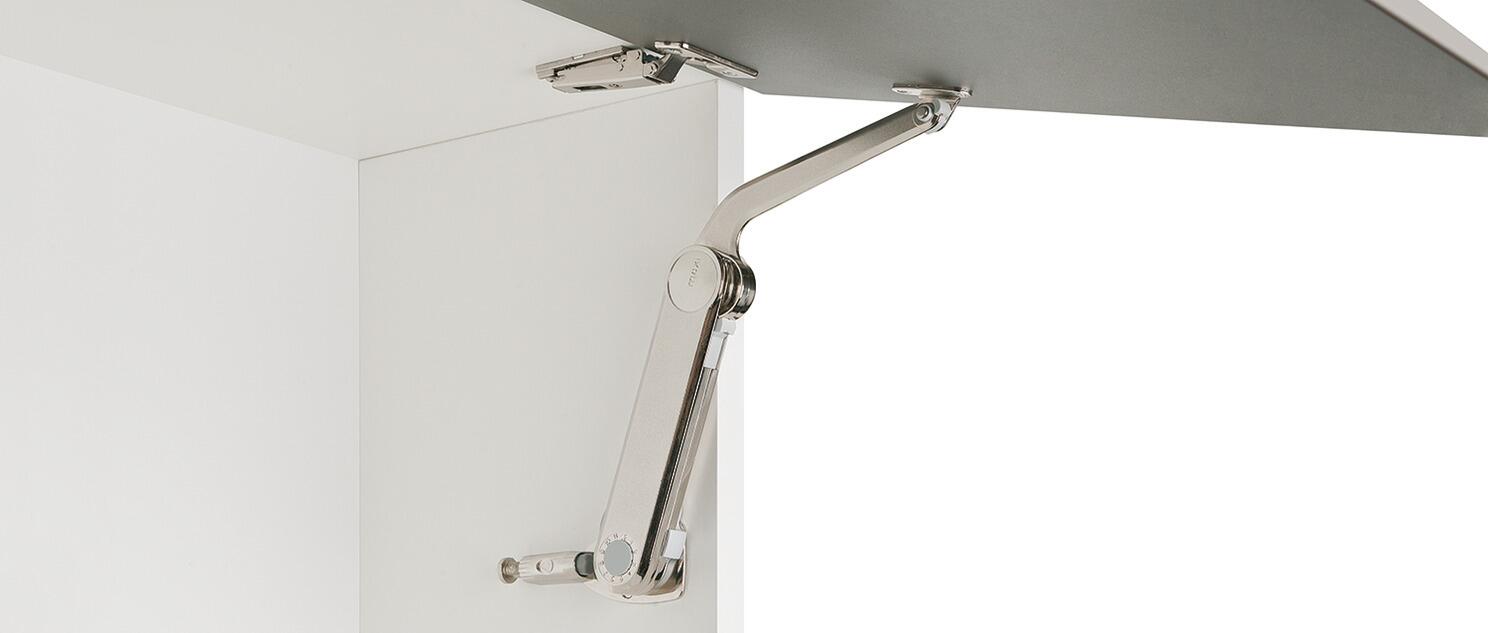

Hafele Maxi Lid Stay

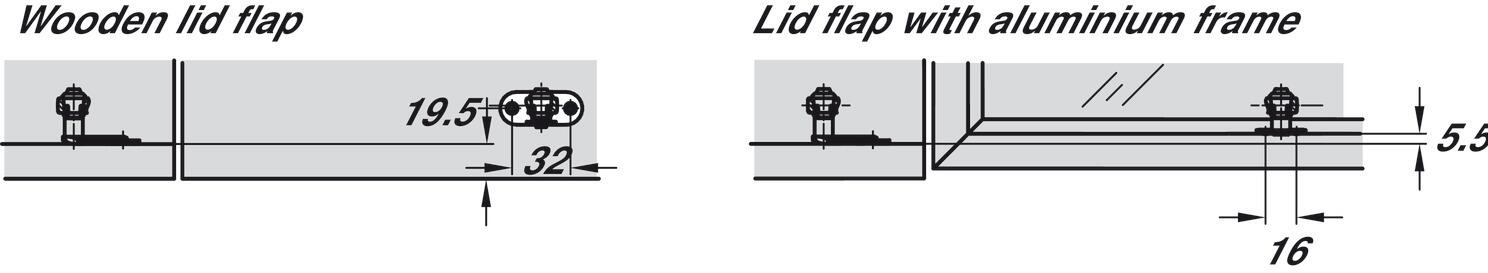

• For flaps made of wood, glass or with aluminium frame
• By changing the installation position and combining Maxi with the appropriate accessories all common applications for flaps and openings can be realised, e.g .;
  - fronts with or without handle
  - aluminium frame and all-glass fronts
• automatic opening to the end position
• multi-position stop (flap locks in any position)
• incredibly easy opening of heavy fronts, particularly wide and heavy fronts of even more than 50 kg
• Can be used on one or both sides (depending on the size of the flap)

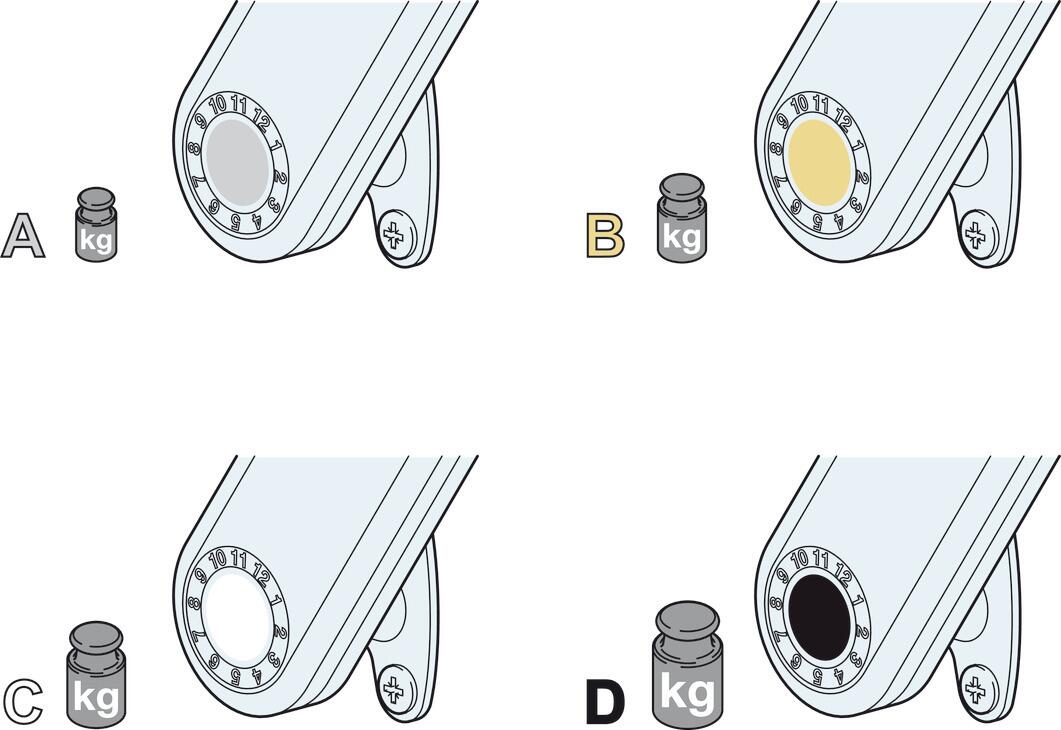

• Holding power can be adjusted individually to respective flap weight
• Opening angles of 75, 90 or 110 degrees (adjustable on unit)
• With power assisted opening
• Unhanded design

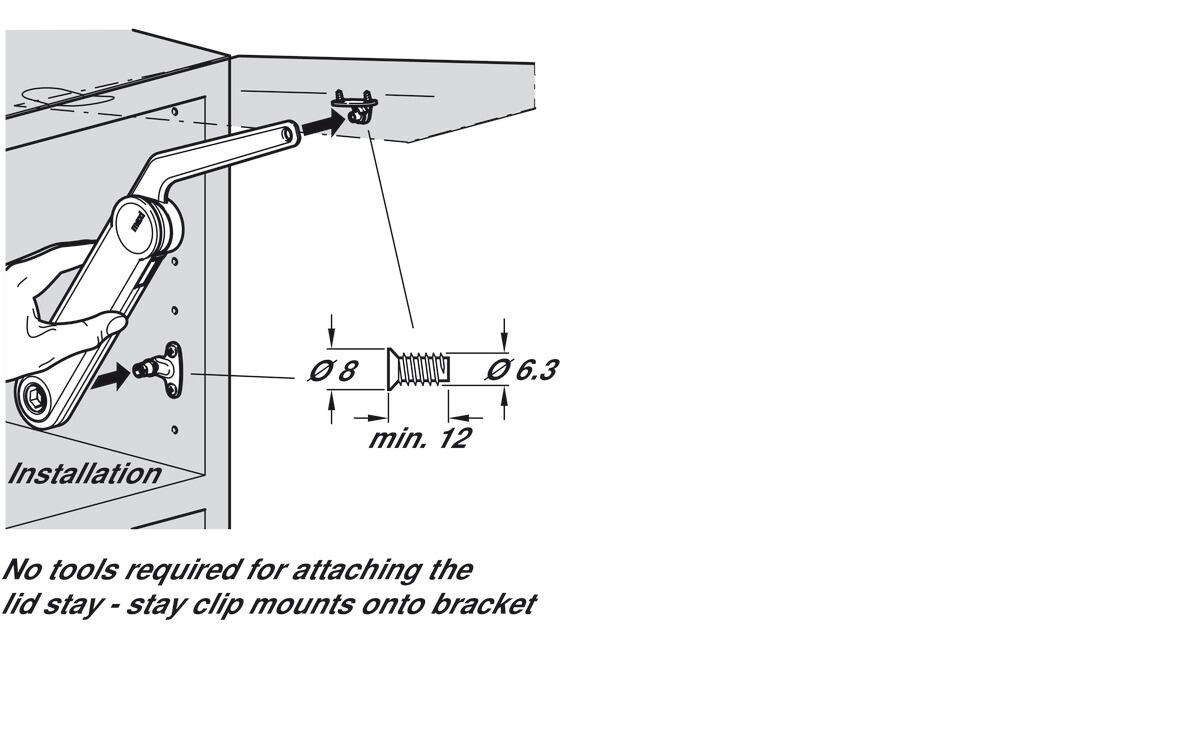

• Clip-mounting on pre-mounted screw fixing brackets included, no tools required

Set includes

1x Maxi Lid Stay
Installation instructions

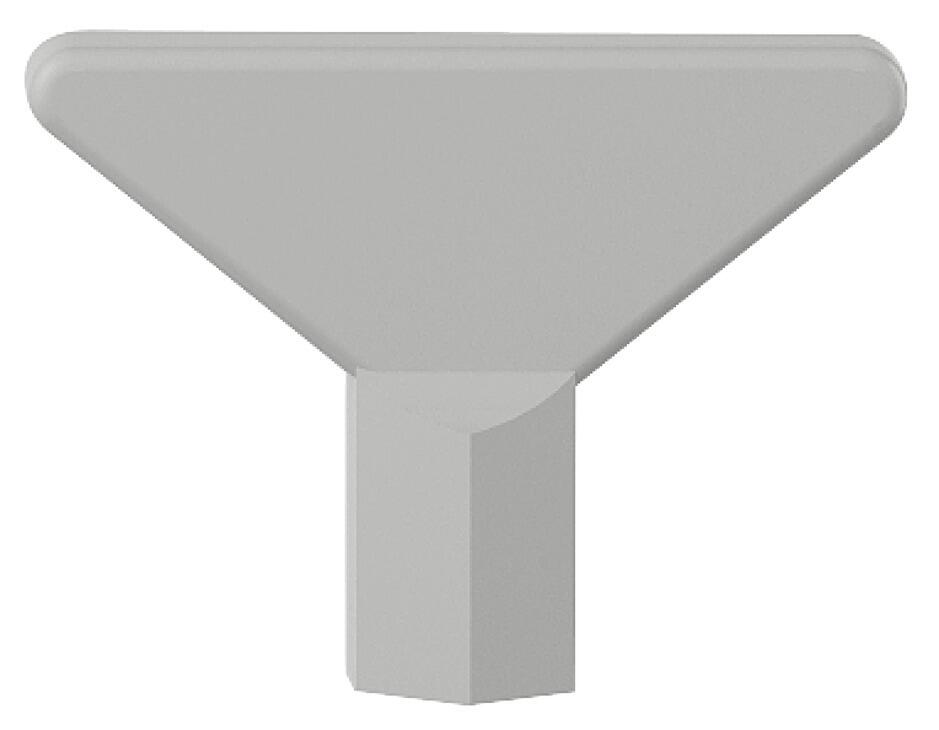

Height +-2 mm, side +3/-1 mm, tilt +-1.5 mm and holding power adjustment with SW10 hex key facility
Nickel-plated zinc alloy lid stay, nickel-plated steel screw-fixing brackets, plastic hinge cover and adjusting screw
Order fixing screws separately
