PRODUCT DETAILS

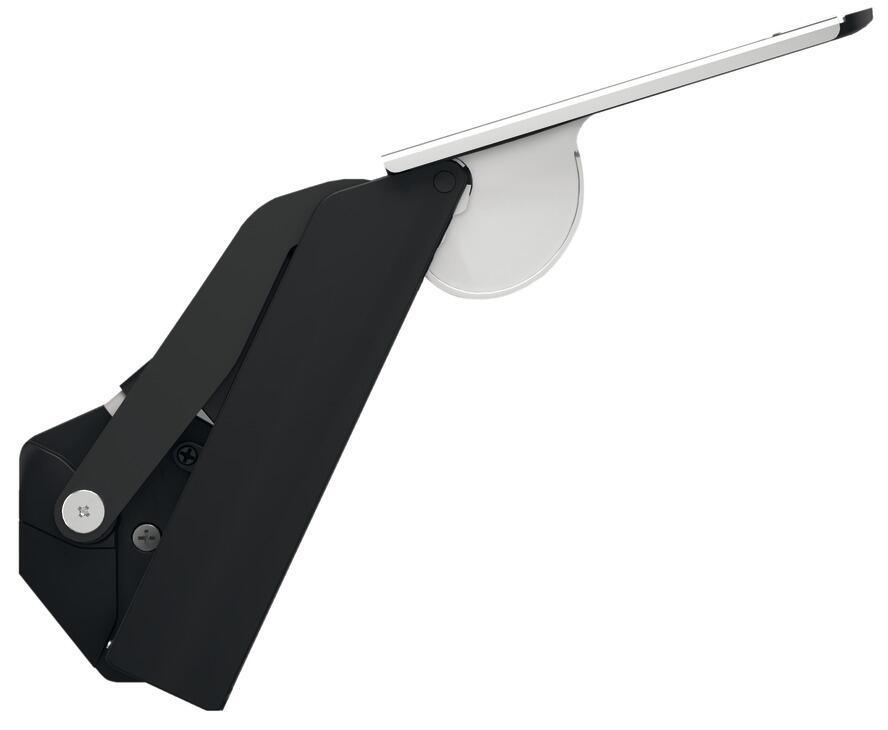

Hafele Free Space - Stay Flap Fittings

• Hinge-less stay flap fitting for more free room in all respects
• Extremely powerful: A product series for the majority of the most common flap sizes and weights
• Extremely compact: Minimal appearance and more storage space in the furniture
• Extremely gentle running characteristics making it a pleasure to use
• Extremely fast and time-saving processing
• Extremely adaptable: Four standard colours and a product version for handle-free applications

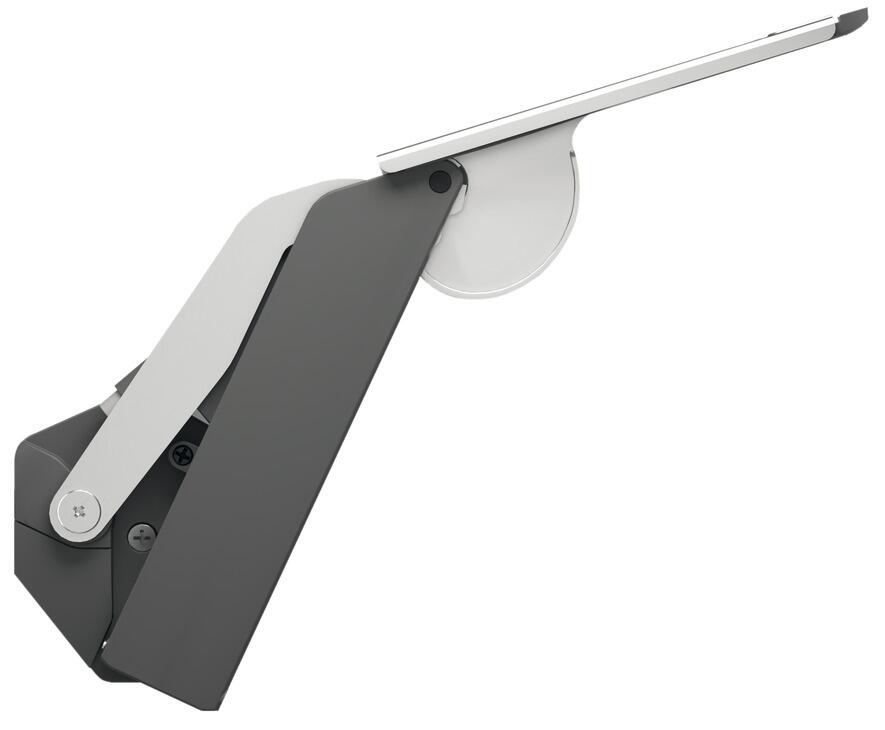

Free Space 5.15 Push

• For one-piece flaps without handle made of wood or with aluminium frame, from frame width 45 mm
• Area of application: For heavy stay flap applications up to 15 kg (with cabinet height 600 mm) Push-to-open

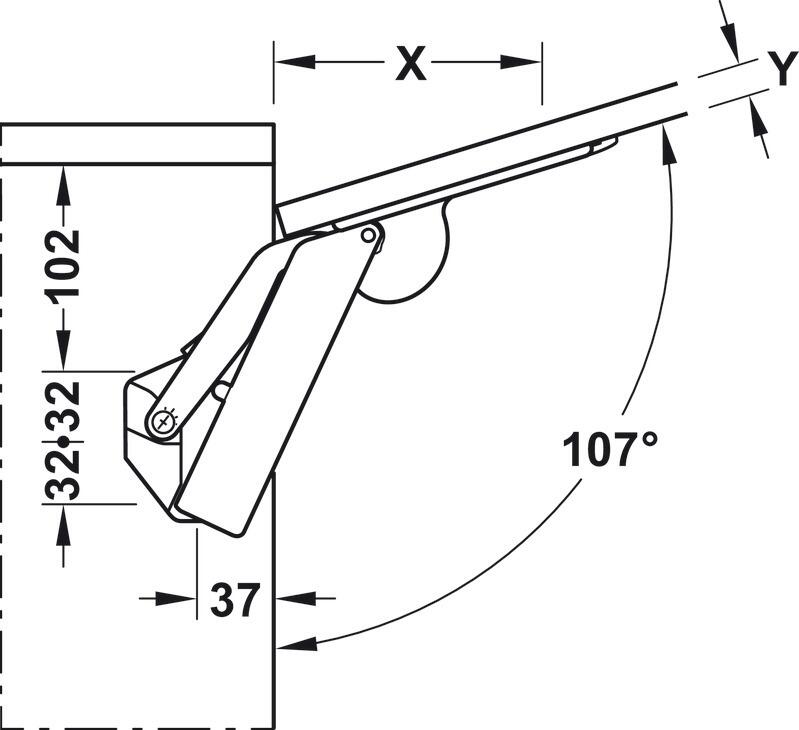

• Opening angle: 90 or 107 degrees
• Installation: Fitting for screw fixing with pre-mounted Euro screw, front panel fixing without tools, for sliding onto pre-mounted fixing screws
• Adjustment facility: Height, side, tilting angle, holding power

Supplied with
1 stay flap fitting set (1 piece each left/right)
2 front fixing brackets with pre-mounted screws
1 Free push catch
1 set of installation instructions with paper drilling template for side
panel

Material: Plastic housing, steel front fixing bracket and support lever

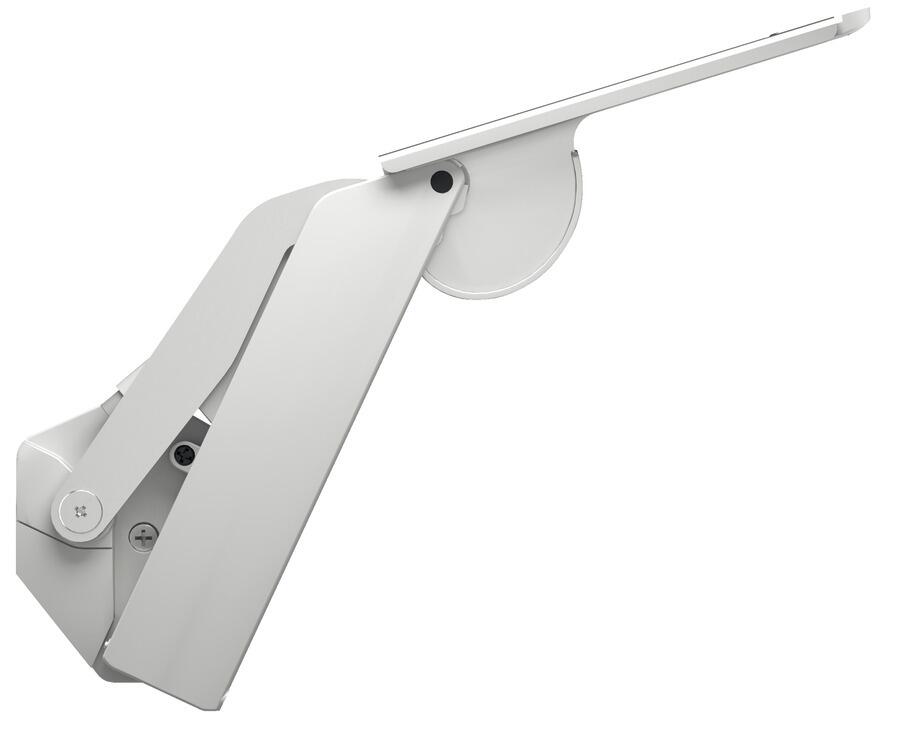

Finish/colour: Nickel plated or black (with black housing) front fixing bracket and support lever. White, light grey, anthracite or black housing

• If using aluminium frame front panels (from frame width 45 mm), please order suitable screw set 372.27.600 (see Related Products below)

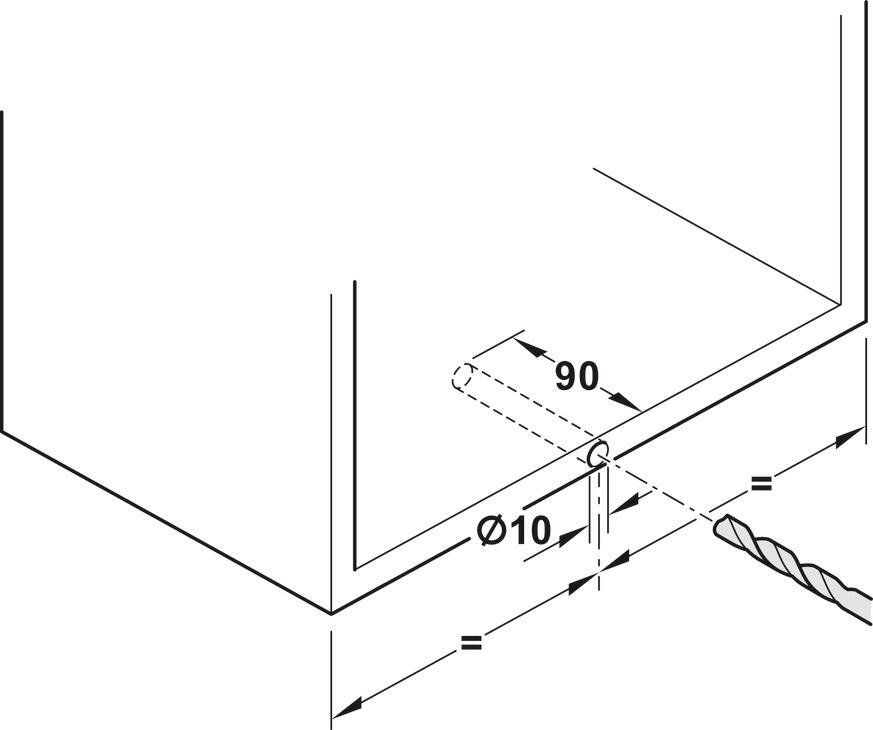

• Loox drilling jig 001.25.080 can be used for preparing the 10 mm diameter drill hole for insertion of the push catch (see Related Products below)

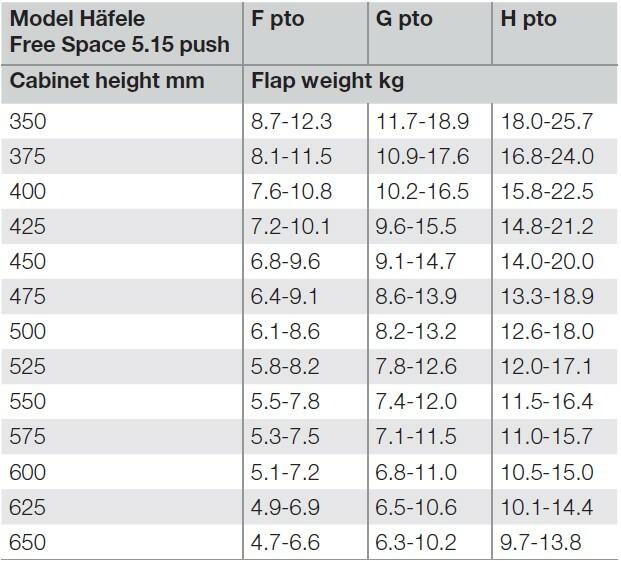

Sample measurements table for selecting the right model based on cabinet height and flap weight. We recommend to use the stronger fitting model when in doubt.
