PRODUCT DETAILS

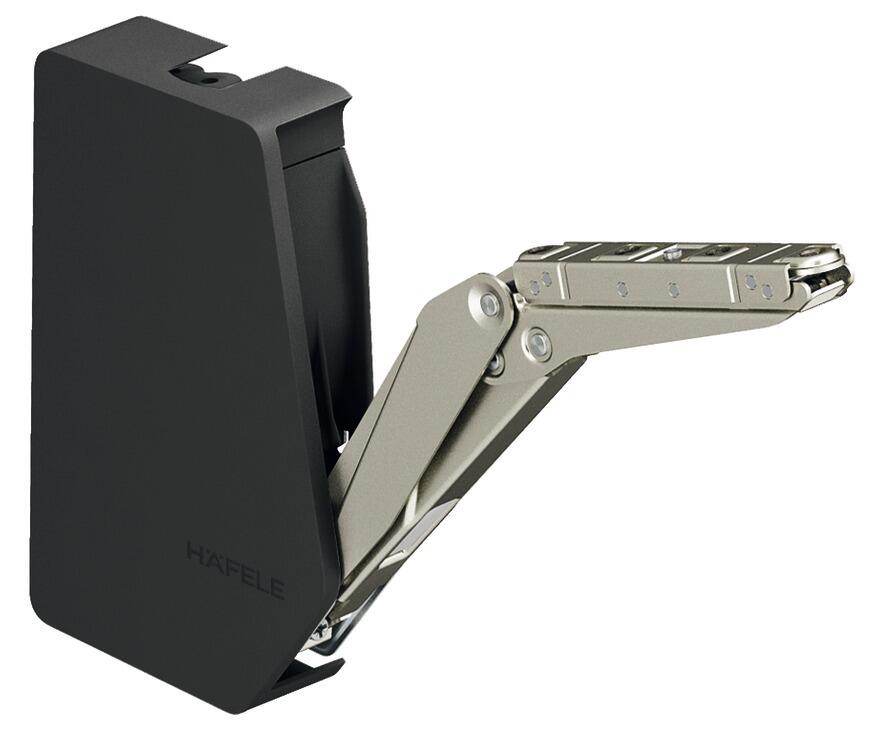

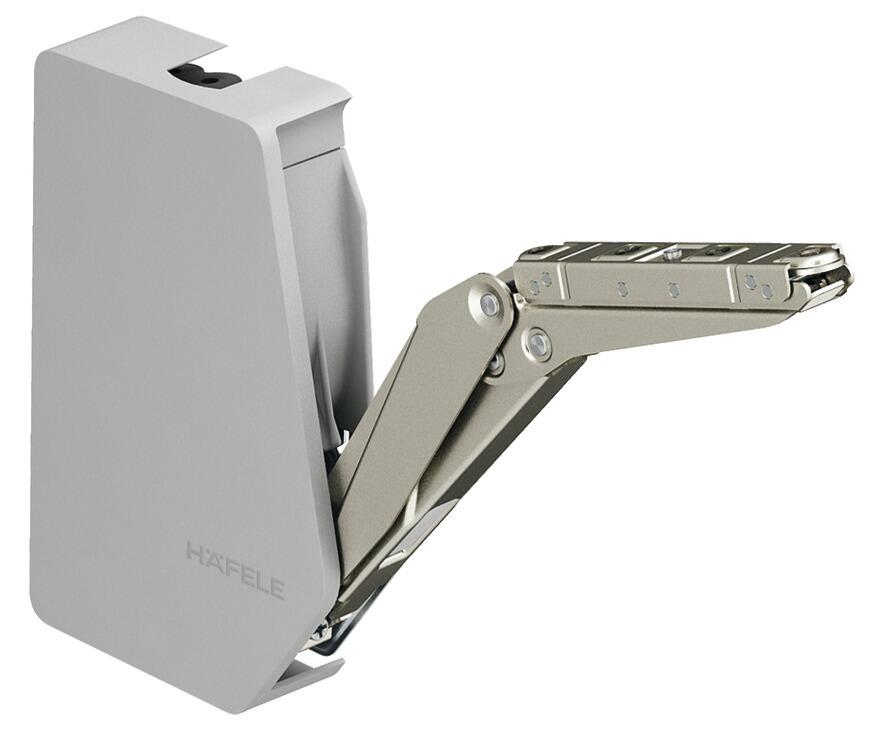

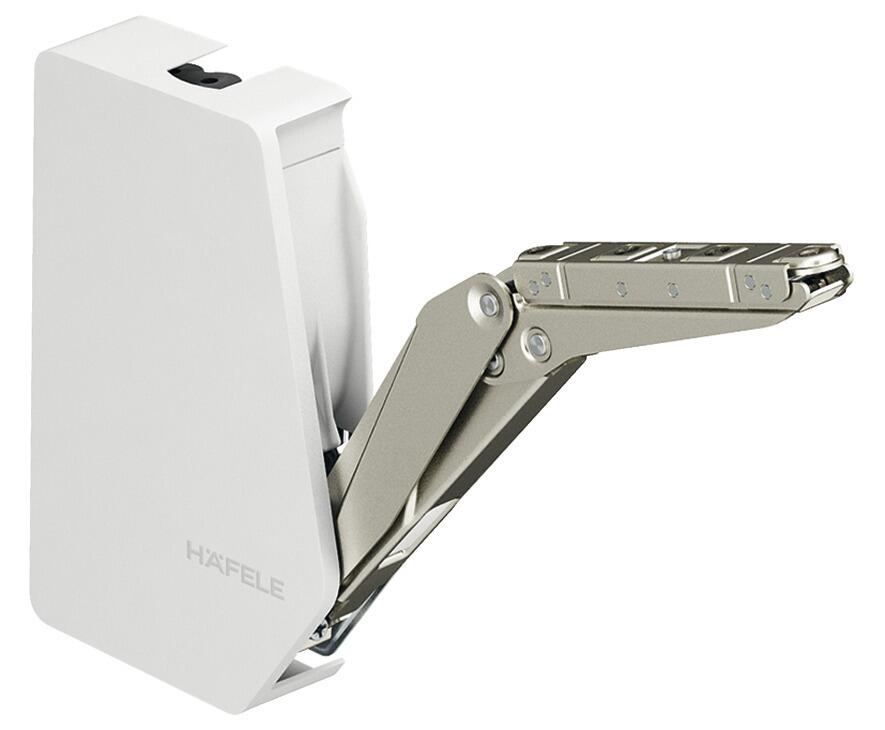

Hafele Free Flap - Stay Flap Fittings

• Hinge-less stay flap fittings sets:
• Two models Free Flap 1.7 and 3.15, designed for all common cabinet height and flap weight combinations
• Push to open catches available (see Related Products below)
• Convenient handling, even with heavy flaps
• Stylish and compact design provides easy access to cabinet hangers and is suitable for use in furniture with narrow depth
• Easy, efficient and time-saving processing
• Time saving installation provided by plugs, pre-mounted euro screws and clip fixing for front panel

Free Flap 3.15

• For flap height 350 - 650 mm
• For large, one-piece flaps made of wood or with aluminium frame

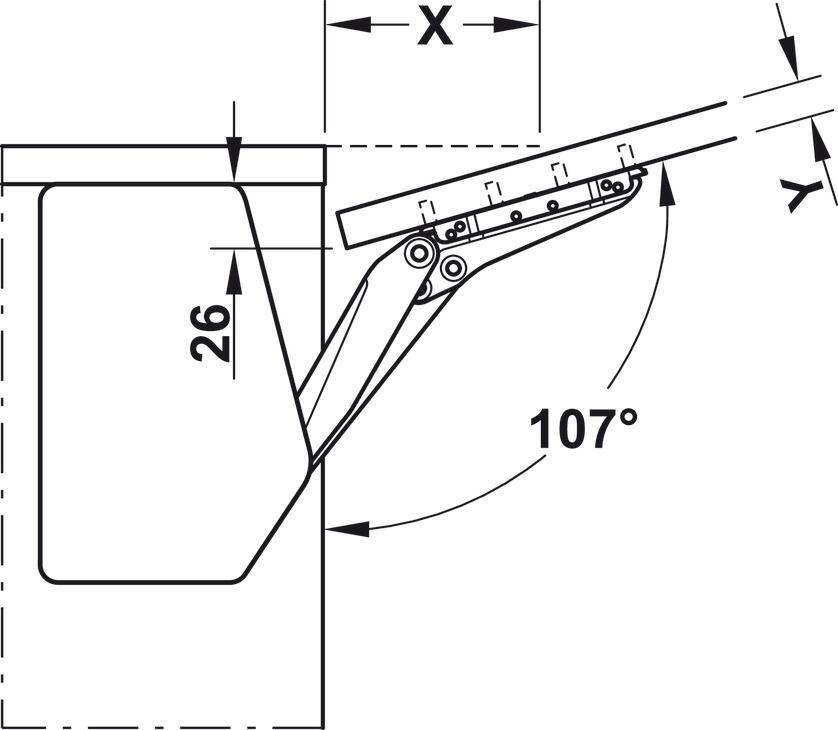

• 90 or 107 degree opening angle (adjustable on fitting)
• Fitting for screw fixing with pre-mounted Euro screws, front panel without tools (clip system) onto pre-mounted screw on brackets
• Integrated soft close

Set includes
2x Stay flap fittings (1x left, 1x right)
2x Cover caps for fitting (1x left, 1x right)
2x Screw-on brackets for wooden flaps or flaps with aluminium frame, from frame width 45 mm
1x Paper drilling template

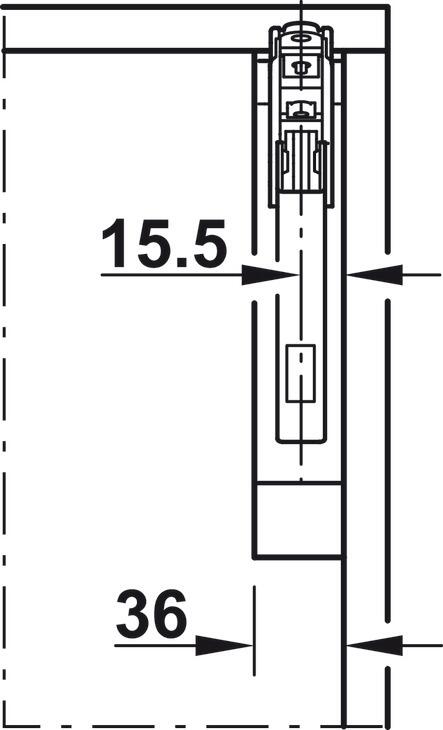

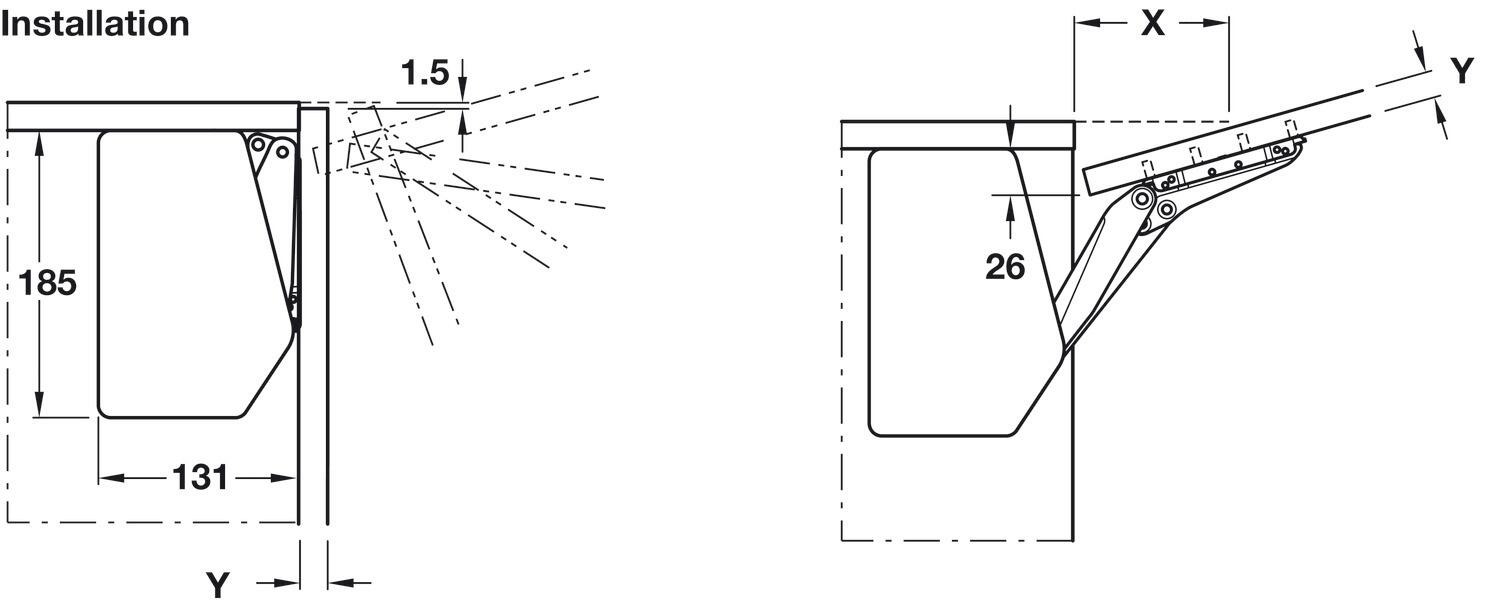

Installation instructions

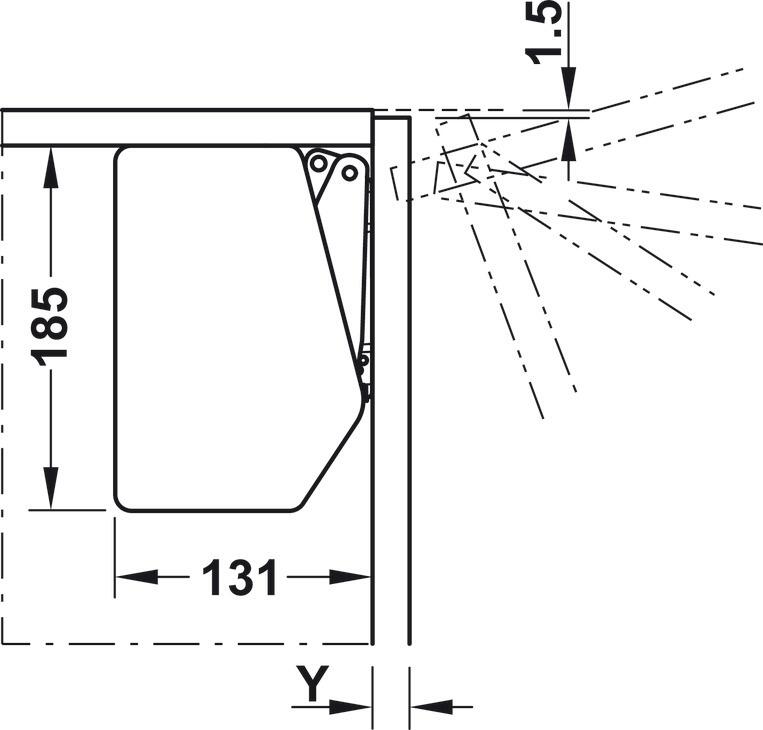

Height, side and tilting angle adjustment of front +-1.5 mm holding power
Nickel-plated steel flap fitting, plastic cover caps
Order fixing screws separately

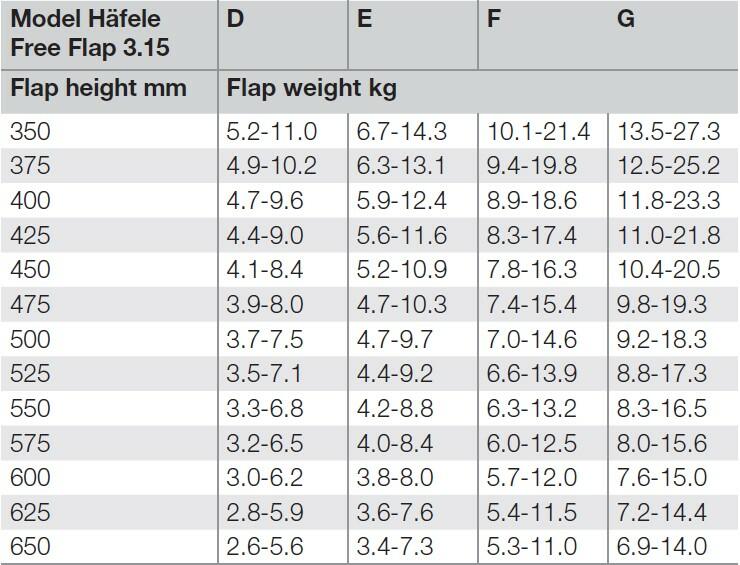

Sample measurements table for selecting the right model based on cabinet height and flap weight. We recommend to use the stronger fitting model when in doubt.
