Product code: 373.66.611

£0.00
£11.59
(
£9.66
ex VAT)
Earn116
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

28 mm, Woodscrew fixing, Nickel plated

QuantityPrice (inc VAT)
2 - 4£11.02
5 - 9£10.43
10 +£9.28

Bulk Buy Discounts for:

37 mm, Woodscrew fixing, Nickel plated

QuantityPrice (inc VAT)
10 +£17.47

Bulk Buy Discounts for:

37 mm, Euro screw fixing, Nickel plated

QuantityPrice (inc VAT)
2 - 4£11.70
5 - 9£11.09
10 +£9.85

Bulk Buy Discounts for:

37 mm, Woodscrew fixing, White

QuantityPrice (inc VAT)
2 - 4£19.29
5 - 9£18.28
10 +£16.25
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

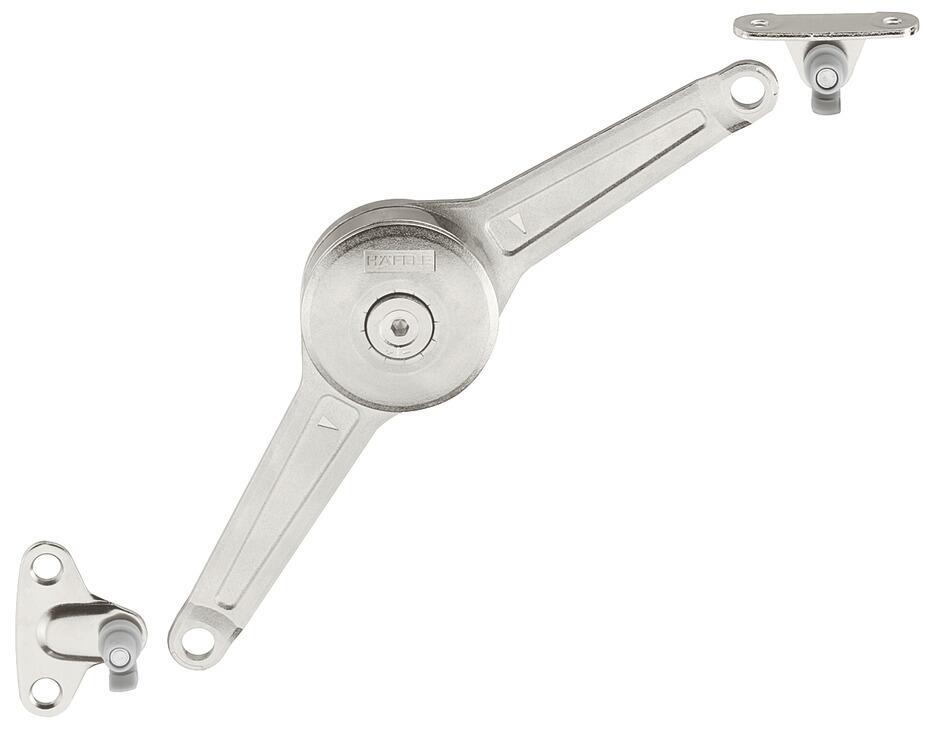

    Duo Flap / Lid Stay

    • For flaps made of wood, glass or with aluminium frame

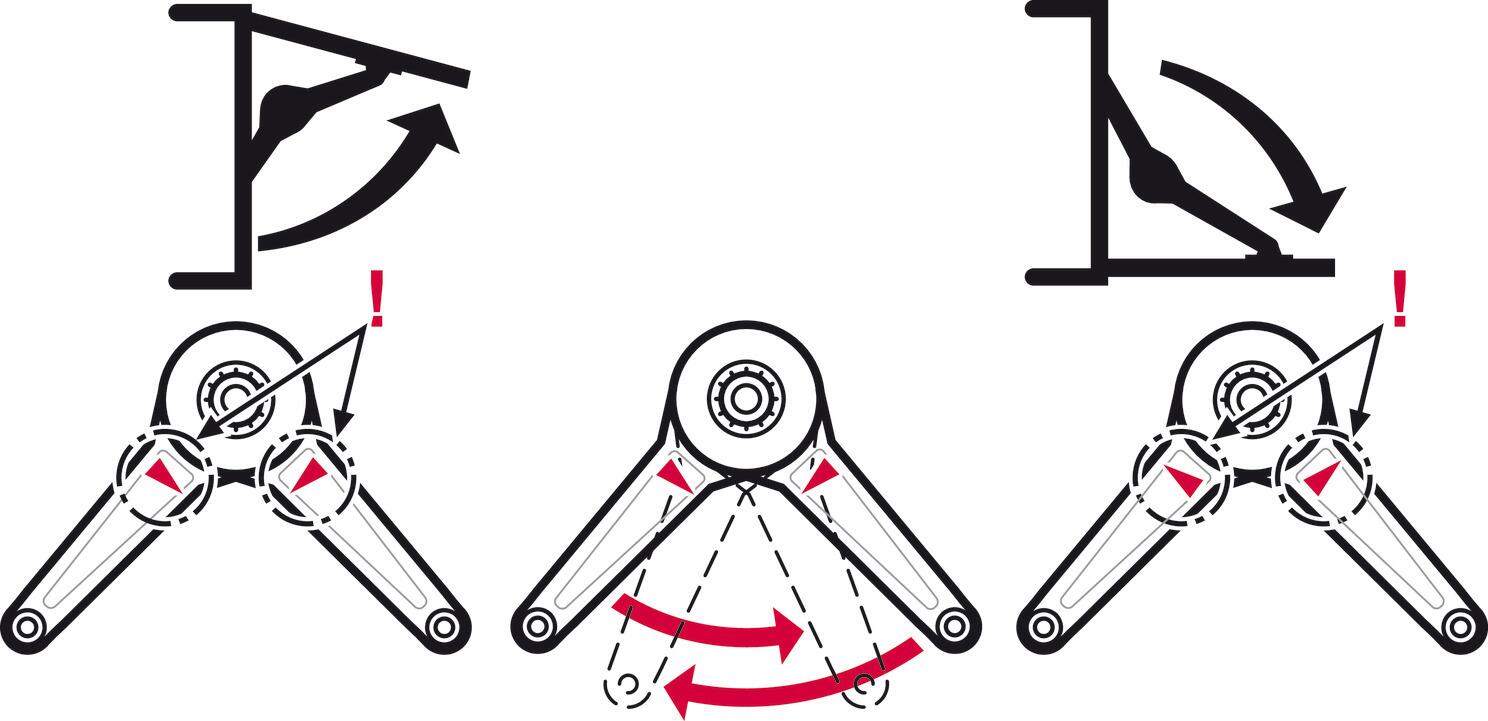

    • Adjusting the arms (overshear) turns the lid stay into a flap stay
    • Less space required inside the cabinet
    • Wear-resistant friction coupling with large adjusting range

    Duo Flap / Lid Stay

    • Light version - min. installation depth 130 mm
    • Opening angles: 75, 90 or 110 degrees (adjustable on unit with SW4 hex key (see Related Products below)
    • Unhanded design
    • For use with wooden lids or lids with aluminium frames, also suitable for use as flap stay
    • For flaps with aluminium frame width 20 or from 45 mm

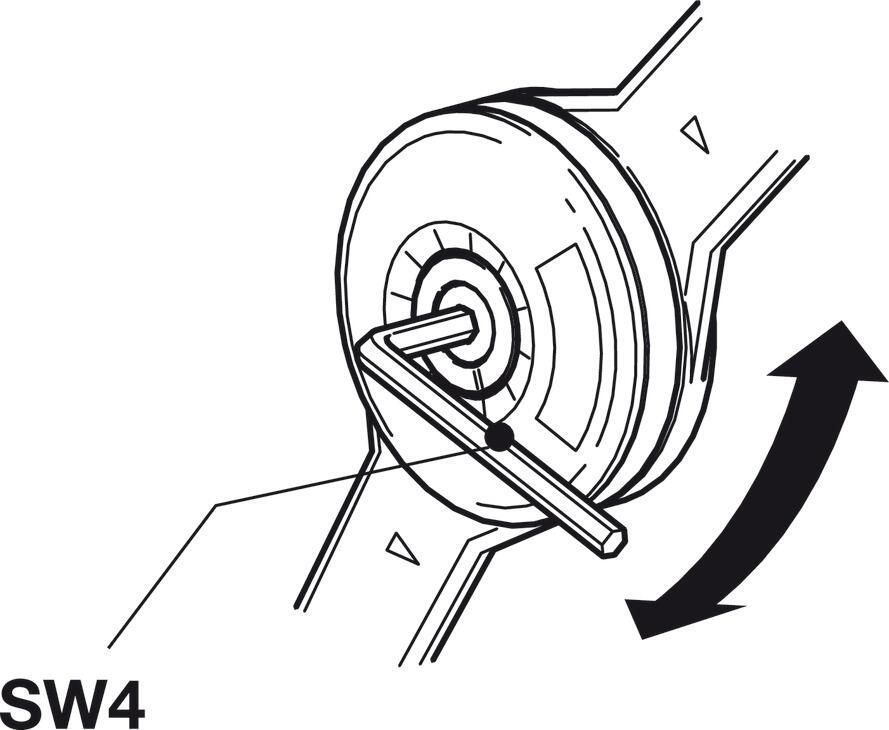

    • With braking and locking mechanisms, can be adjusted using an SW4 hex key
    • Self closing function
    • Clip-mounting on pre-mounted screw fixing brackets, no tools required

    Set includes
    1x Stay flap fitting

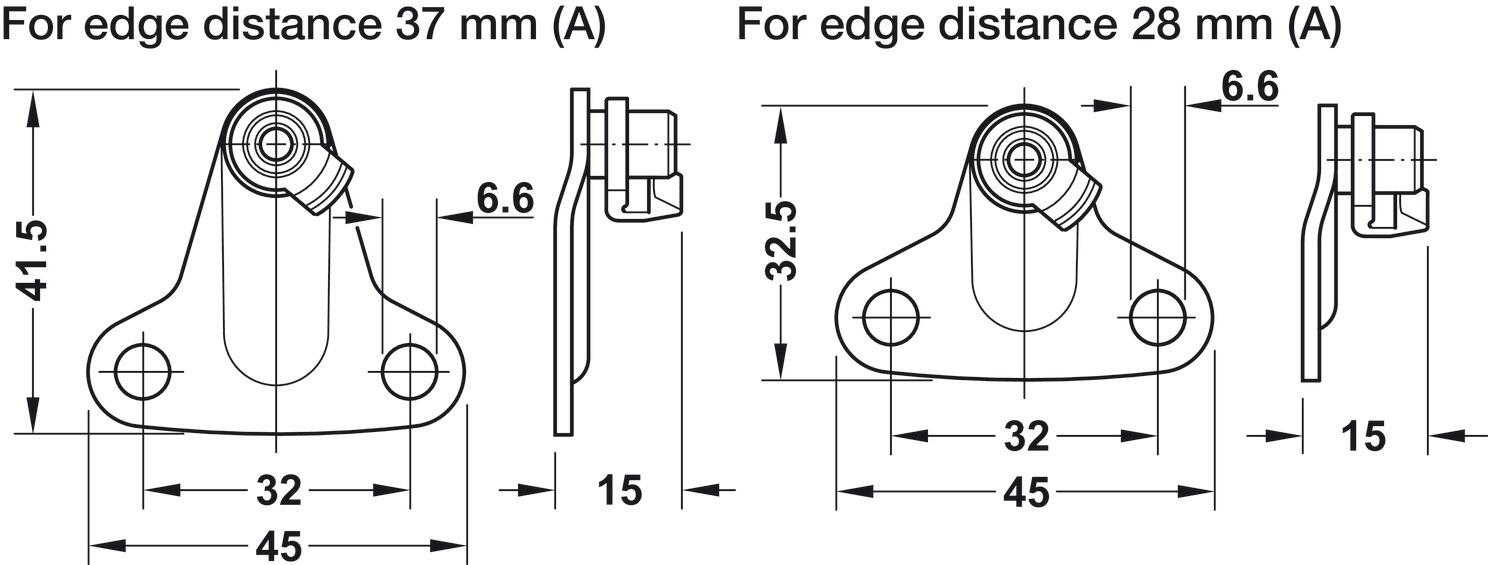

    Fixing brackets

    Height +2 mm, side +3/-1 mm, tilt +1.5 mm and pull adjustment facility

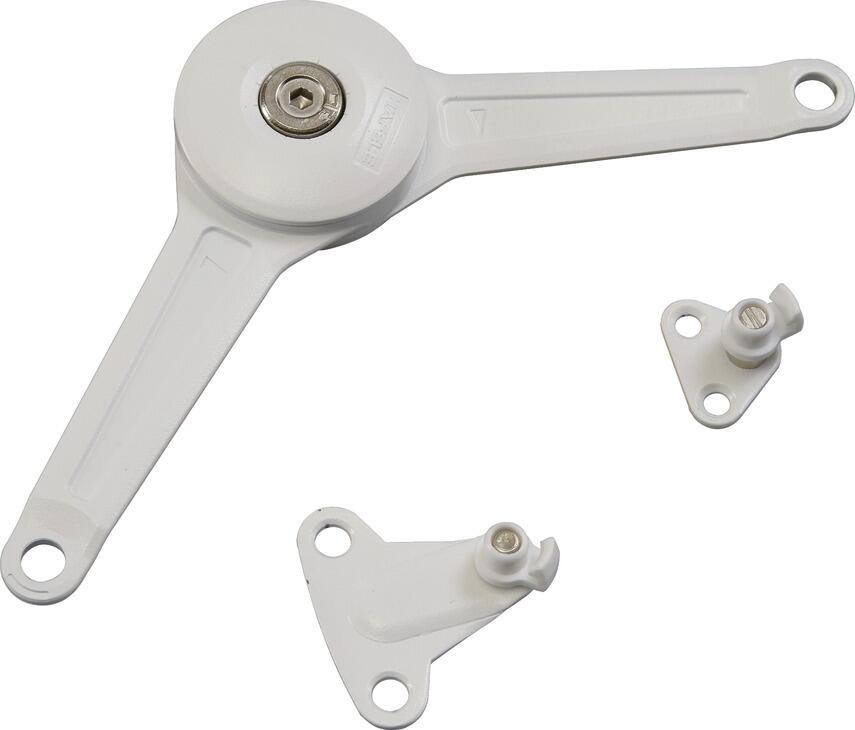

    Steel bracket, zinc alloy lid stay in nickel-plated or white
    Order fixing screws separately

    Links & Downloads
    Mounting InstructionsLGA - Quality CertificateOnline Catalogue
