Concealed Cup Hinge, 120 Degree, Grass Tiomos, Click On Arm, Soft Close, Dowel Fixing (Without Plate) - Grass Tiomos

Concealed Cup Hinge, 120 Degree, Grass Tiomos, Click On Arm, Soft Close, Dowel Fixing (Without Plate) - Grass Tiomos

Product code: 348.35.810

£0.00
£211.78
(
£176.48
ex VAT)
Earn2118
reward points
Available On Back Order

Bulk Buy Discounts for:

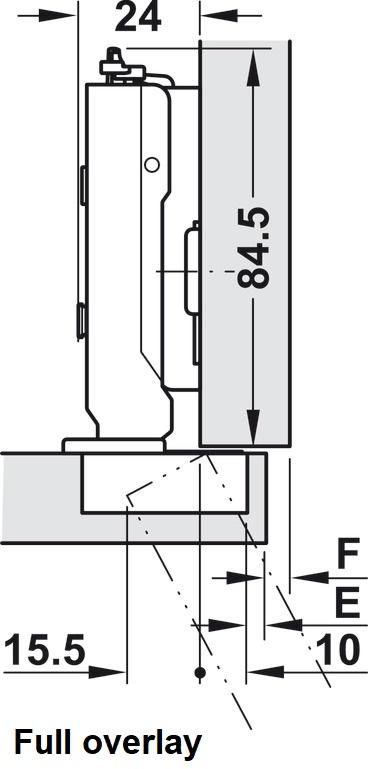

Full overlay

QuantityPrice (inc VAT)
2 +£188.25
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For standard applications
    • ? 35 mm cup
    • Convenient opening angle with excellent overlay and gap dimensions up to 24 mm door thickness

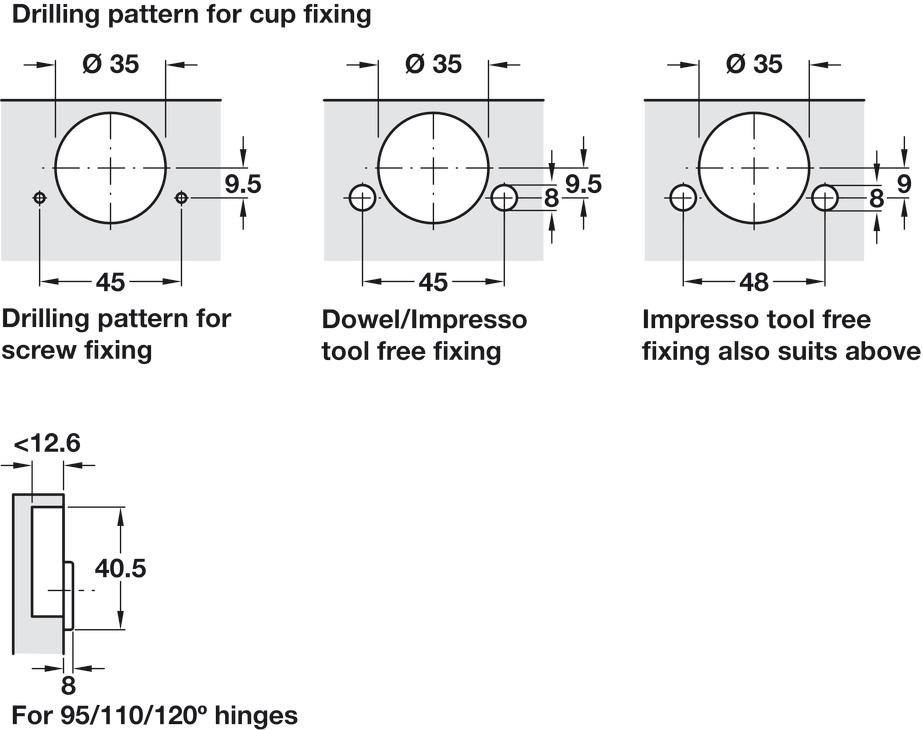

    Drilling pattern
    42/11 mm

    Colour/finish
    nickel

    Mounting
    Mounting in drilled hole, Screw fixing, Clip fixing, Without tools

    Model
    Tiomos

    For door material
    Wood

    Opening angle
    120?

    Compatible with
    Standard applications with convenient opening angle

    Material
    Steel, Hinge arm: Steel

    Installation
    Door to cabinet without tools (clip system)

    Door processing for assembly
    Cup drilling

    Adjustment facility
    Side adjustment ?2 mm, Height adjustment ?2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate

    For wooden door thickness
    16 – 24 mm

    Cup drilling depth
    12.6 mm

    Note

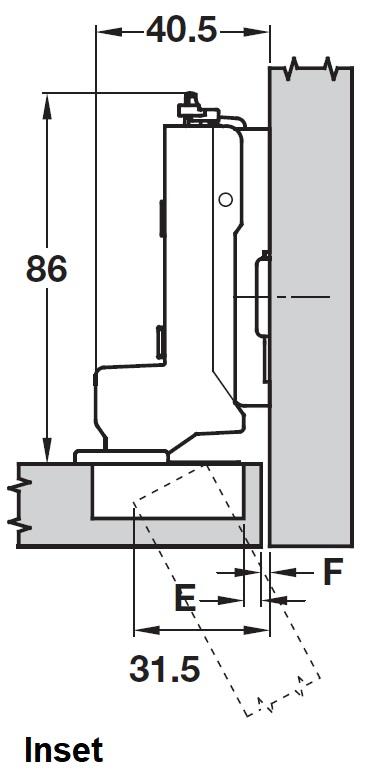

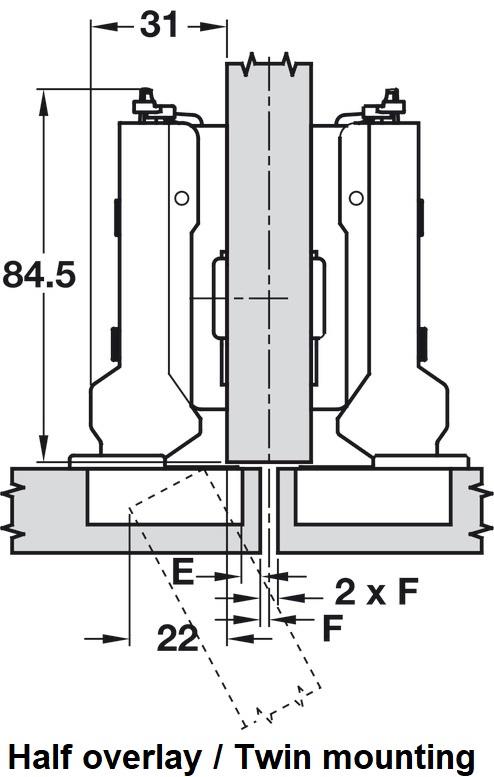

    The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.

    Order reference
    Order mounting plate and Hospa ? 3.5 mm countersunk screws separately
    Order cover plates separately
