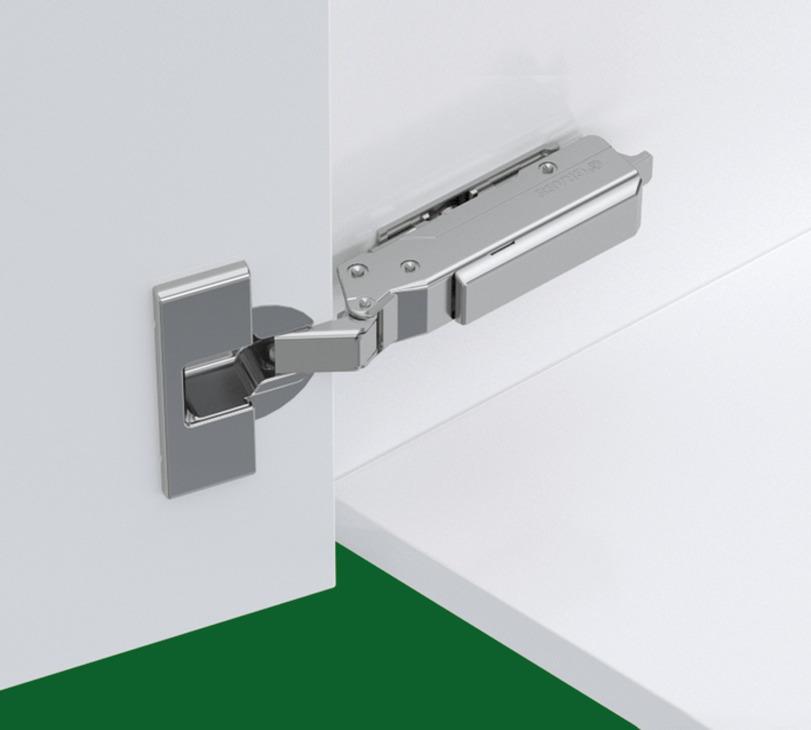

Grass Concealed Cup Hinge, 110 Degree, Grass Tiomos, Click On Arm, Sprung (Without Plate) - Grass Tiomos

Grass Concealed Cup Hinge, 110 Degree, Grass Tiomos, Click On Arm, Sprung (Without Plate) - Grass Tiomos

Product code: 348.31.801

£0.00
£4.85
(
£4.04
ex VAT)
Earn49
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For standard cupboard/cabinet door applications
    • 35 mm cup diameter
    • With soft closing mechanism integrated in hinge arm, with 3 settings to reduce or increase power (optional)
    • Optimum gap dimensions up to 24 mm door thickness (for door thicknesses 24 mm and above, a trial fitting is recommended)

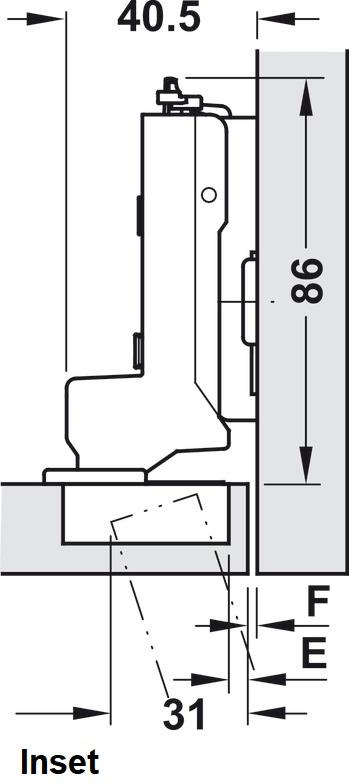

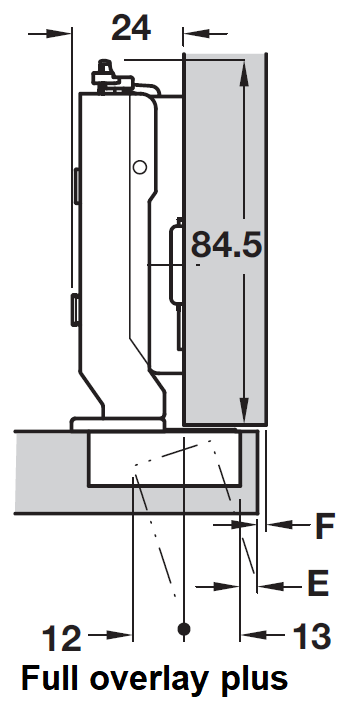

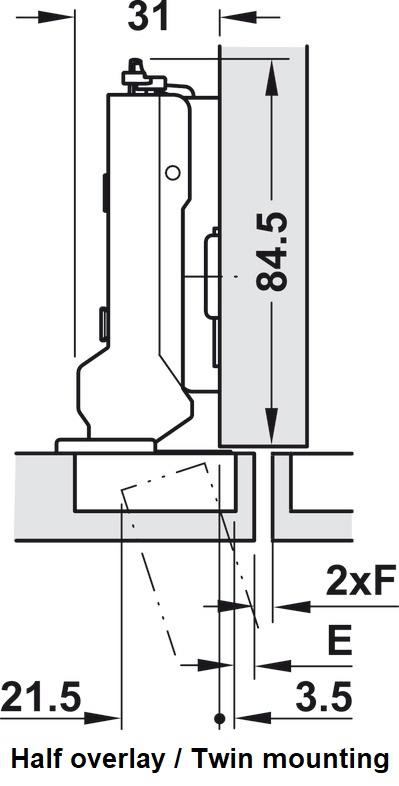

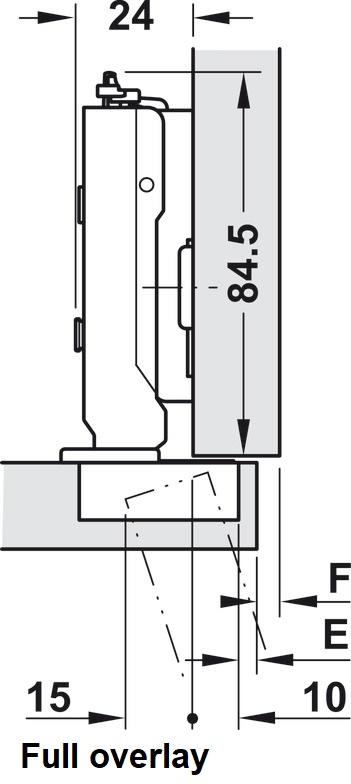

    • Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm.

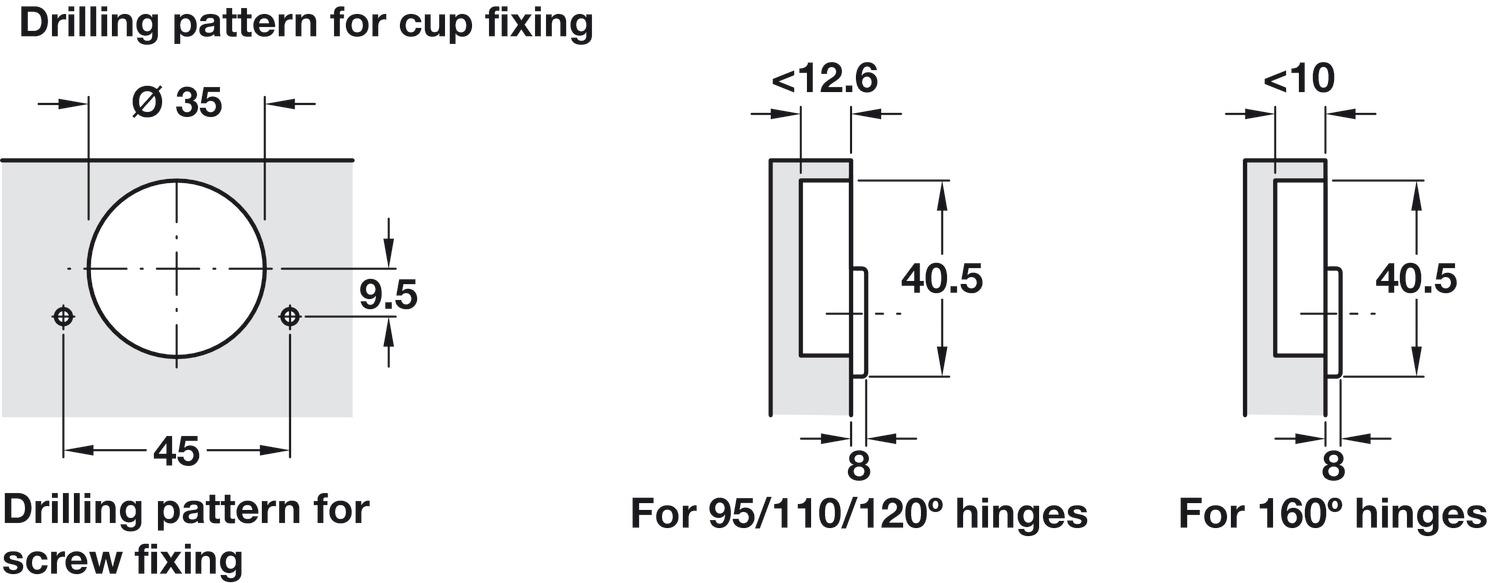

    Drilling pattern
    45/9.5 mm

    Colour/finish
    nickel

    Mounting
    Mounting in drilled hole, Screw fixing, Clip fixing, Without tools

    Material
    Steel, Hinge arm: Steel

    Adjustment facility
    Side adjustment -/+2 mm, Height adjustment -/+2.5 mm, Depth adjustment -/+2 mm, Height adjustment depending on mounting plate

    For wooden door thickness
    16-24 mm

    Cup drilling depth
    12.6 mm

    Model series
    Tiomos 110 degree opening

    Order reference
    Order mounting plate and Hospa 3.5mm gauge countersunk screws separately
    Order cover plates separately

    35mm hold cutter available in related products
