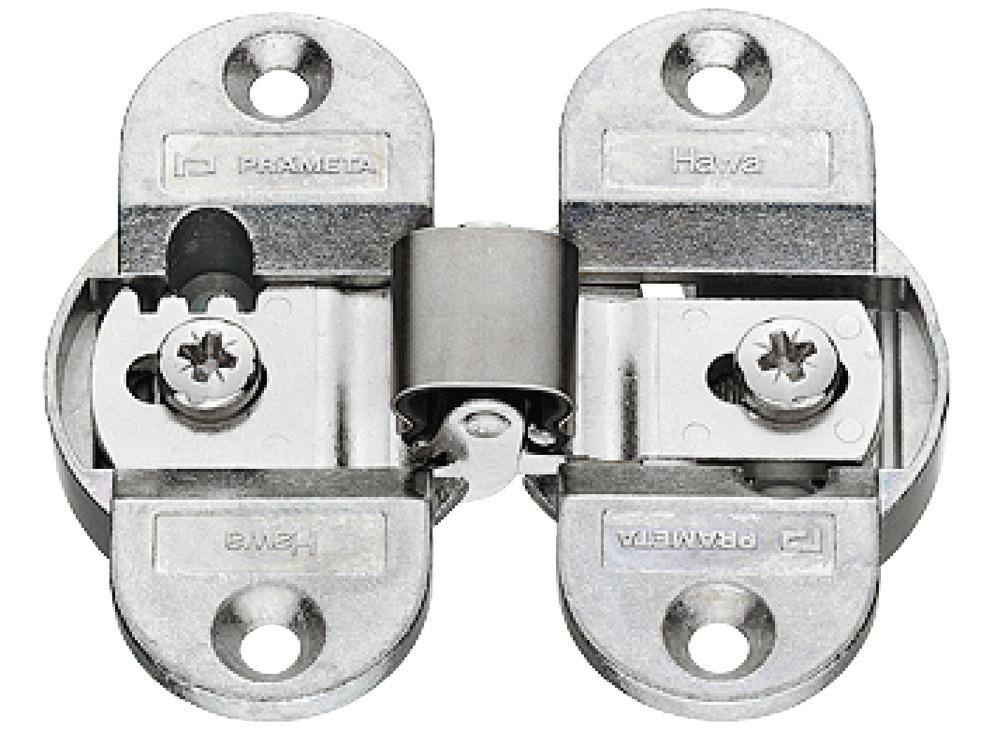

Concealed Mortice Hinge, 180 Degrees, For Folding Doors - Hafele

Concealed Mortice Hinge, 180 Degrees, For Folding Doors - Hafele

Product code: 343.91.600

£0.00
£22.64
(
£18.87
ex VAT)
Earn226
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

steel

QuantityPrice (inc VAT)
2 - 4£21.51
5 - 9£20.38
10 +£18.11
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    With automatic closing spring, Screw fixing cup

    Suitable for free swinging or guided folding doors

    Inward opening only
    Adjustable offset of the turning point
    Self closing (uniform spring strength independant of gap width and pivot point position)
    Hardened steel axle in maintenance free plastic bearings


    Area of application

    for folding doors

    Version

    With spring

    For door material

    Wood

    Door processing for assembly

    Without

    Opening angle

    180 degree

    For door thickness

    MInimum 13 mm

    Cup drilling depth

    9 mm

    Cup drilling diameter

    35 mm

    Adjustment facility

    Adjustable gap 0-10 mm (factory setting 3 mm gap, pivot point 1.5 mm off centre), with height adjustment +/- 1 mm

    Installation

    For screw fixing

    Order reference

    Takes Metric 4.0mm gauge countersunk screws
