Product code: 329.71.513

£0.00
£1.91
(
£1.59
ex VAT)
Earn19
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

3mm height

QuantityPrice (inc VAT)
10 - 24£1.82
25 - 49£1.72
50 +£1.53
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    For side panel thickness 19 mm, Height 3 mm, hole centres: 32 mm

    • Height adjustment from -4 to 2 mm

    Area of application:-For click on systems

    Version:-With quick fixing systems and eccentric adjustment

    Material:-Zinc alloy

    Colour/finish:-nickel plated

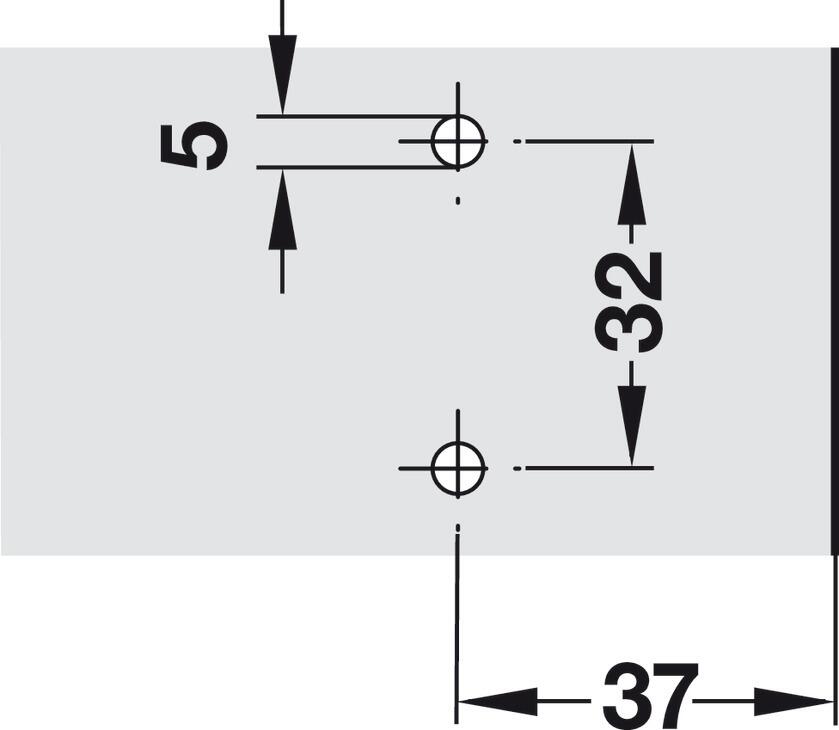

    For drill hole diameter:-5.00 mm

    For side panel thickness:-19 mm

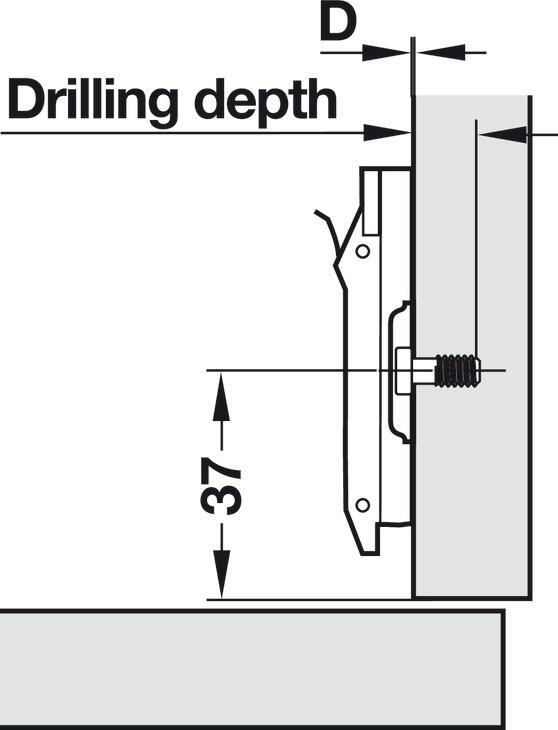

    Drilling depth:-11.00 mm

    Screw distance:-32.00 mm

    Edge distance:-37.00 mm

    Adjustment facility:-Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

    Fixing method:-Quick fixing system SM

    Mounting plate version:-For screw fixing with pre-mounted Euro screws

    Distance:-3.00 mm

    Manufacturer:-Hafele

    Model series:-Hafele Duomatic SM Cruciform mounting plate

    Suitable for;-Hafele Metalla 510 concealed hinges
