Concealed Cup Hinge, 155 Degree, Grass Tiomos Night, Click On Arm, Soft Close (Without Plate) - Grass Tiomos

Concealed Cup Hinge, 155 Degree, Grass Tiomos Night, Click On Arm, Soft Close (Without Plate) - Grass Tiomos

Product code: 348.32.806

£0.00
£13.86
(
£11.55
ex VAT)
Earn139
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

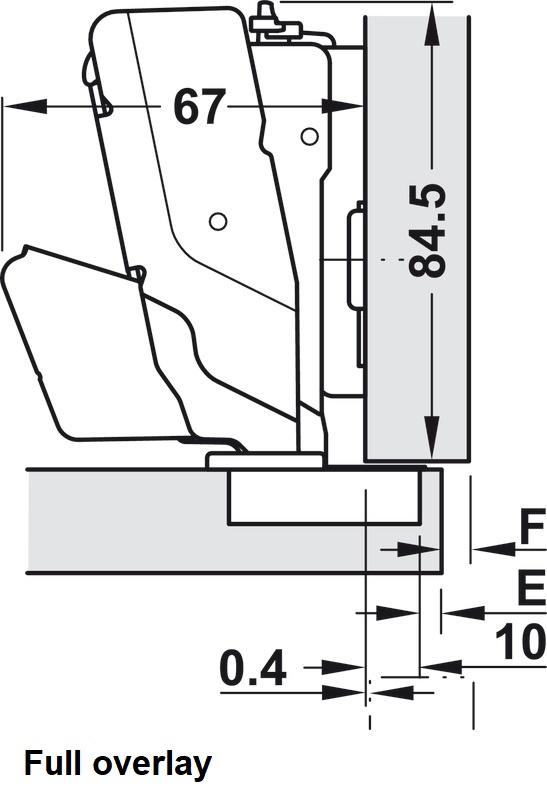

Full overlay

QuantityPrice (inc VAT)
5 - 9£13.16
10 - 24£12.47
25 +£11.08
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For standard applications
    • ? 35 mm cup
    • Zero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelves
    • With finger protection
    • Up to 32 mm door thickness (for door thicknesses over 29 mm, a trial mounting is recommended)
    • Shallow cup drilling depth only 10 mm
    • Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm

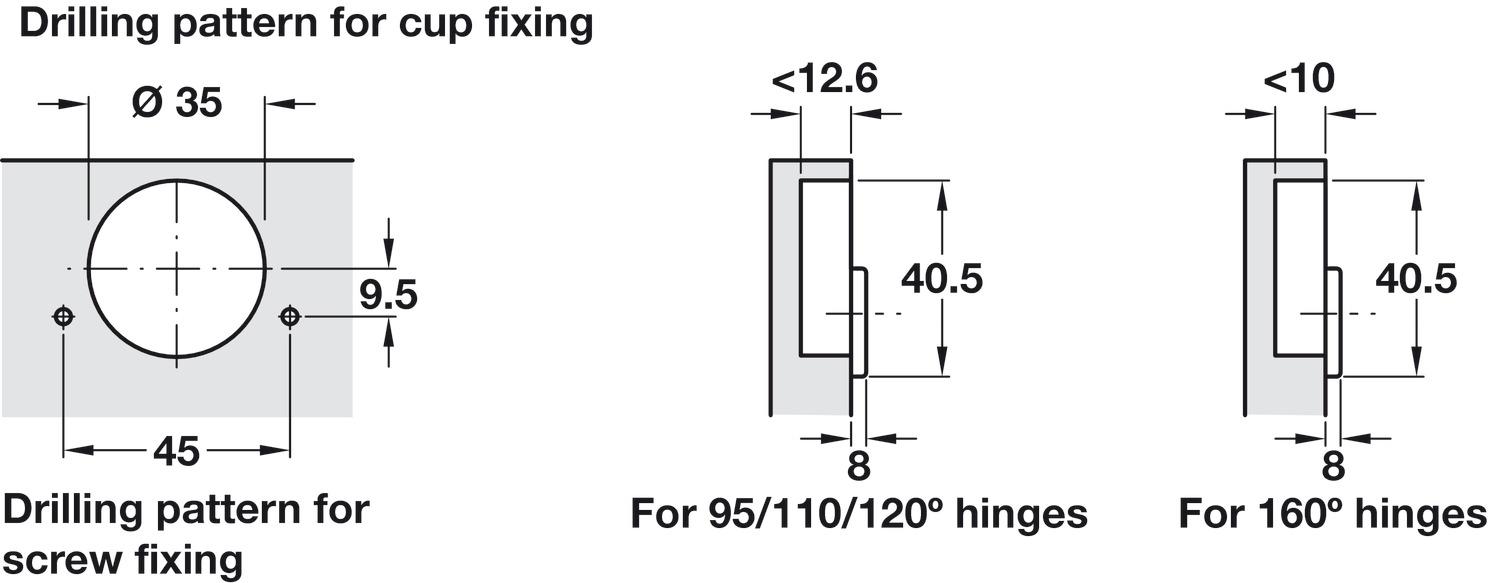

    Drilling pattern
    45/9.5 mm

    Colour/finish
    anthracite (dark grey)

    Mounting
    Mounting in drilled hole, Screw fixing, Clip fixing, Without tools

    Opening angle
    155?

    Suitable for
    Cabinets with internal pull outs or extending trays

    Material
    Zinc alloy, Hinge arm: Zinc alloy

    Installation
    Door to cabinet without tools (clip system)

    Door processing for assembly
    Cup drilling

    Adjustment facility
    Side adjustment ?2 mm, Height adjustment ?2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate

    For wooden door thickness
    16 – 32 mm

    Cup drilling depth
    10 mm

    Note
    Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm

    Order reference
    Order mounting plate and Hospa ? 3.5 mm countersunk screws separately
    Order cover plates separately?

    Online Catalogue PDF
