PRODUCT DETAILS

• For standard applications
• ? 35 mm cup
• With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional) ??
• With opening mechanism for comfortable opening of front panels without handles
• Optimum gap dimensions up to 24 mm door thickness (for door thicknesses 24 mm and above, a trial fitting is recommended)

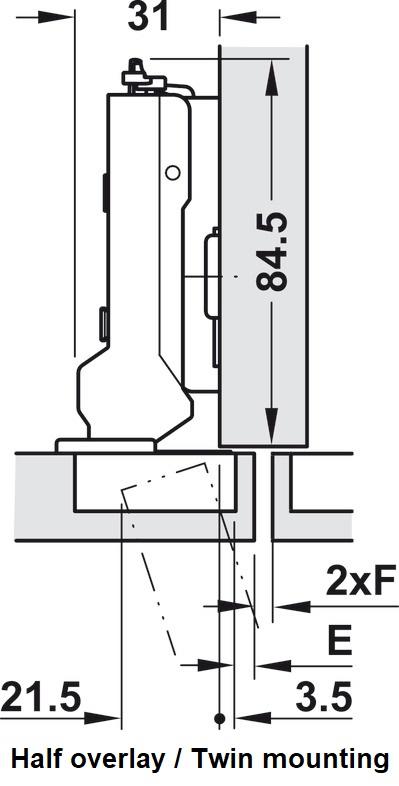

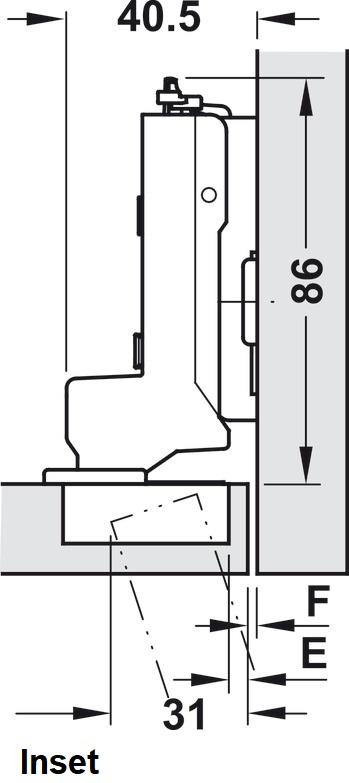

• Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm.

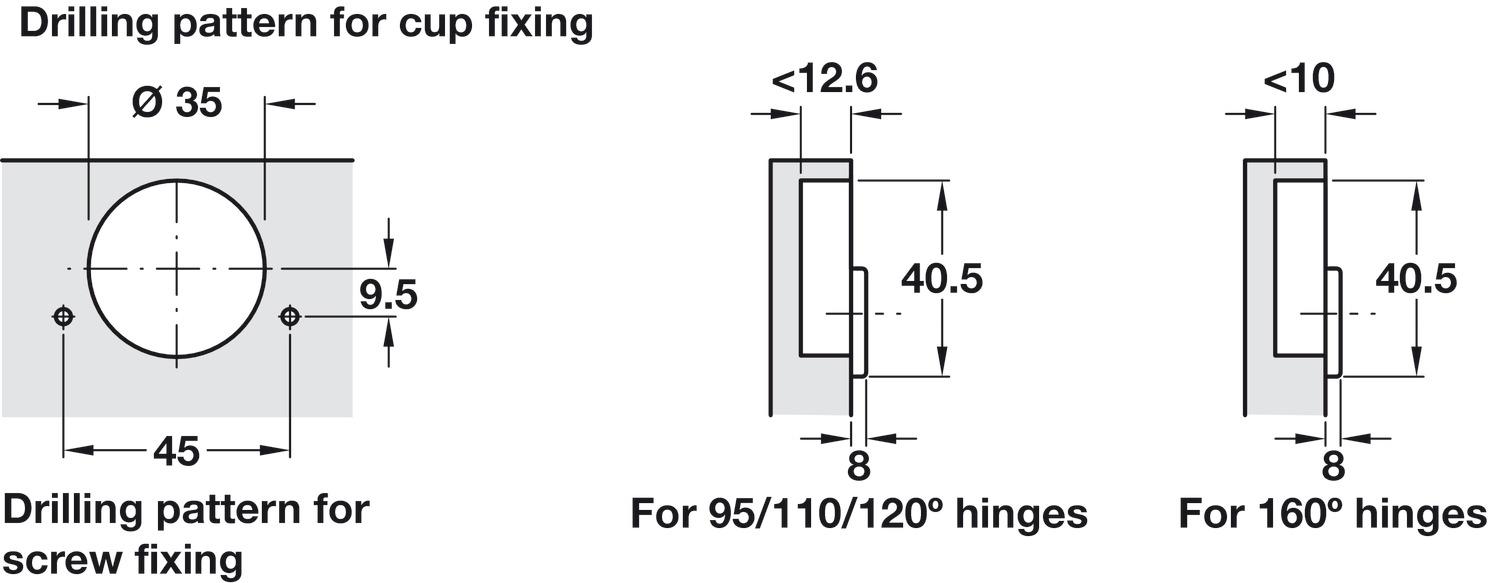

Drilling pattern
45/9.5 mm

Colour/finish
nickel

Model
Tiomos

Material
Steel, Hinge arm: Steel

Installation
Door to cabinet without tools (clip system)

Door processing for assembly
Cup drilling

Adjustment facility
Side adjustment ?2 mm, Height adjustment ?2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate

For wooden door thickness
16 – 24 mm

Cup drilling depth
12.6 mm

Model series
Tiomos 110?

Order reference
Order mounting plate and Hospa ? 3.5 mm countersunk screws separately
Order cover plates separately?
