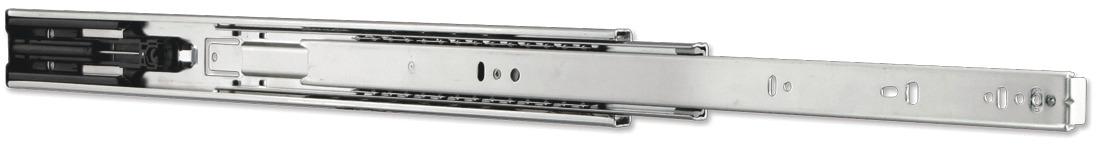

PRODUCT DETAILS

• Soft closing on last 45 mm of closing cycle
• Partially shielded mechanism prevents dust or debris from interfering with the operation

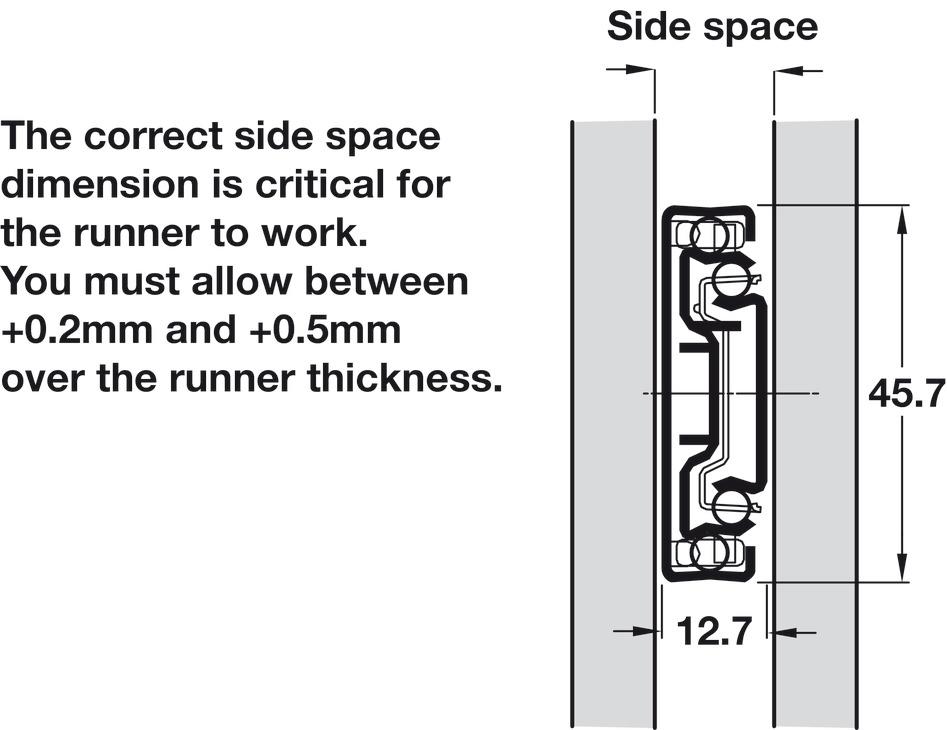

• 12.7 mm slide thickness
• Hold-in feature holds the closed drawer in
• Lever disconnect for easy installation and removal
• The cam drawer adjust offers installers a simple, yet precise mechanism for vertical drawer adjustment
• Not suitable for use with mounting brackets
• Operating temperature range 10-40 degrees C

Colour/finish
Zinc plated

Holding function
Hold-in

Removing the running track
with release lever

Material
Steel

Installation
Side mounting
Drawer width must not exceed slide length

Order reference
Order Varianta  5mm diameter cylindrical head and Hospa 4.0mm diameter pan head screws separately
Fixings: Max. head height 2.5 mm, ? 9.6 mm

Additional information attributes

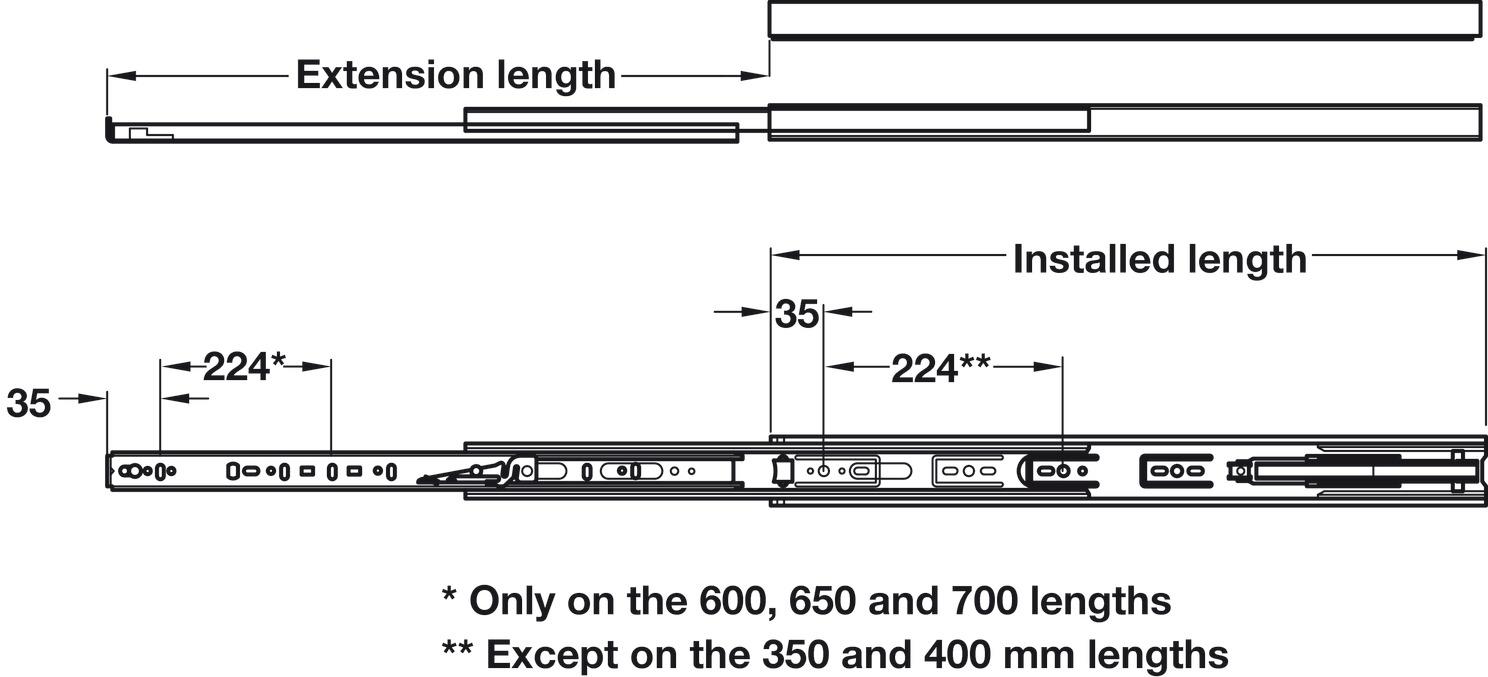

Please note max.drawer width to be used. Drawer width should not exceed installed length
Not for lateral file drawer applications or where the drawer is wider than it is deep

Pack size
1 pair
