PRODUCT DETAILS

• Featuring revolutionary tool less 4D adjustment which gives vertical tilt, side to side and depth adjustment (ideal for perfect allignment and accurate gaps, for inframe and lay on applications)
• 100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawer
• Improved soft close function - with liquid in damper to give continuous soft close
• 40 kg capacity as standard, so ideal for the majority of drawers, with 70 kg option available for very larger drawers
• Incredibly stable with the lowest deflection rates available
• Also available as add on push to open cartridge for handleless applications using soft close runner, Tipmatic cartridge and accessories
• For use with Vionara drawer system

Comfort functions opening/closing
Soft close fluid damped

Load bearing capacity
50-70 kg

Adjustment facility
Height adjustment + 3.5 mm
Side adjustment ? 1.5 mm
Tilt adjustment + 4 mm
Depth adjustment + 3.5 mm without tools using 4D clips

Material
Steel

Colour/finish
Zinc plated

Mounting
Slide-on

Installation
32 mm drilling pattern

Order reference
Varianta ? 5 mm countersunk screws, Hospa ? 4.0 mm pan head screws and optional accessories to be ordered separately

Pack size
1 set

Set includes:
1x pair runners

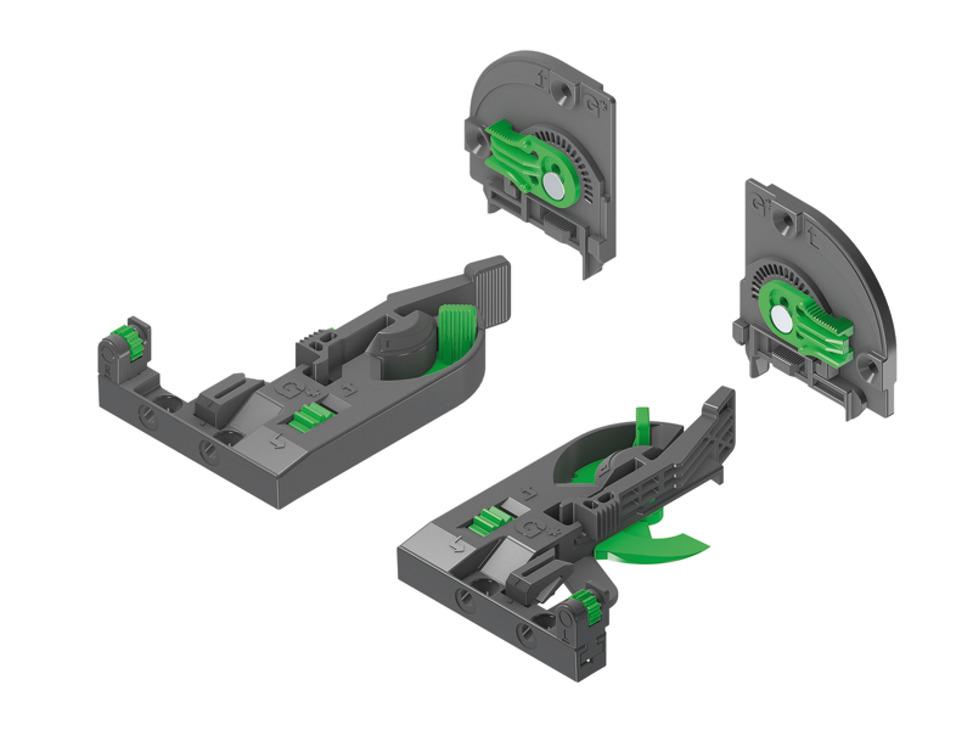

1x pair 4D fixing clips
