PRODUCT DETAILS

• Drawer Runners/ Glides/ Guides
• For lateral filing cabinets and storage drawers, platform mounting for shelves, heavy duty keyboards
• Brackets on drawer member for ease of assembly
• Hold-in feature holds the closed drawer in
• Silent movement
• Tested to 80,000 cycles

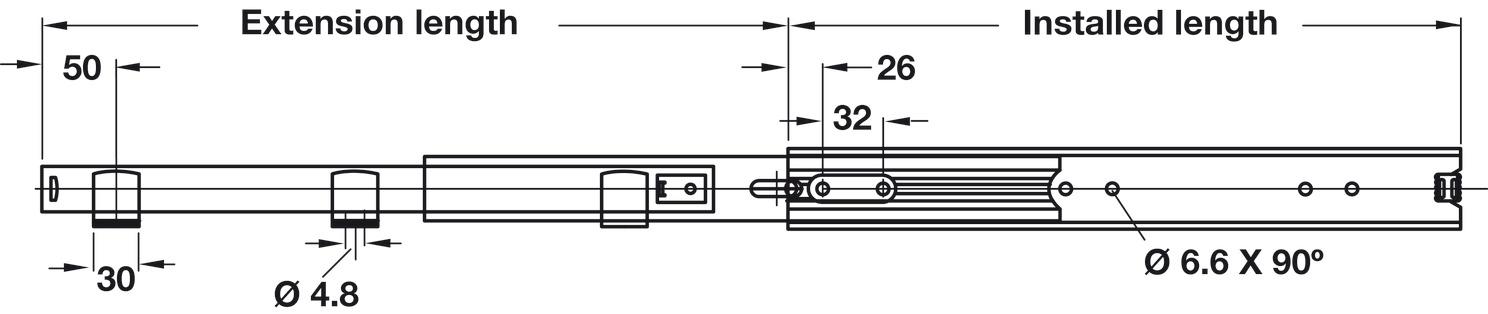

Installation length
500 mm

Extension length
547 mm

Load bearing capacity
60 kg

Mounting
Base mounted

Version
With 2 brackets, from installation length 550 mm with 3 brackets, with hold-in device for holding in closed position

Colour/finish
Zinc plated, Bright zinc plated

Type of pull out
Full extension

Holding function
Hold-in

Removing the running track
without release lever

Material
Steel

Installation

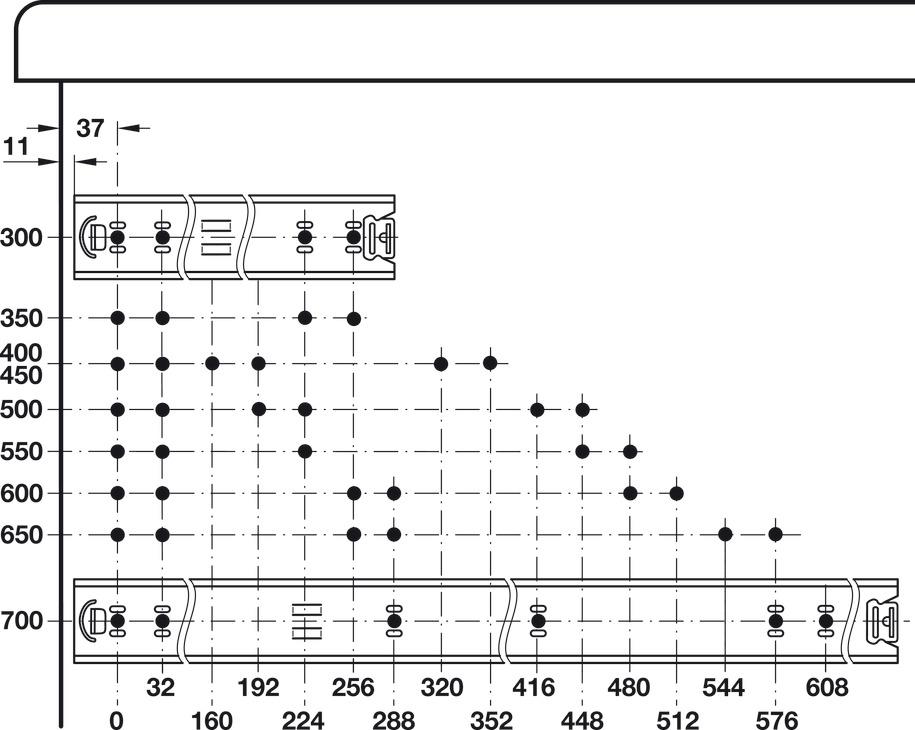

32 mm fixing hole pattern on the cabinet member

Order reference
Order Hospa ? 4.5 mm and Varianta ? 5 mm countersunk screws separately

Pack size
1 pair
