PRODUCT DETAILS

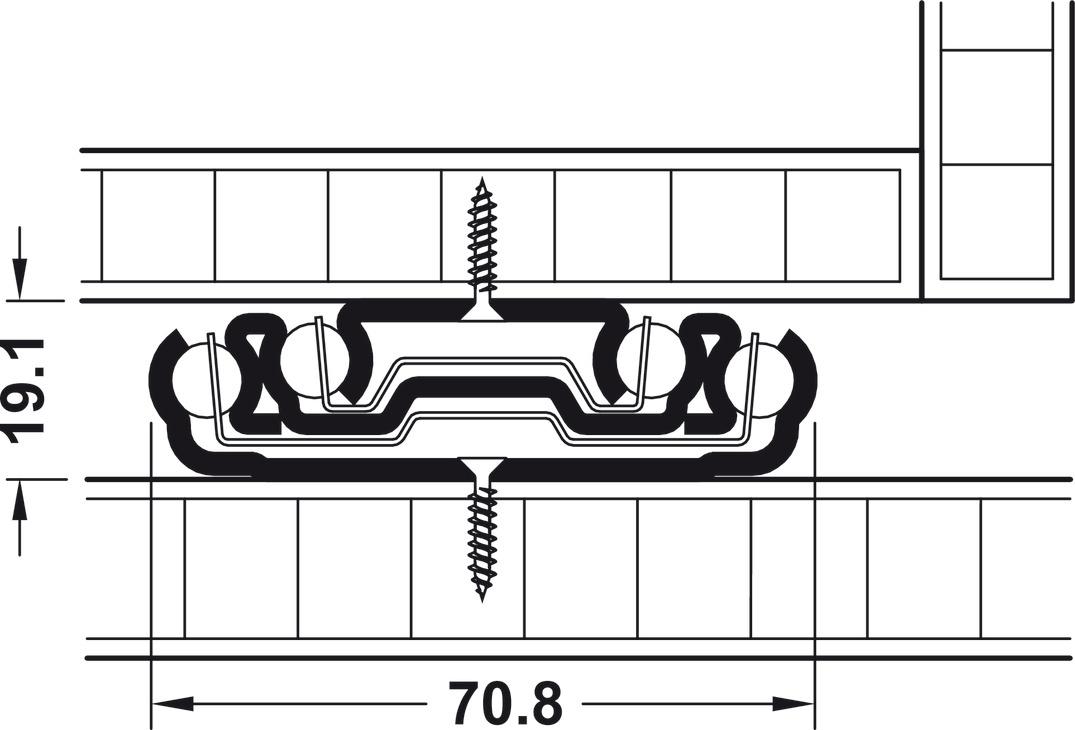

• Flat mounting the runner under the drawer will reduce the weight capacity to 25%
• Tested to 80,000 cycles

Mounting
Can be used on both sides

Version
Can be removed using release lever
Bridged ball retainer prevents retainer migration

Colour/finish
Zinc plated, Galvanized

Type of pull out
Full extension

Area of application
For right and left hand use
For drawers up to 1,000 mm wide

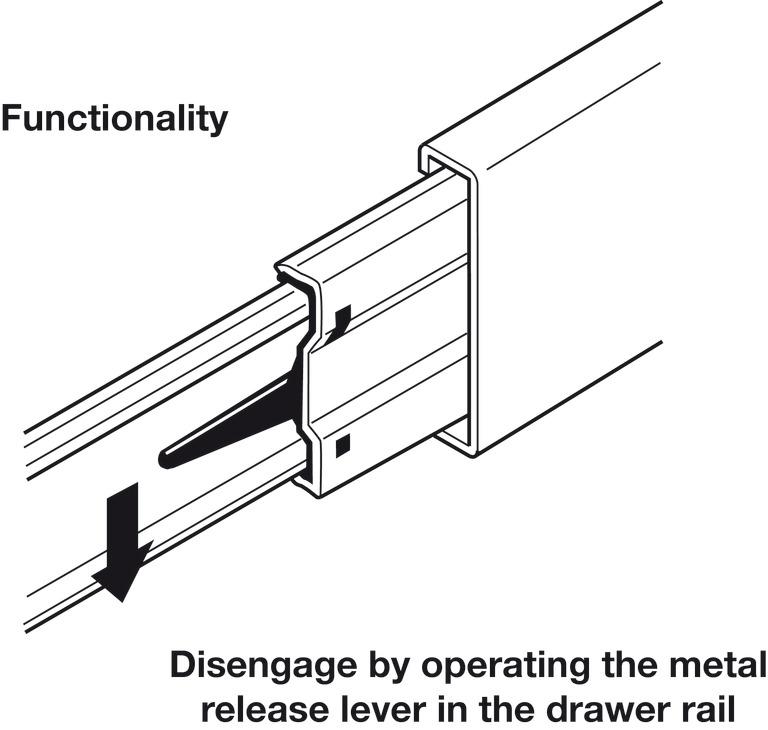

Removing the running track
with release lever

Material
Steel

Installation

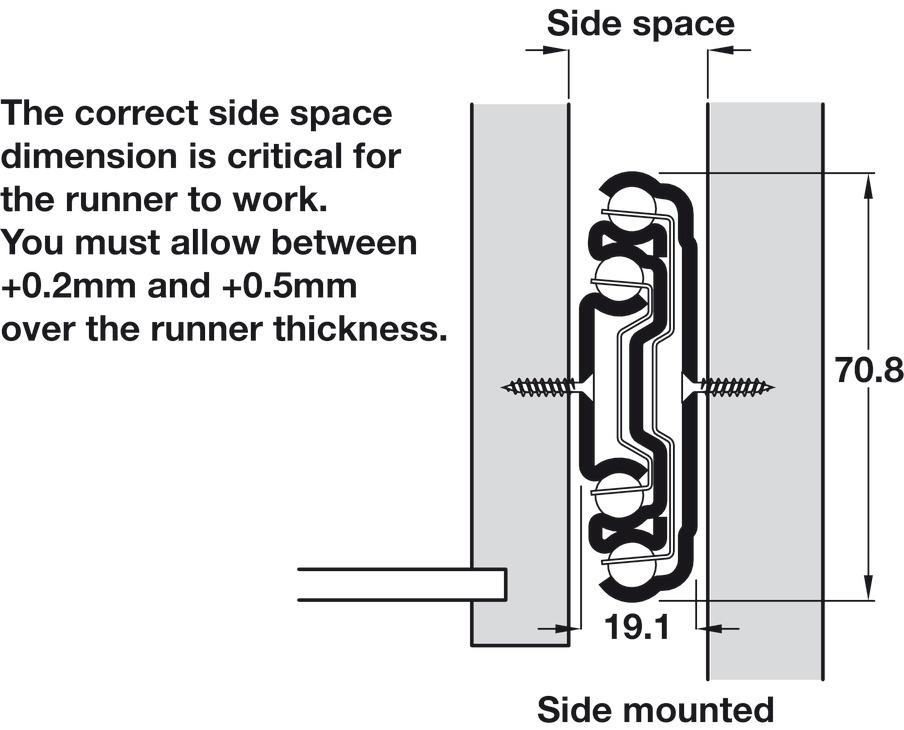

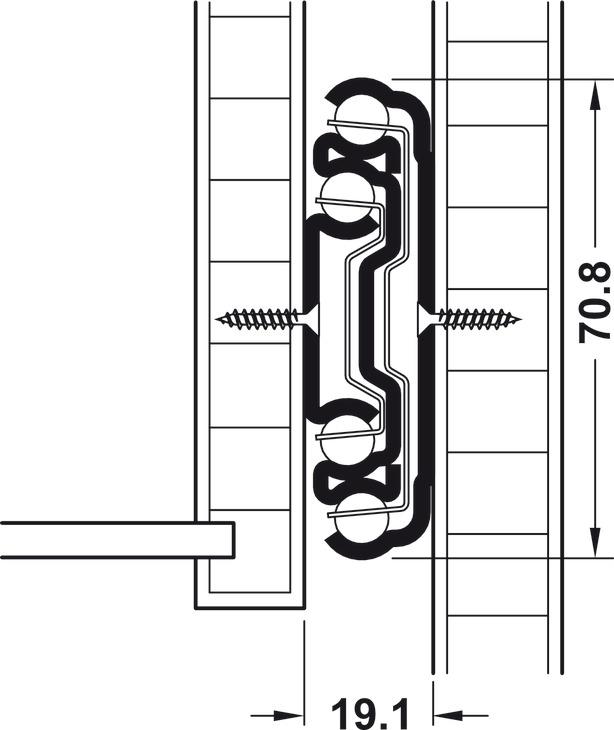

For screw fixing to cabinet, drawer or shelf, side or base mounted using brackets

Order reference?
Mounting brackets available, please order separately
Order Varianta ? 5 and Hospa ? 5.0 countersunk screws separately

Additional information attributes
Weight limit per pair based on length, weight limits reduce by 75% if flat mounted
We recommend that a centrally positioned pull handle is used on wide drawers

Pack size
1 pair

PDF Catalogue Page
