PRODUCT DETAILS

Hafele Free Flap - Stay Flap Fittings

• Hinge-less stay flap fittings sets:
• Two models Free Flap 1.7 and 3.15, designed for all common cabinet height and flap weight combinations
• Push to open catches available (see Related Products below)
• Convenient handling, even with heavy flaps
• Stylish and compact design provides easy access to cabinet hangers and is suitable for use in furniture with narrow depth
• Easy, efficient and time-saving processing
• Time saving installation provided by plugs, pre-mounted euro screws and clip fixing for front panel

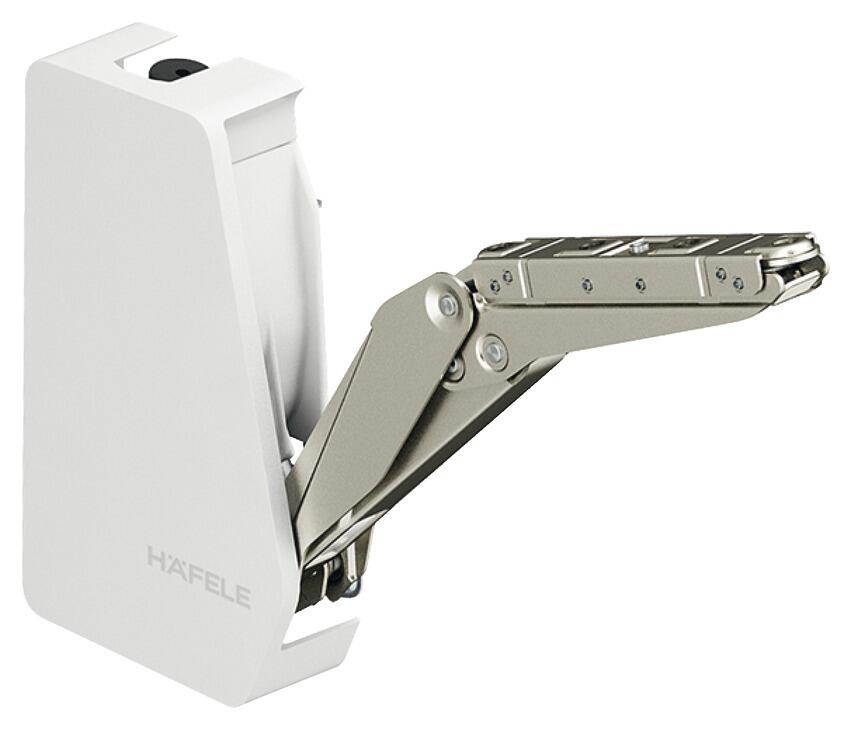

Free Flap 1.7

• For small, one-piece flaps made of wood or with aluminium frame

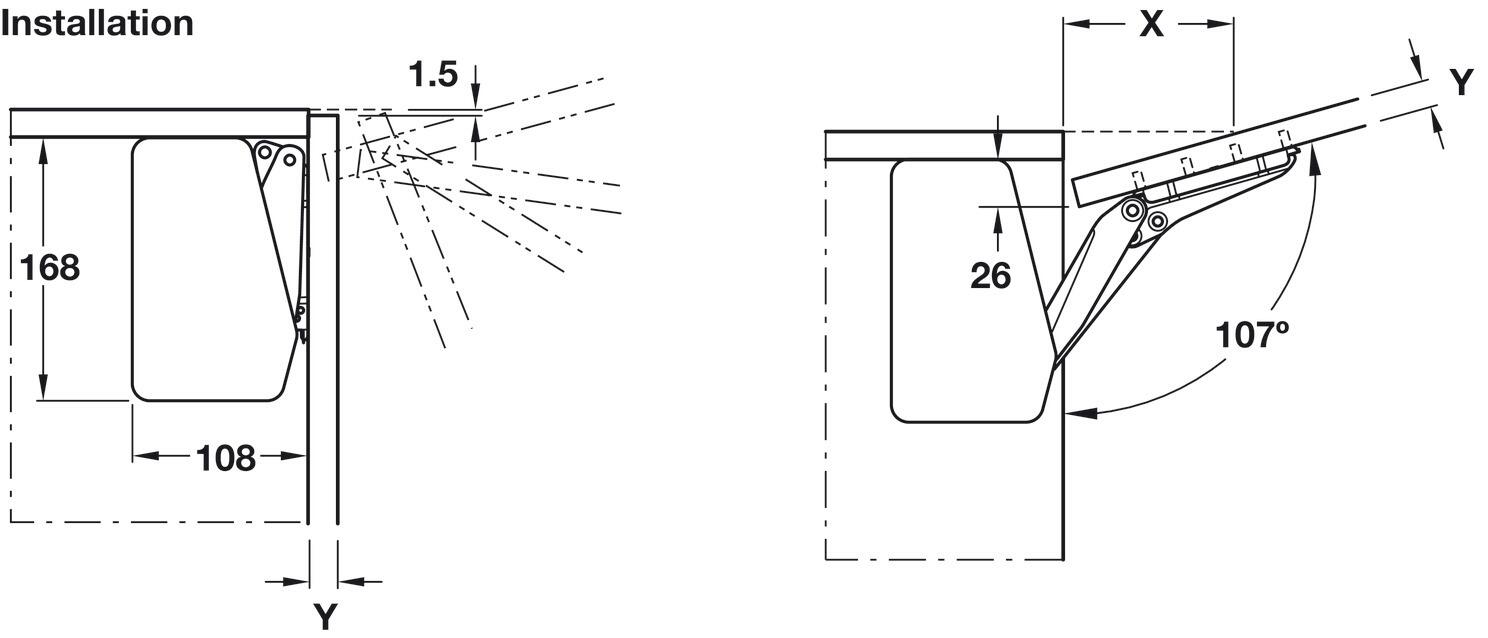

• 107 degree opening angle (can be reduced to 90 degree using opening angle restraint 372.91.499, see Related Products below)
• Fitting for screw fixing, flap clips onto pre-mounted screw on brackets
• Flap locks into any position
• Integrated soft close

Set includes
2x Stay flap fittings, 2x Cover caps for fitting, 2x Screw-on brackets
for wooden flaps or flaps with aluminium frame, from frame width
45 mm, 1x Paper drilling template and installation instructions

Height, side and tilting angle adjustment of front +-1.5 mm holding power
Nickel-plated steel flap fitting, plastic cover caps
Order fixing screws separately

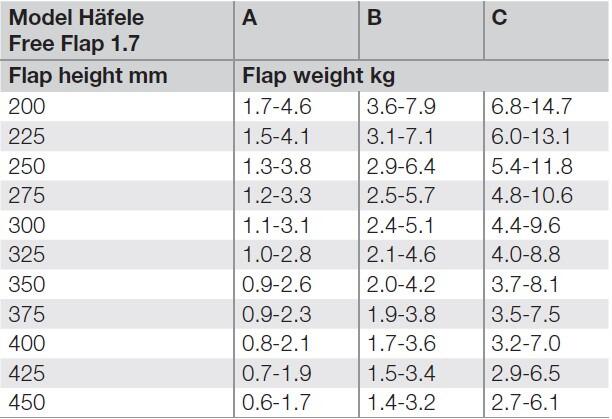

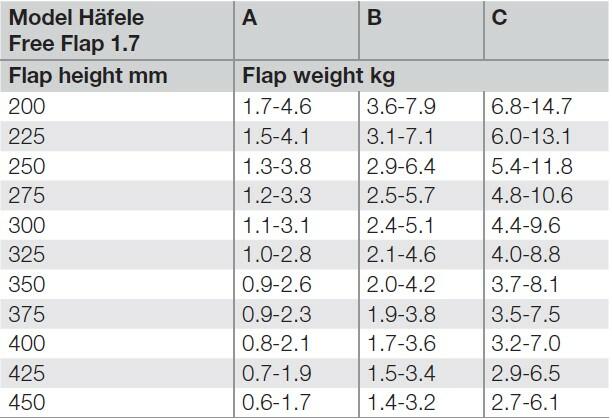

Sample measurements table for selecting the right model based on cabinet height and flap weight. We recommend to use the stronger fitting model when in doubt.
