Concealed Cup Hinge, 110 Degreed, For 90 Degree Blind Corner Applications, Hafele Metalla 310 - Hafele Metalla

Concealed Cup Hinge, 110 Degreed, For 90 Degree Blind Corner Applications, Hafele Metalla 310 - Hafele Metalla

Product code: 311.04.087

£0.00
£1.79
(
£1.49
ex VAT)
Earn18
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Blind corner 90 degree

QuantityPrice (inc VAT)
10 - 19£1.70
20 - 49£1.61
50 +£1.43
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

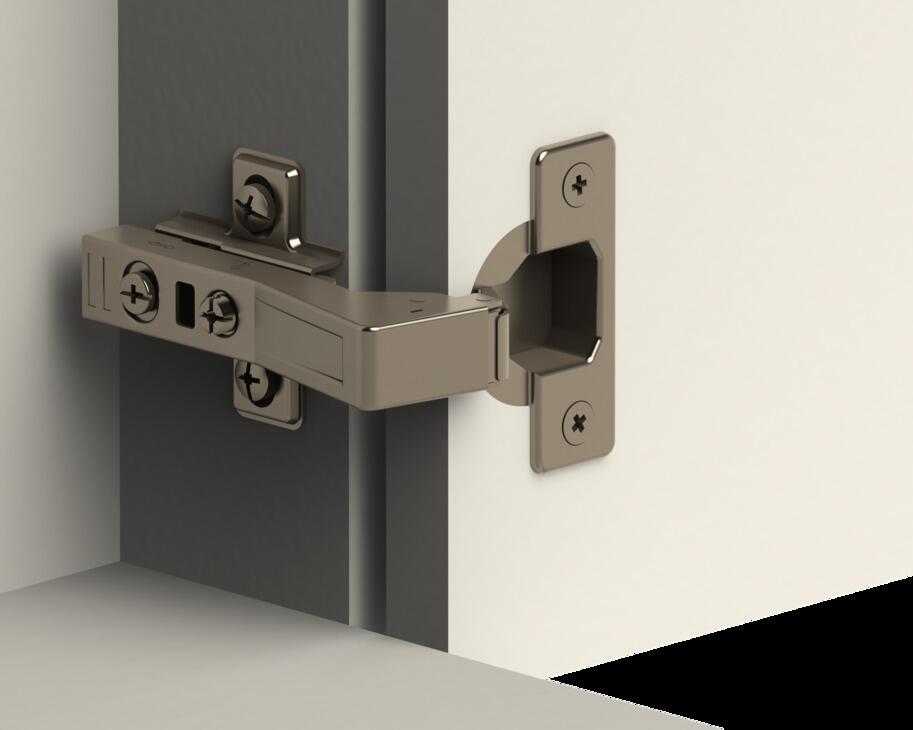

    With soft close, screw fixing cup, 45/9.5, nickel plated (needs mounting plate)

    For 90° blind corner applications

    Installation: Door to cabinet with quick fixing system
    With automatic closing spring

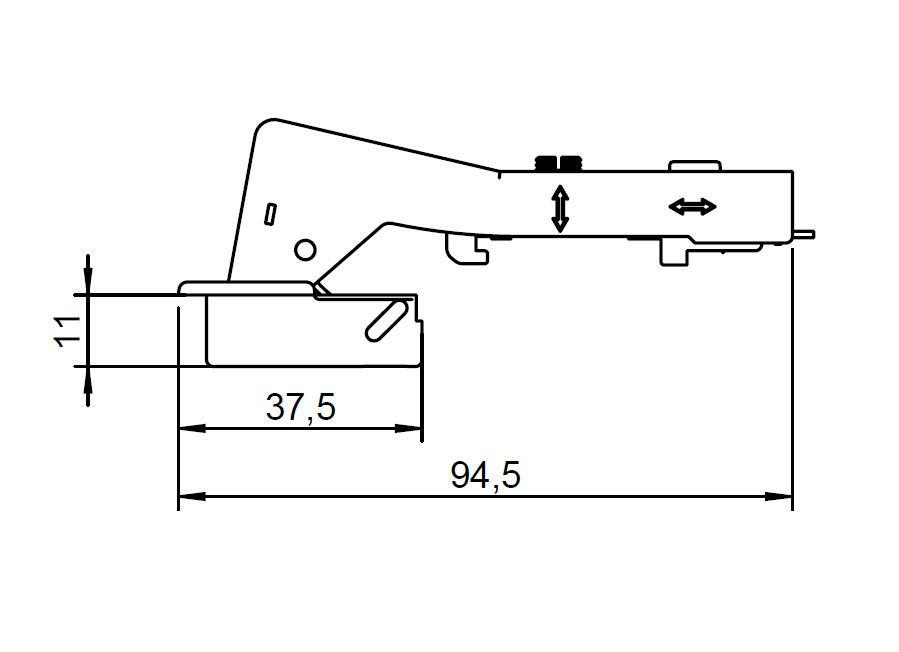

    Crank type:- Cranked

    Material:-Steel

    Opening angle :-90 degree

    Cup drilling depth :-12.00 mm

    Cup fixing :-for screw fixing

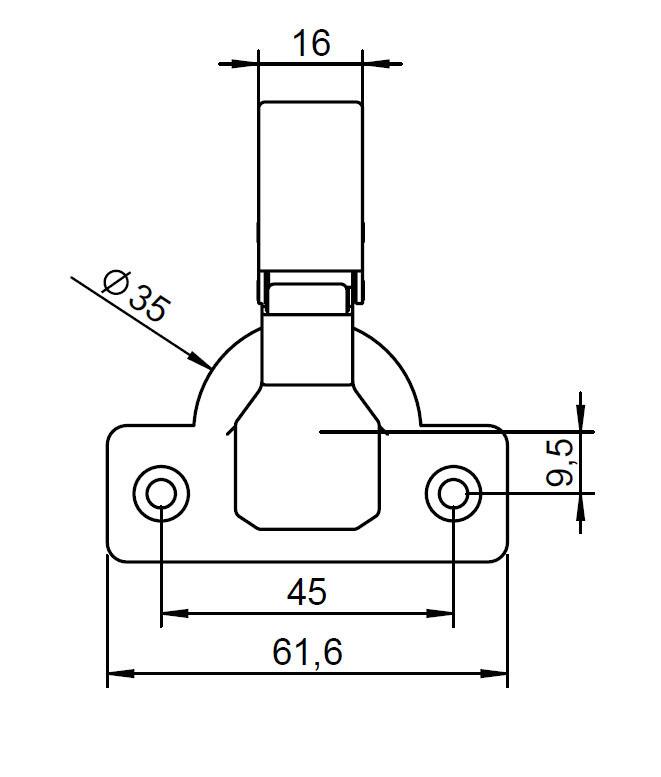

    Drilling pattern:-45/9.5

    Adjustment facility

    Side adjustment facility 3 mm, Height adjustment facility 2 mm, Depth adjustment facility ±2 mm

     Please see appropriate mounting plate in related products

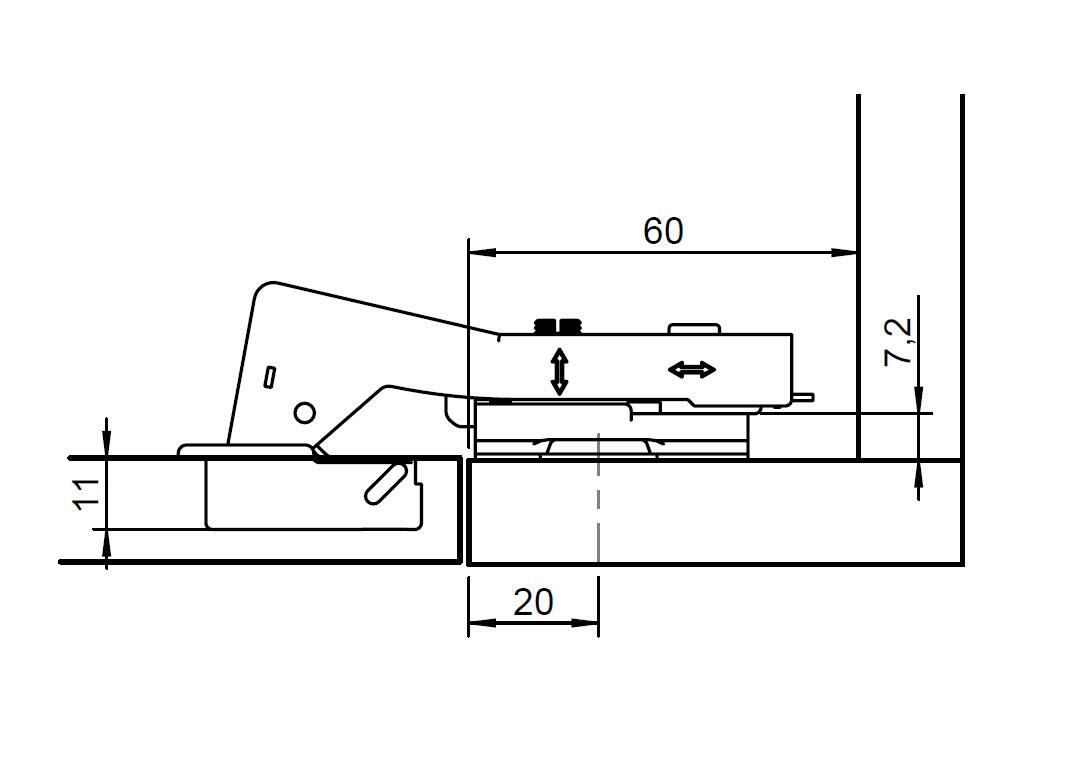

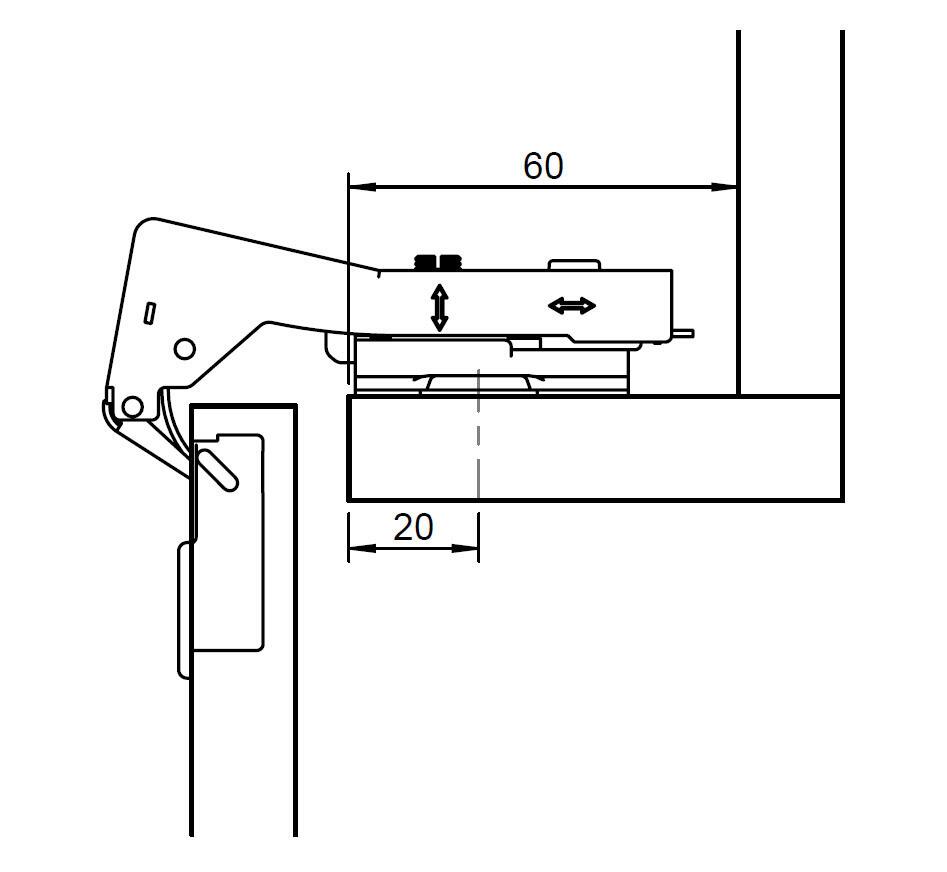

    Installation reference

    In order to mount the inner surface of the door flush with the inner surface of the blind corner, always use mounting plates with distance 6 mm
    The standard screw-on position of the mounting plate is 37 mm from the edge of the blind corner
