Concealed Cup Hinge, 95 Degree, Grass Nexis, For Angled Applications, Click On Arm (Without Plate) - Grass Nexis

Concealed Cup Hinge, 95 Degree, Grass Nexis, For Angled Applications, Click On Arm (Without Plate) - Grass Nexis

Product code: 322.29.531

£0.00
£9.72
(
£8.10
ex VAT)
Earn97
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

45 Degrees

QuantityPrice (inc VAT)
10 - 29£9.24
30 - 49£8.75
50 +£7.78
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • Tipmatic Plus compatible : The mechanical opening system for furniture without handles. A light touch is enough for doors to open as if by magic (please order separately)
    • ⌀ 35 mm cup
    • Soft-close compatible

    Version
    Click on

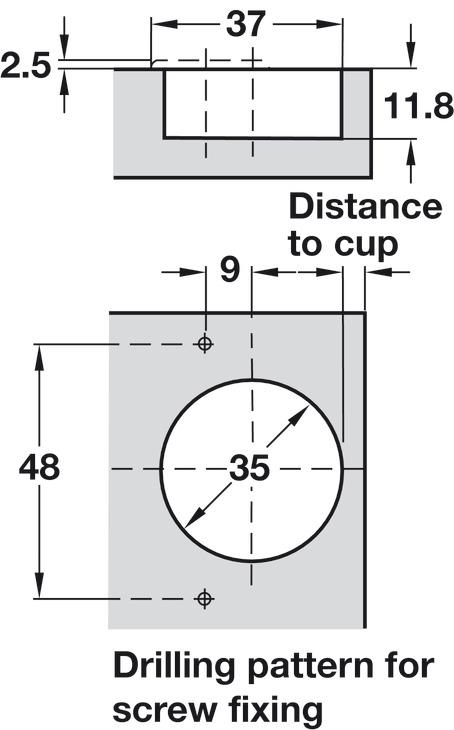

    Drilling pattern
    48/9 mm

    Cup fixing
    For screw fixing

    Mounting
    Mounting in drilled hole, Screw fixing

    Concealed hinge version

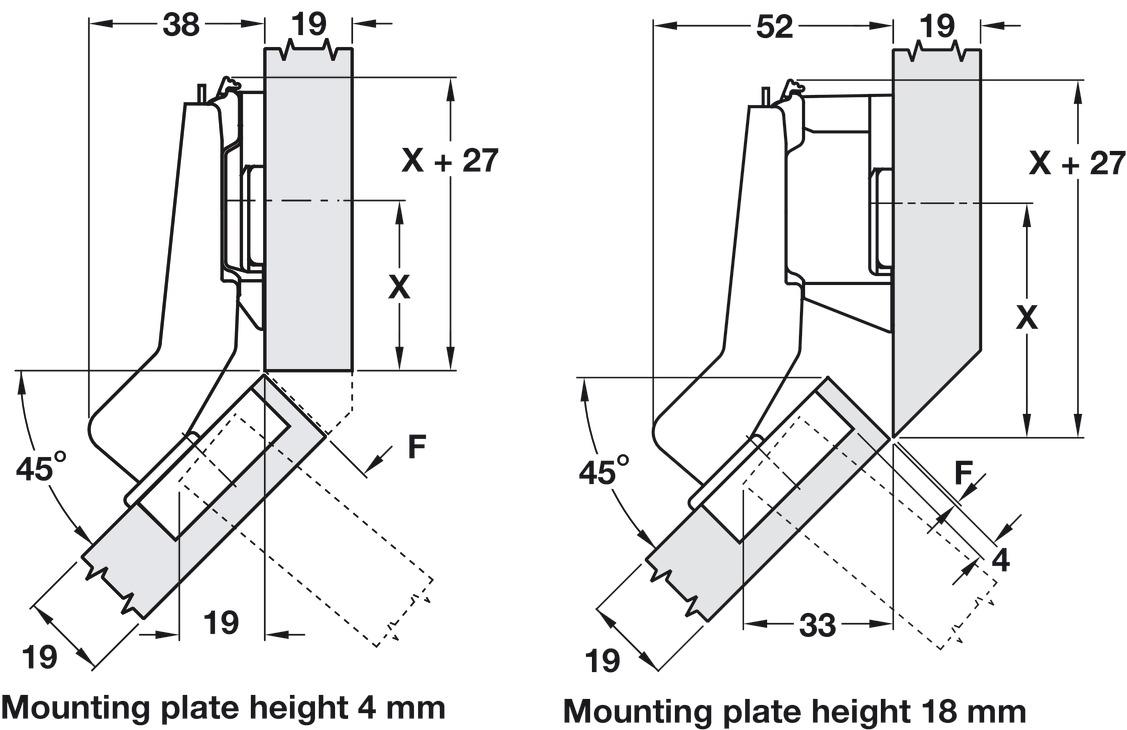

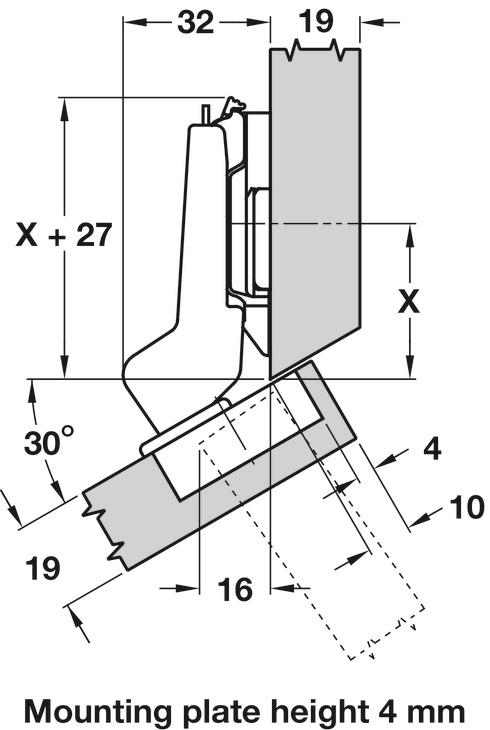

    Angled application

    Crank type
    High Cranked

    Material
    Steel, Hinge arm: Zinc alloy

    Door processing for assembly
    Cup drilling

    Cup drilling depth
    11.8 mm

    Model series
    Grass 95?

    Order reference
    Order Tipmatic Plus set for click on hinges separately for touch to open system
    Order mounting plate and Hospa ? 3.5 mm countersunk screws separately
    Order cover plates separately?
