- Concealed Cup Hinge, 95 Degree Standard, Sprung, With Dia. 40 Mm Cup, Slide On, Grass

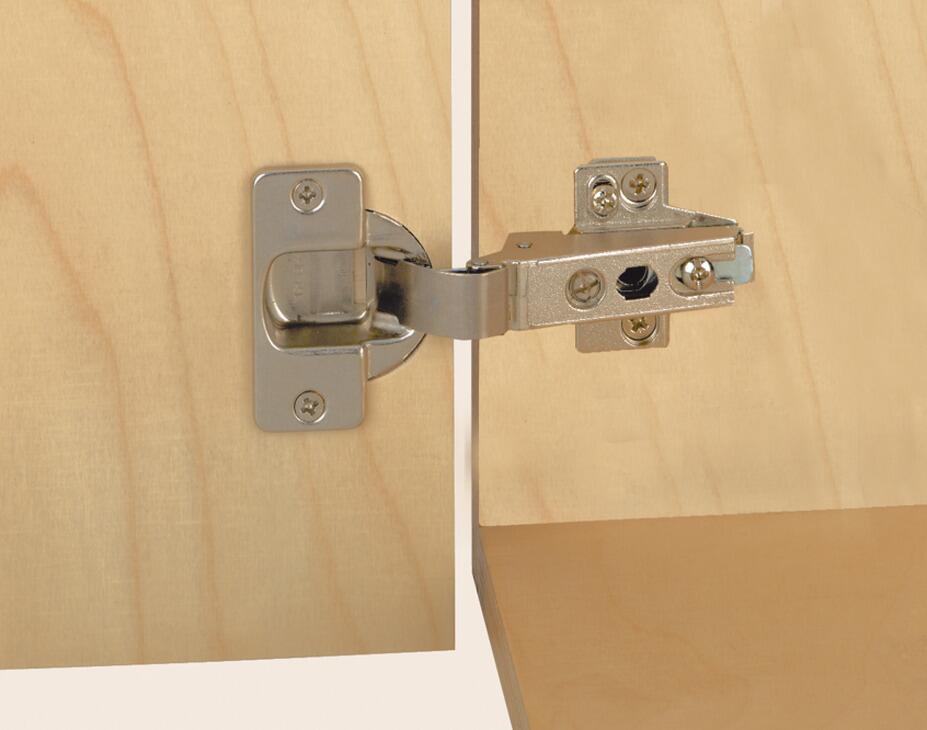

Concealed Cup Hinge, 95 Degree Standard, Sprung, With Dia. 40 Mm Cup, Slide On, Grass - Hafele
Product code: 323.13.607
£0.00
£2.71
(
£2.26
ex VAT)
Earn27
reward points
reward points
Please choose from the options below to show product code, price and availability
PRODUCT DETAILS

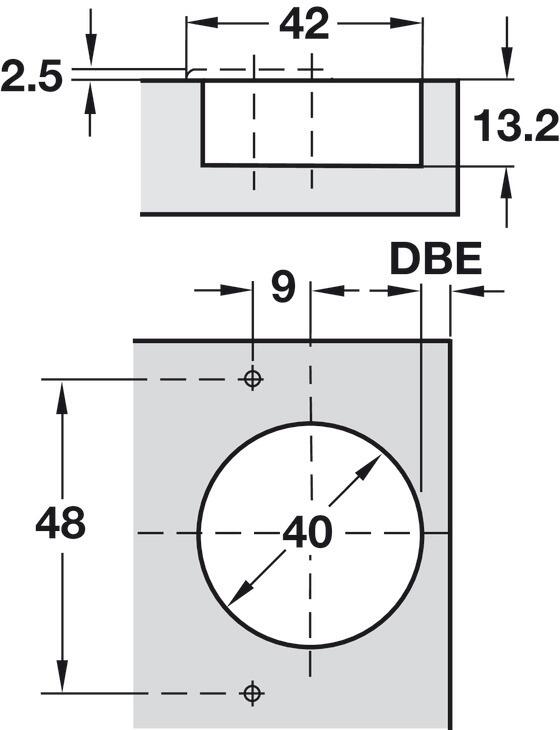

0 crank, screw fixing cup, 48/9- for overlaying cupboard doors
For standard applications
The 40mm diameter cup makes this an excellent choice for doors up to 38 mm thickness.Up to 38 mm door thickness (please carry out a trial for heavier doors)
This is a slide on to mountin plate model (older style) - after our stock reaches 0 this will be discontinued
