Concealed Cup Hinge, 110 Degree, Grass Nexis, Click On Arm, Sprung, Dowel Fixing (Without Plate) - Grass Nexis

Concealed Cup Hinge, 110 Degree, Grass Nexis, Click On Arm, Sprung, Dowel Fixing (Without Plate) - Grass Nexis

Product code: 322.17.580

£0.00
£4.30
(
£3.58
ex VAT)
Earn43
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Full overlay

QuantityPrice (inc VAT)
10 - 29£4.08
30 - 49£3.87
50 +£3.44
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For standard applications
    • ⌀ 35 mm cup
    • Soft-close compatible

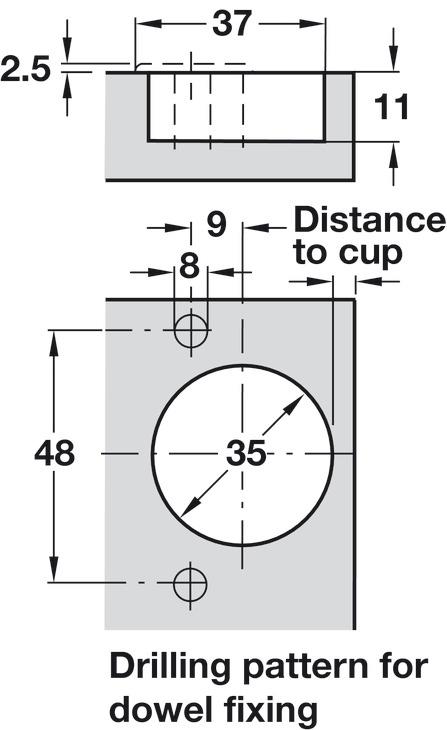

    Drilling pattern
    48/9 mm

    Cup fixing
    For screw fixing

    Mounting
    Mounting in drilled hole, Screw fixing

    Distance to cup min.
    3 mm

    Distance to cup max.
    7 mm

    Material
    Steel, Hinge arm: Steel

    Door processing for assembly
    Cup drilling

    For wooden door thickness
    Up to 22 mm

    Cup drilling depth
    11 mm

    Model series
    Grass 110?

    Order reference
    Wider range of mounting plates available, please order separately
    Order Hospa ⌀ 3.5 mm raised head countersunk screws separately
