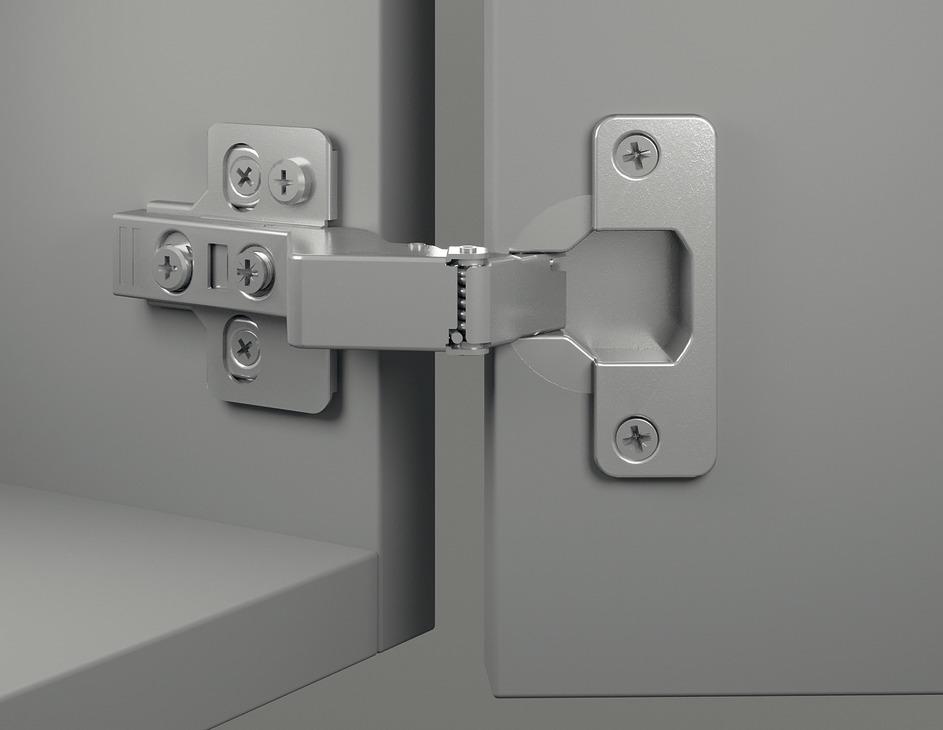

Concealed Cup Hinge, For 30 And 45 Degree Corners, 110 Degree Opening, Hafele Metalla 310, Quick Fixing Arm, Sprung (Without Plate) - Hafele Metalla

Concealed Cup Hinge, For 30 And 45 Degree Corners, 110 Degree Opening, Hafele Metalla 310, Quick Fixing Arm, Sprung (Without Plate) - Hafele Metalla

Product code: 311.04.172

£0.00
£1.79
(
£1.49
ex VAT)
View video
Earn18
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

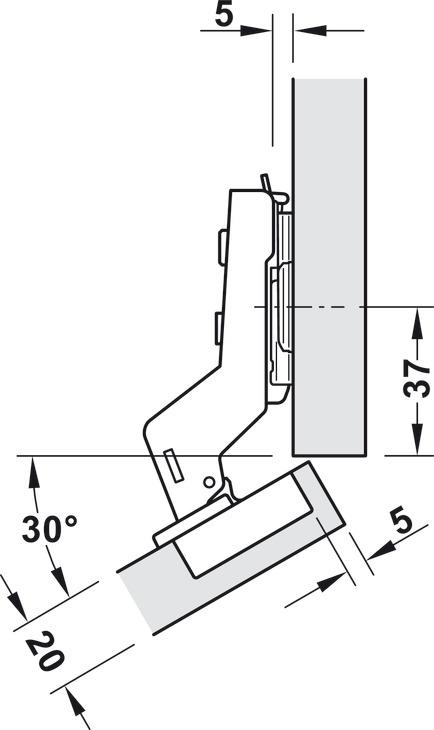

30 degree angle cabinet

QuantityPrice (inc VAT)
10 - 19£1.70
20 - 49£1.61
50 +£1.43

Bulk Buy Discounts for:

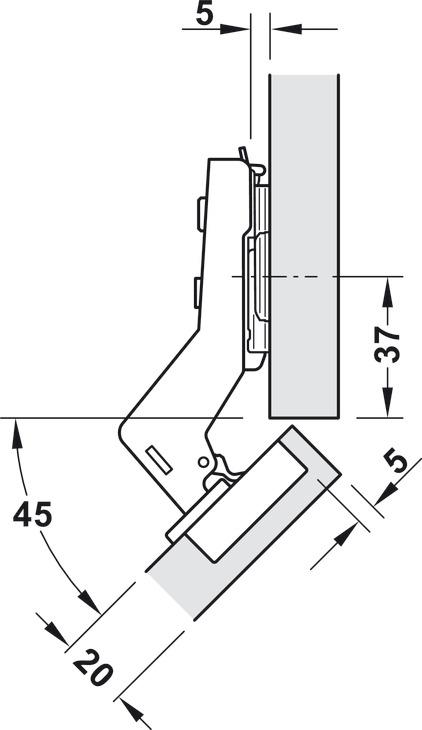

45 degree angle cabinet

QuantityPrice (inc VAT)
10 - 19£1.70
20 - 49£1.61
50 +£1.43
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Version
    With automatic closing spring, With soft closing mechanism, SM quick fixing system

    Drilling pattern
    45/9.5 mm

    Cup fixing
    For screw fixing

    Colour/finish
    nickel

    Model
    310 A/SM

    For door material
    Wood

    Concealed hinge version
    Angled application 30 or 45 degree options

    Material
    Steel, Hinge arm: Steel

    Installation
    Door on cabinet for sliding on with slide-on system A or quick fixing with SM quick fixing system

    Door processing for assembly
    Cup drilling

    Adjustment facility
    Side adjustment ?3 mm Height adjustment 2 mm (via mounting plate) Depth adjustment 2 mm

    Cup drilling depth
    12 mm

    Hafele Lifetime Guarantee
    25 years

    Model series
    Metalla

    Order reference
    Order mounting plate and Hospa  3.5mm guage countersunk screws separately
    Order cover plates separately

    Pack size
    1 piece
