PRODUCT DETAILS

Complete Set, for Single Pivot Sliding Cabinet Doors, Soft Closing, Hawa-Concepta

This is the new Pivot sliding system from HAWA for high quality cabinet applications and wall recesses which soft closes.
The omission of a floor channel offers optimum flexible room utilisation with no obstructions, and the clever design means installation is simple and straightforward, with all adjustments carried out from the front, meaning no access panels are required.
The door is pulled into the pocket automatically.

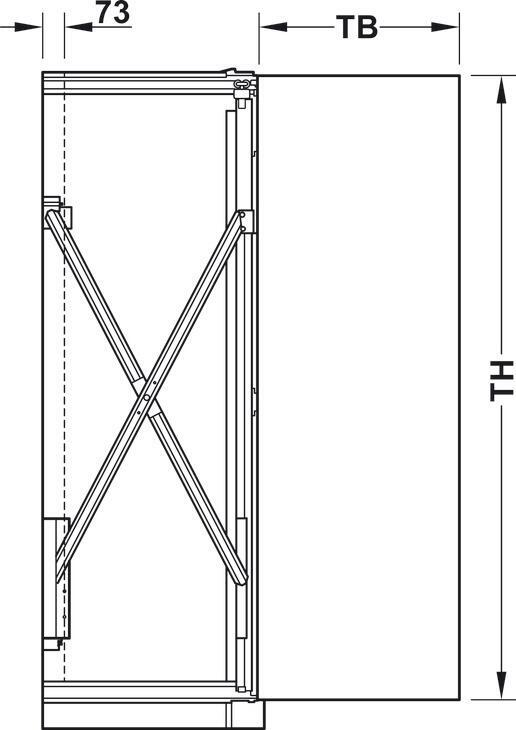

The unique scissor technology allows large and heavy doors to be implemented.
Wall recesses are concealed without the need for a cabinet
All components are screwed onto the intermediate panel

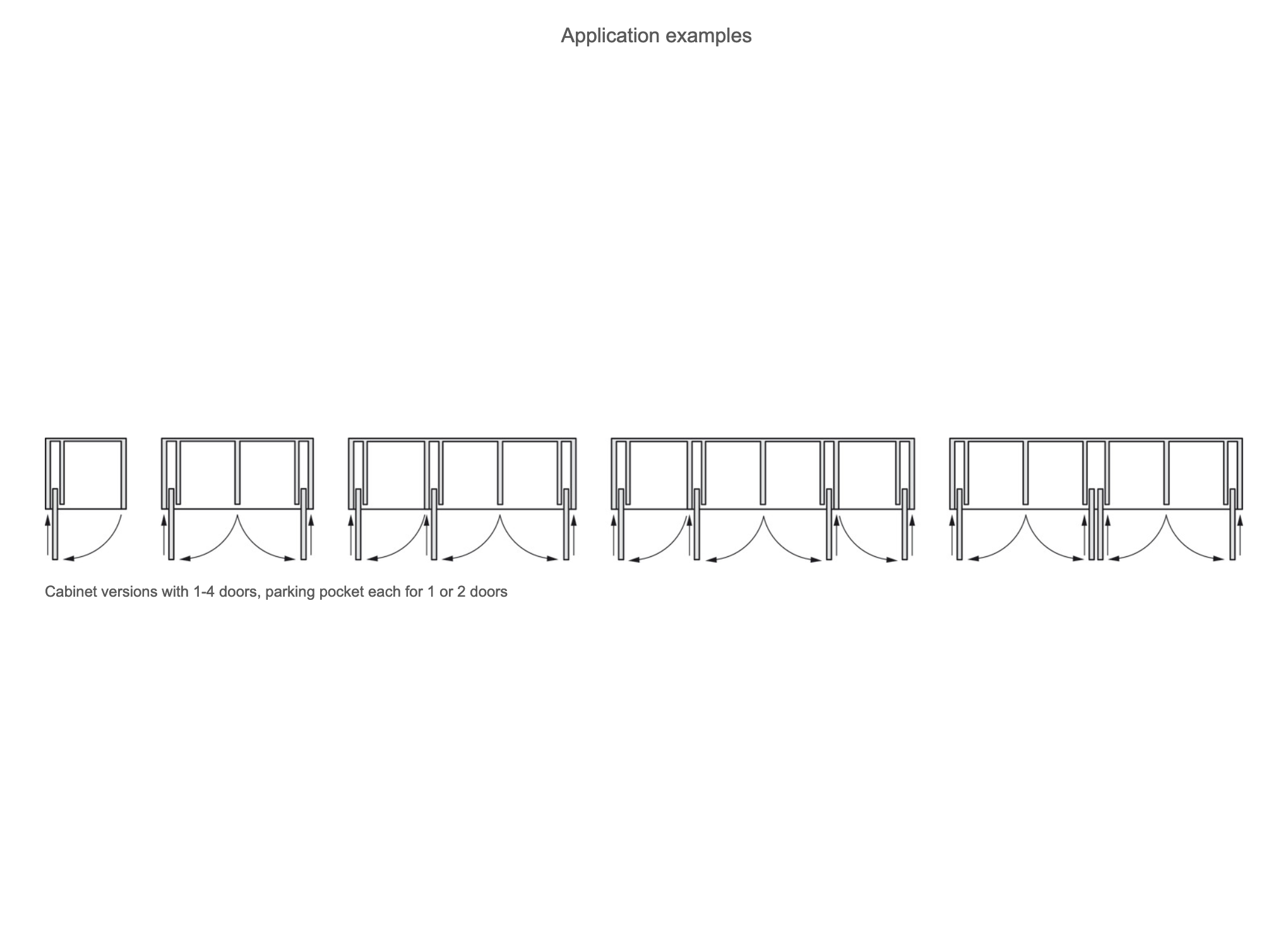

The same set can be used for either right or left applications
Take care as the pull out unit is extremely sensitive - Please read fitting instructions carefully)
HAWA-Concepta fitting sets come with installation drawings, available seaparately on request (HAWA-Concepta 25/30 - Drawing reference 25737 and HAWA-Concepta 40/50 - Drawing reference 25738)

For door material;:-Wood

For door width;-300 – 900 mm

Version:-Hinges with soft closing mechanism

For door thickness:-19 – 30 mm

Note on Door Thickness -Rebated: 30–50 mm

Running gear version :-40/50 kg: 2 rollers

Running gear guided by:-Ball bearing

Installation :-Screw fixing

Order reference

Connecting bracket for wood, for external or cabinet body connections
Length 650 mm: Cat. No. 408.30.091
Length 900 mm: Cat. No. 408.30.092

Connecting bracket for wood, for cabinet body connections, for 2 doors

Length 26 mm: Cat. No. 408.30.095
Length 650 mm: Cat. No. 408.30.093
Length 900 mm: Cat. No. 408.30.094
