Accuride 1432 Pivot Sliding Door Runners Set, For Cabinet Doors - Hafele

Accuride 1432 Pivot Sliding Door Runners Set, For Cabinet Doors - Hafele

Product code: 408.24.530

£0.00
£124.32
(
£103.60
ex VAT)
View video
Earn1243
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

303 mm Installed Length - 210 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£118.39
4 +£105.24

Bulk Buy Discounts for:

354 mm Installed Length - 261 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£119.64
4 +£106.35

Bulk Buy Discounts for:

405 mm Installed Length - 312 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£120.77
4 +£107.35

Bulk Buy Discounts for:

456 mm Installed Length - 343 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£121.28
4 +£107.80

Bulk Buy Discounts for:

506 mm Installed Length - 394 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£123.11
4 +£109.43

Bulk Buy Discounts for:

557 mm Installed Length - 445 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£124.20
4 +£110.40

Bulk Buy Discounts for:

608 mm Installed Length - 496 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£125.68
4 +£111.71

Bulk Buy Discounts for:

659 mm Installed Length - 546 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£131.95
4 +£117.29

Bulk Buy Discounts for:

710 mm Installed Length - 597 mm Extension Length

QuantityPrice (inc VAT)
2 - 3£133.70
4 +£118.84
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

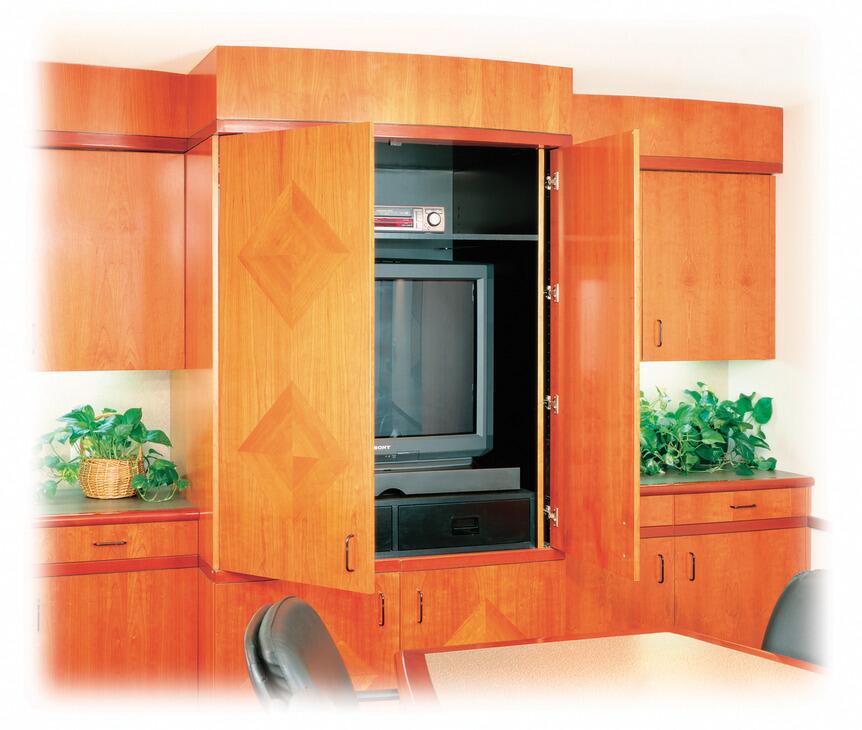

    Used primarily to hide cupboards/appliances.

    Cable system for synchronised slide operation

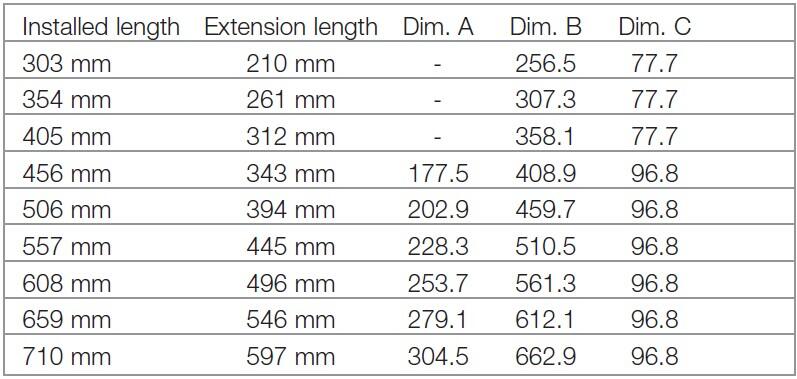

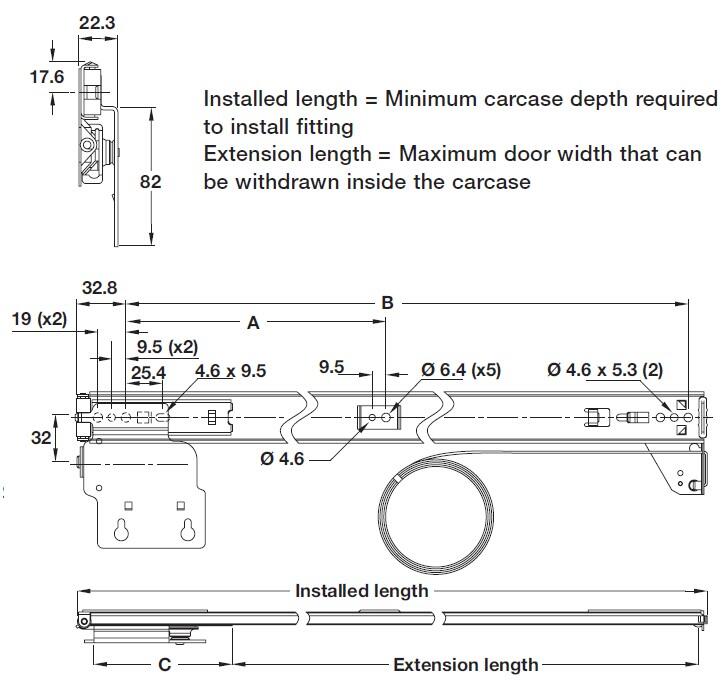

    • Installed length = Minimum carcase depth required to install fitting
      Extension length = Maximum door width can be withdrawn inside the carcass

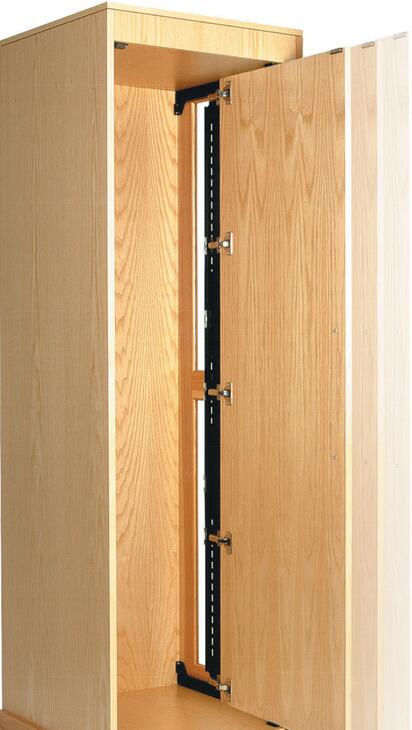

    For Sliding doors out of cabinets/cupboards and swinging shut on hinges

    • For vertical use
    • Black zinc-plated steel
    • For panel thickness 19-32 mm on inset door
    • For panel thickness 19 mm on overlay doors
    • Maximum door weight 34 kg
    • Door panel width 254-660 mm
    • Door panel height 914-2300 mm
    • Cable system for synchronised slide operation

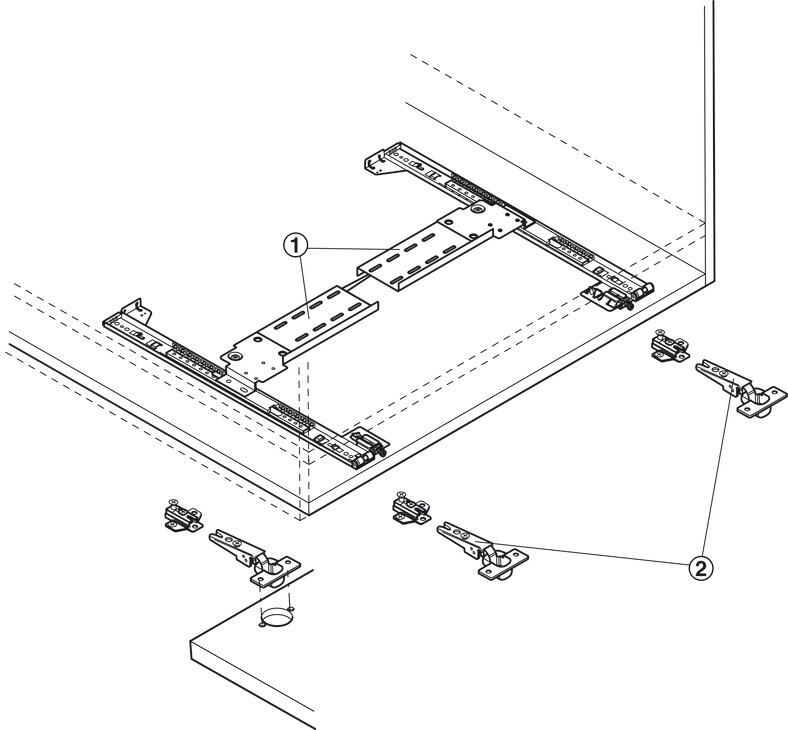

    • Order hinges and carrier strip set separately (see Related Products below, or contact us for advice)

    NOTES

    • Will only cover a maximum of 11.7 mm overlay on an overlay door application
