Complete Set, For Pivot Sliding Cabinet Doors, Hafele Slido F-Park72 50a - Hafele

Complete Set, For Pivot Sliding Cabinet Doors, Hafele Slido F-Park72 50a - Hafele

Product code: 408.45.004

£0.00
£792.27
(
£660.23
ex VAT)
Earn7923
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Unique soft close pivot system for single leaf doors that open and pivot into a pocket.
    For left and right hand use

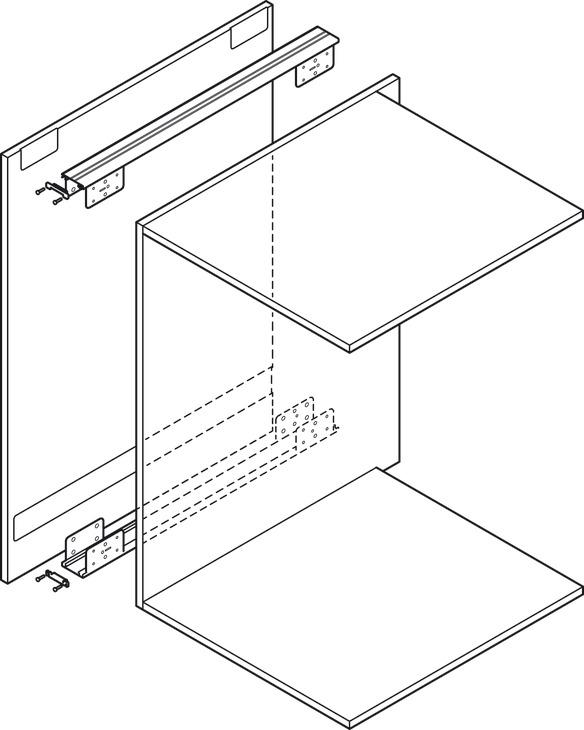

    Set for 1 door comprises of pivot assembly with backing panel, hinges and sliding mechanism
    Running gear guided by ball bearing mounted runners

    For door width:200-700mm

    Number of rollers:- 2

    Version:-Hinges with integrated soft closing mechanism

    Running gear guided by:-Hinges with integrated soft closing mechanism

    Note on door thickness:-Parking pocket for 1 door: 18-30 mm
    parking pocket for 2 doors: 18-25 mm

    Model series:- F-Park72 50A

    Area of application:-Inset cabinet and wardrobe doors

    Material/finish :-Rollers: Plastic

    Note on depth:- Cabinet depth 560/665 mm + door leaf thickness

    Installation reference:-For left and right hand use

    Brand:-Slido

    Note

    The mechanisms are ready for installation, it is not necessary to remove or prepare components.The total door leaf plus hinge should be fixed to the aluminium bar of the system

    With infront constructions, the side panel must be removable for mounting the fittings
    With recess constructions, the side panel with thickness of ≥30 mm must be removable for mounting the fittings

    ?CATALOGUE PAGE


    Please order connecting profile set for parking pocket and door catch separately (in related products)
