Product code: 408.30.713

£0.00
£1,130.91
(
£942.43
ex VAT)
Earn11309
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS


    Please use our sizing calculator at the link provided to ensure you order the correct product. Orders placed for the wrong part are not eligible for a refund due to the precise nature of packaging being vital for preventing damage and aiding installation.
    https://configurator.hawa.com/configurator/product-selector.html

    With Handle System

    The clever design of Hawa-Concepta III, with re-developed technology means installation is simple and straightforward, with all adjustments carried out from the front, meaning no access panels are required. The omission of a floor channel offers optimum flexible room utilisation with no obstructions. Pull version for front panels with handles, and integrated soft closing mechanism.

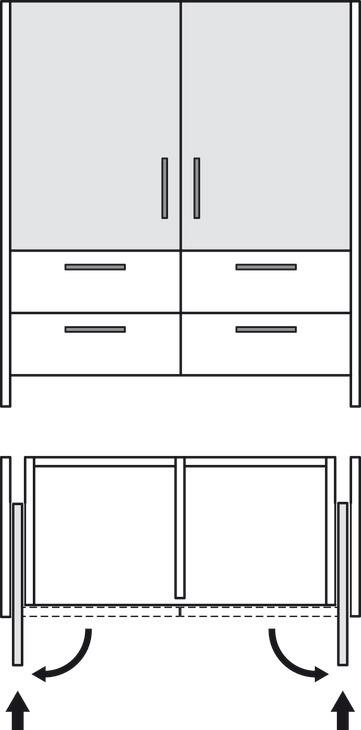

    • When the door is pushed gently into the pocket, the door is pulled to its final open/retracted position when the soft close mechanism is activated
      Suitable for room partitioning solutions as there is no need for a base panel and top panel in wall recesses

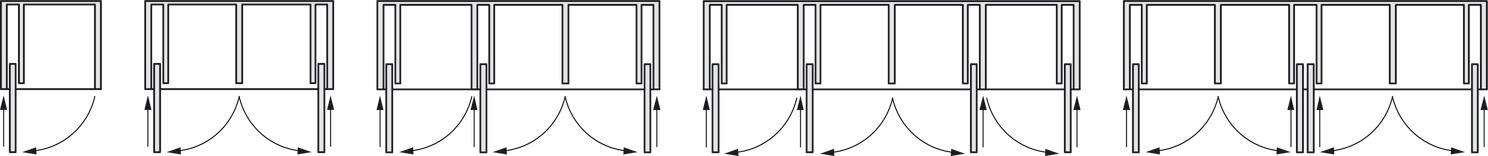

      Sets are handed for left and right hand use
      Wall recesses are concealed without the need for a cabinet
      For front panels with handles
      Straightforward installation thanks to a high degree of preassembly
      Ergonomic support for smooth, even movement
      All adjustments are carried out from the front
      All components are screwed onto the intermediate panel

    • For door material:-Wood

       For door thickness:-18-26mm


      For door width:440-750mm

      Running gear guided by:Ball Bearing

    •  Order reference



      Planofit door straightening system must be used with HAWA-Concepta to add rigidity to wooden doors, must be ordered separately
      Order connector sets and connector connecting profile separately

    • Supplied with



      3x Slot nuts
      1x Hinge mounting plate
      3x Concealed hinge
      1 set for concealed hinges
      2x Magnetic guide profile
      1 set Euro screw set

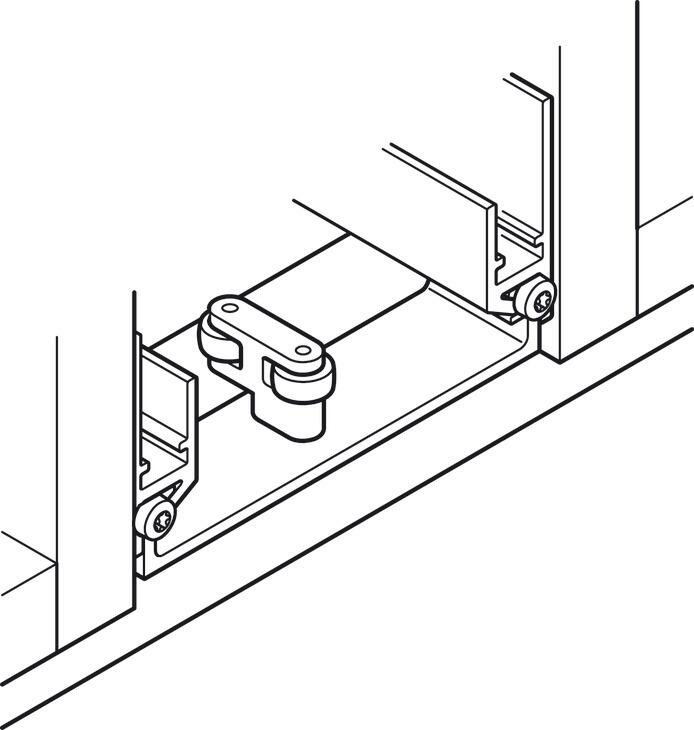

      1x Bottom guide track, left
      1x Top running track, left
      1 set Countersunk screw set
      1 set Adjusting tools set
      1x Pull slide-in unit, left
      1x Pull end stop bracket
      1x Soft closing mechanism with end stop
      1 set Pull set of cover caps for left hand stop
      1x Upright profile, length 1974 mm
