There are many different types of drawer runners/slides/glides/rails for many different applications, and this can be confusing when trying to replace or renew for an existing drawer box. However, identifying a few key features can simplify the selection process and narrow down to the correct range.

Here are a few brief pointers to the most common runners that customers regularly require - either to replace or to use for new units.

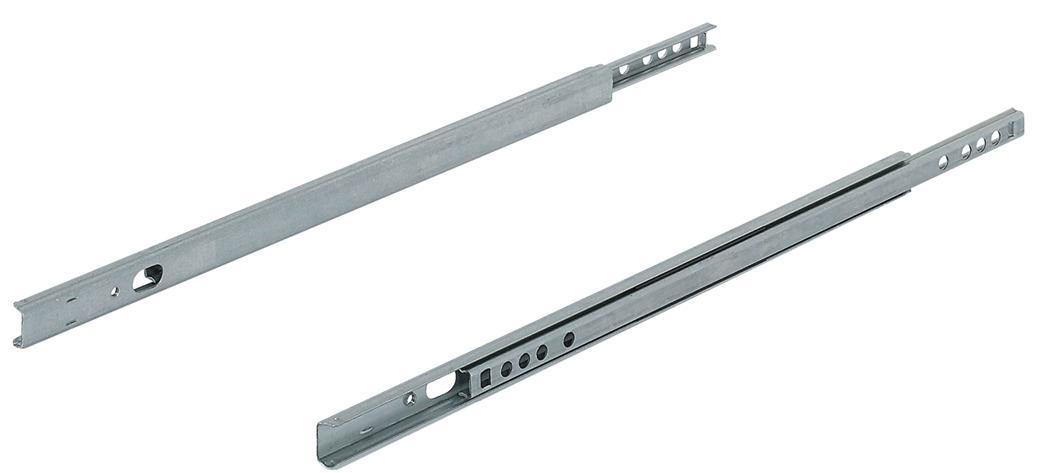

Narrow metal ball bearing runners Ikea/old MFI type lightweight metal ball bearing narrow runners fitting into a drawer box that’s been grooved out (most common to break if they are pulled too far!): 17mm Goove Ball Bearing Runners (10 kg)
Roller runners White roller runners (with nylon wheels) that are mounted at the bottom of the drawer box (only partial extension) - light to medium duty, made from steel. (Other finishes are available): Roller Drawer Runners (17-20 kg)

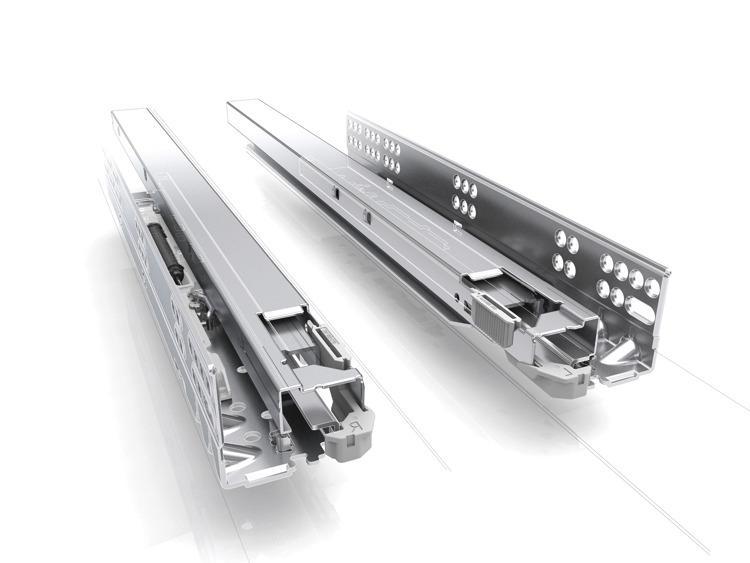

Soft closing runners these have become much more popular in the last few years- these will automatically draw the runner to closed position softly without the need to push all the way. These will come in various forms: Under-mounted  (mostly concealed fitting under the drawer box) Recommended: Grass Dynapro, Soft Close (40 kg) Budget range: Hafele Matrix, Soft Close (30 kg) Side-mounted Recommended: Accuride 3832ec Easy Close (43-45 kg) Budget range: Ball Bearing, Soft Close (32-35 kg)
Touch release or push to open runners Once closed, they just need a gentle push to release and start to open out. Under-mounted: Grass Dynapro Tipmatic, Push-to-open (40kg) Side-mounted: Accuride 3832tr Touch Release (42-45 kg)

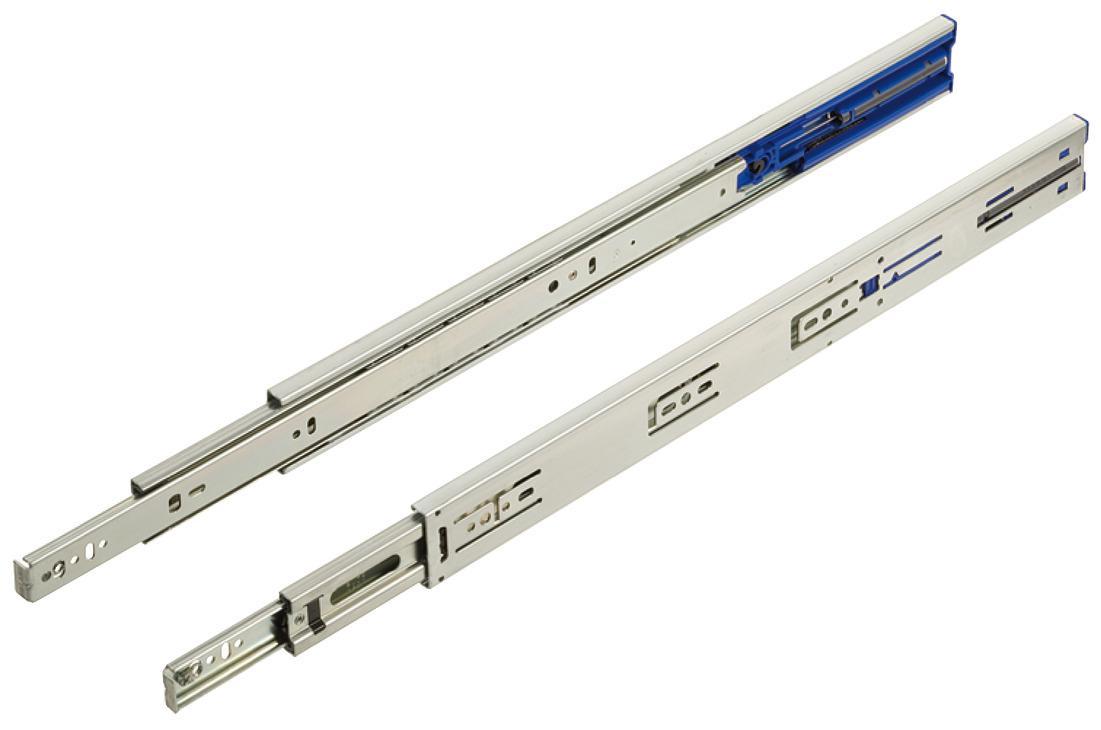

Ball bearing full extension steel runners These are for heavier drawer boxes,and will start at 45kg capacity per pair, they are typically for understair/underbed drawers, but can be used in any room as long as the drawer sides are high enough: Accuride 3832 (45-50 kg)

There are many others we supply, including in stainless steel material, and even two way travel runners.

If you are having difficulty identifying the runner you need to replace, or not able to choose the correct runner for your application, then please do Contact Us
