PRODUCT DETAILS

• Hold-in feature holds the closed drawer in
• Grooved cabinet member, for better movement

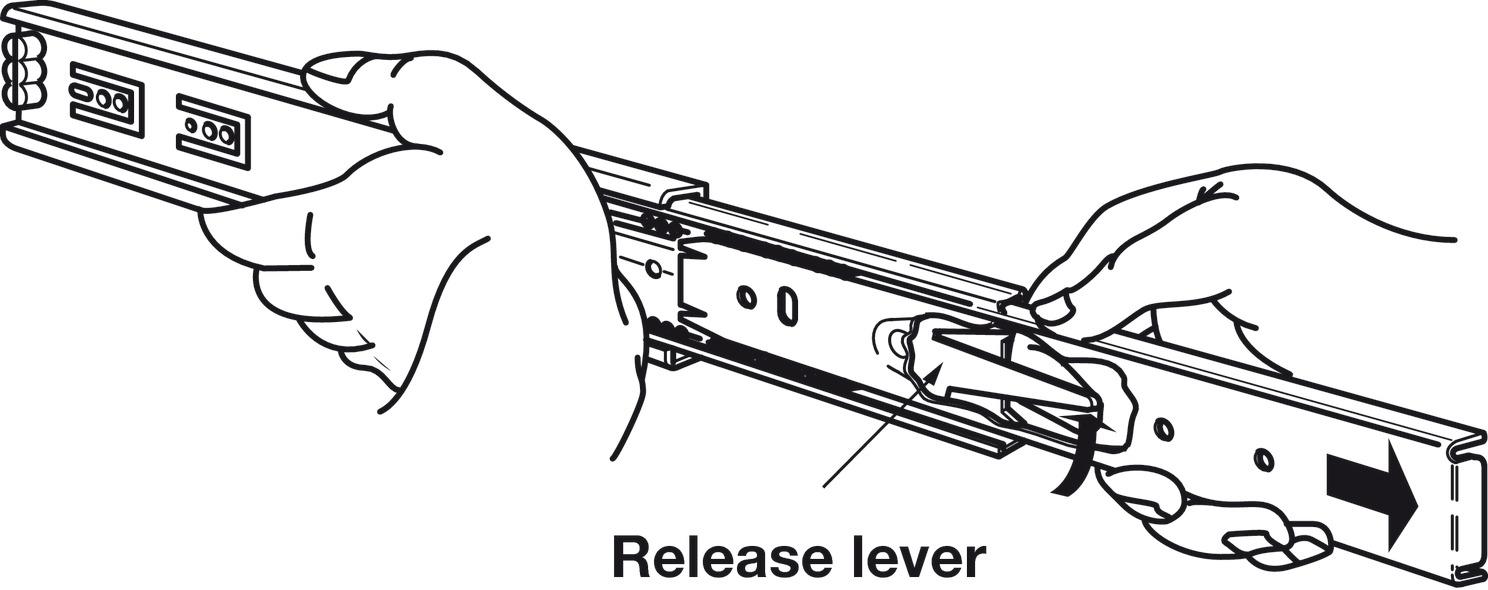

• Front disconnect (by depressing lever) for drawer removal
• Improved retainer retention device
• Tested to 80,000 cycles

Version
Tolerance absorption tabs

Type of pull out
Full extension

Area of application
For applications such as filing cabinets, desk pedestals and general storage drawers

Holding function
Hold-in

Removing the running track
without release lever

Material
Steel

Installation

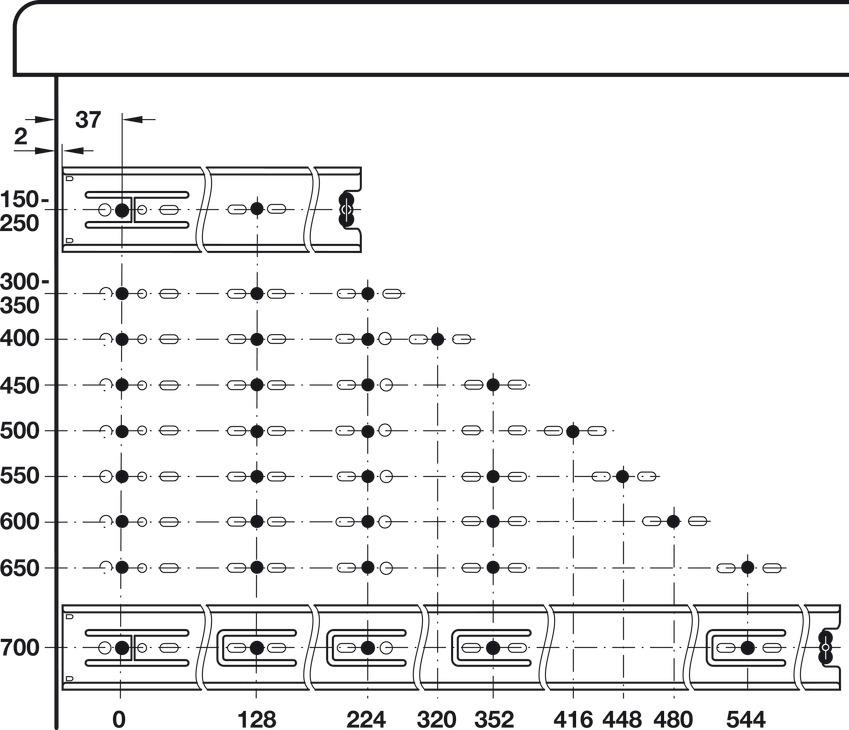

32 mm drilling pattern

Order reference
Optional brackets for bottom or shelf mounting of these runners are available- see in related products
Corrosion resistant and hold-out versions available
Order Varianta  5mm guage cylinder head and Hospa  4.0mm guage pan head screws separately
Fixings: Max. head height 2.5 mm,  guage 9.6 mm

Additional information attributes
Mounting bracket is not suitable for Accuride 3832 EC and 3832 TR.

Pack size
1 pair
