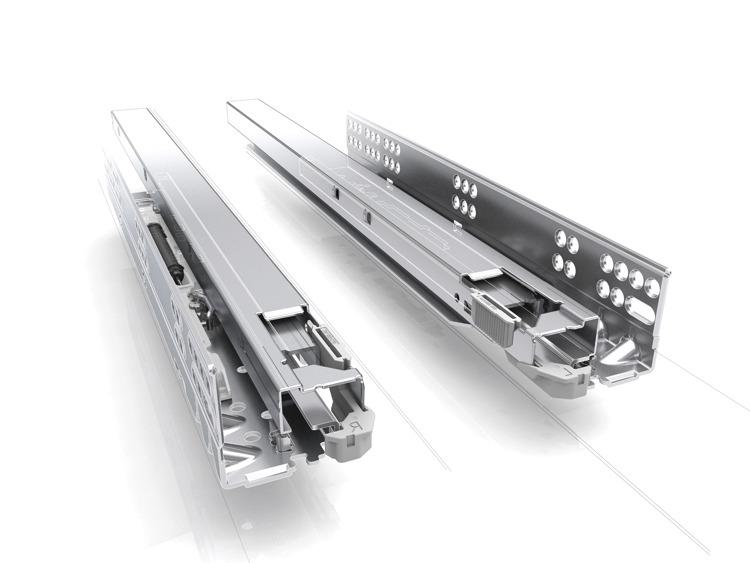

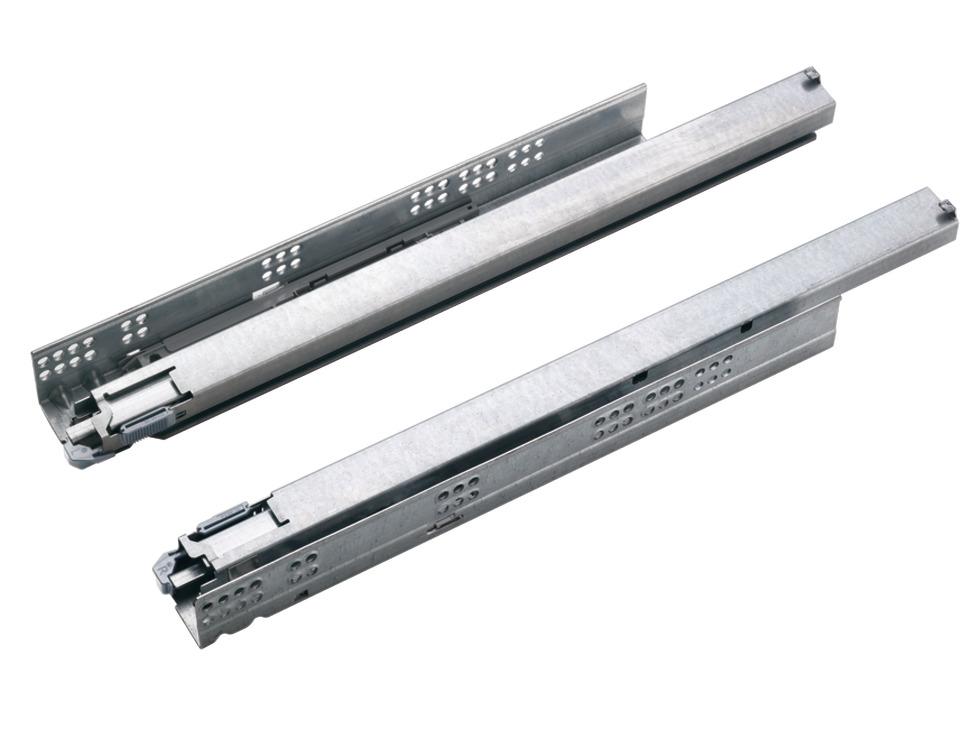

Concealed Drawer Runners, Full Extension, Soft Close, Grass Dynapro, 40 Kg (Runners Only) - Grass

Concealed Drawer Runners, Full Extension, Soft Close, Grass Dynapro, 40 Kg (Runners Only) - Grass

Product code: 433.19.600


£0.00
£29.05
(
£24.21
ex VAT)
View video
Earn291
reward points
Please choose from the options below to show product code, price and availability


Out of stock. Purchase on backorder.

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    These are stocked items, and are usually available for same day collection

    PLEASE NOTE Adjustable fixing clips are not included. Please see Related Products below

    Featuring revolutionary tool less 4D adjustment which gives vertical tilt, side to side and depth adjustment (ideal for perfect allignment and accurate gaps, for inframe and lay on applications)

    • 100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawer
    • Improved soft close function - with liquid in damper to give continuous soft close
    • 40 kg capacity as standard, so ideal for the majority of drawers, with 70 kg option available for very larger drawers
    • Incredibly stable with the lowest deflection rates available
    • Also available :-Add on push to open cartridge for handleless applications using soft close runner, Tipmatic cartridge and accessories- please see in related products
    • For use with Vionara drawer system
    • Please note: 250 mm length Dynapro runners are not compatible with Tipmatic

    Type of pull out
    Full extension

    Load bearing capacity
    40 kg

    Adjustment facility
    Height adjustment + 3.5 mm, Side adjustment ± 1.5 mm, Tilt adjustment + 4 mm, Depth adjustment + 3.5 mm

    Material
    Steel

    Colour/finish
    Zinc plated, Pre-galvanized

    Mounting
    Slide-on

    Installation
    32 mm drilling pattern

    Order Reference
    5 mm countersunk screws, 4.0 mm pan head screws and optional accessories to be ordered separately
    Front and rear fixing clips to be ordered separately (see Related Products)

    Pack size
    1 pair

    Please order either 3D or 4D adjustable locking clips in related products

    A cheaper range of undermounted soft close runners can be found here
