PRODUCT DETAILS

A 160 degree opening cupboard door hinge with built in damper .

Allows doors to close slowly providing premium door motion

Comes with a mounting plate and screw covers

Specification

3 way adjustment of door position is available as below

Depth +1.5mm/-2.5mm

Vertical +/-3mm

Overlay (horizontal) :+0mm/-4mm

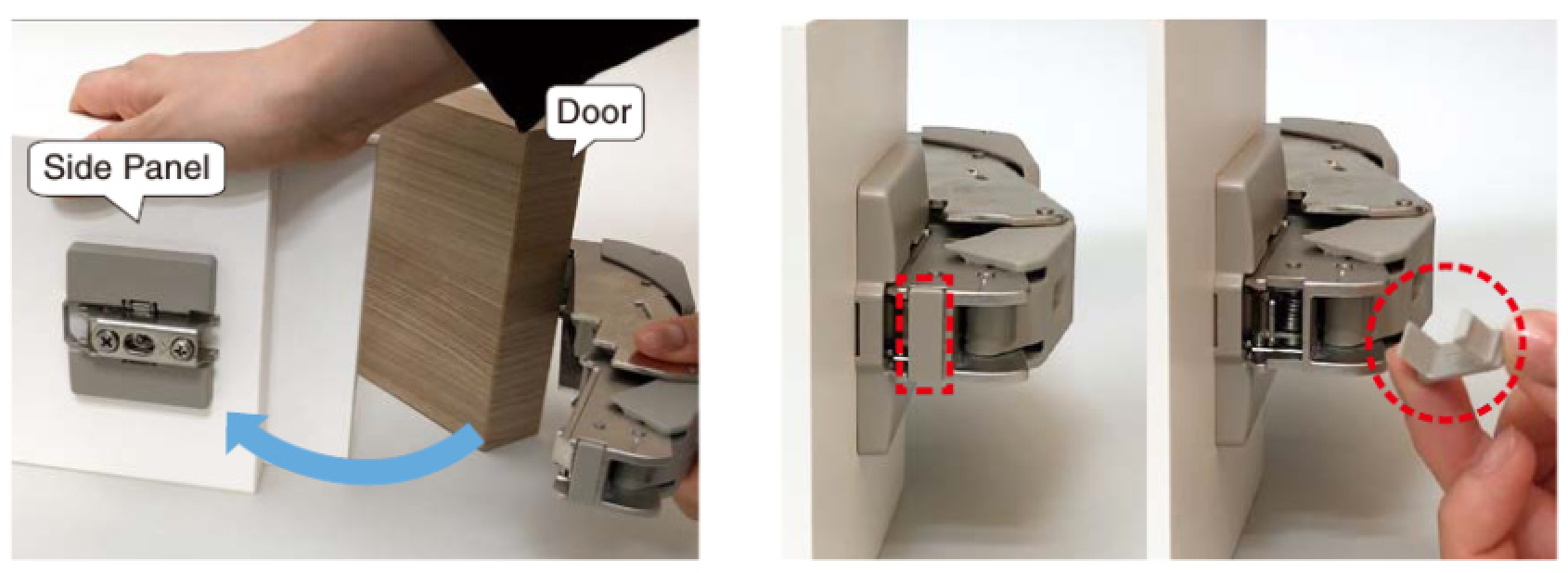

Includes a red holding pin which holds the hinge angle. (don't touch this until hinge is installed)

Includes - Cross- recessed countersunk tapping screw 5x18mm

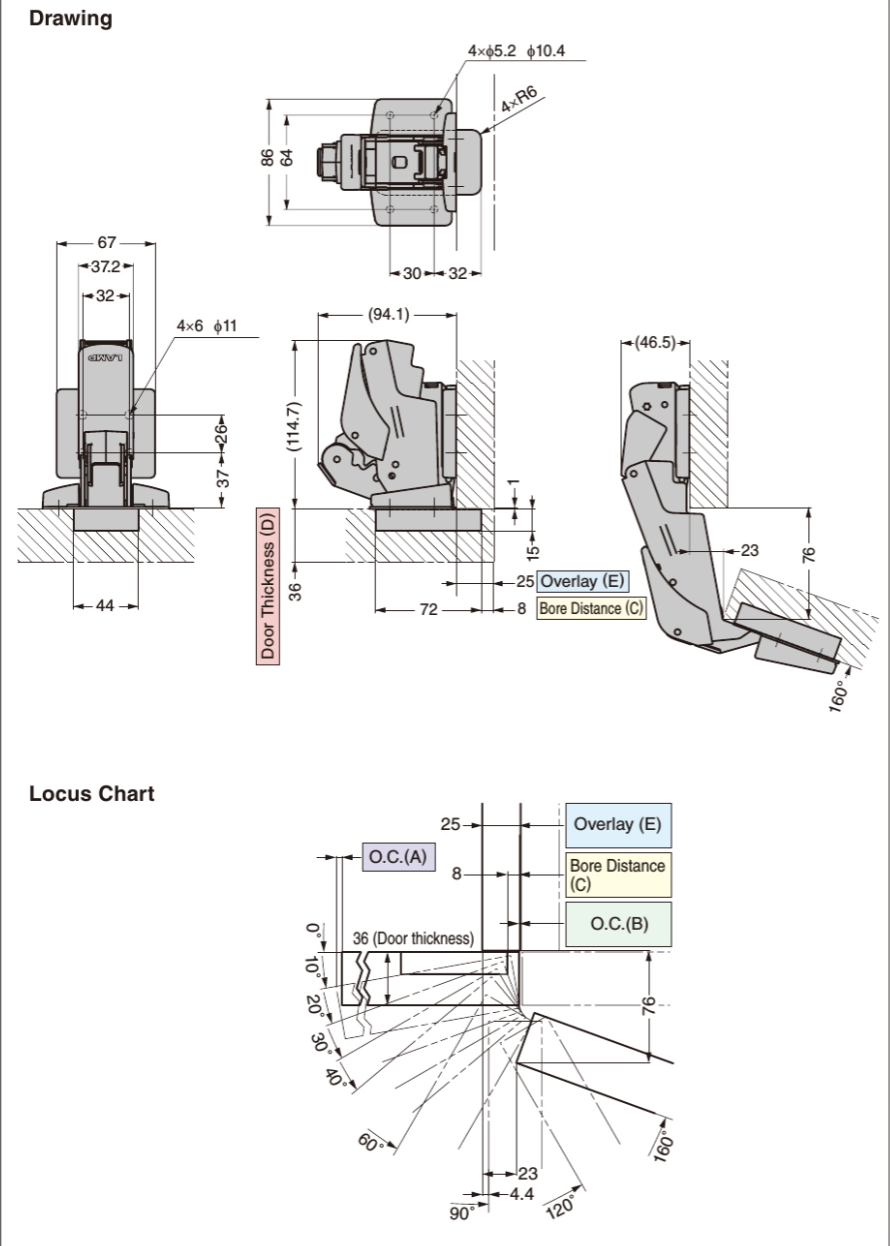

Catalogue page
