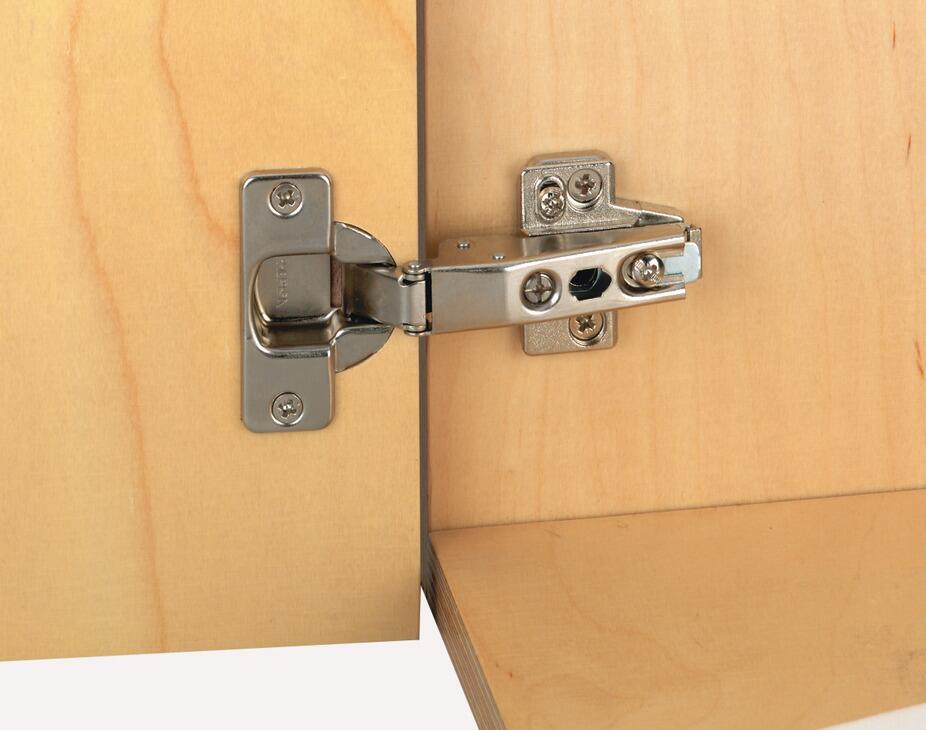

Nexis Concealed Cabinet Hinge, 100 Deg, Sprung, Full Overlay (Hinge Only) - Hafele

Nexis Concealed Cabinet Hinge, 100 Deg, Sprung, Full Overlay (Hinge Only) - Hafele

Product code: 322.15.540

£0.00
£0.00
(
£0.00
ex VAT)
Earn0
reward points
Available On Back Order
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • Soft-close compatible
    • For standard applications
    • Version: Click on
    • Full overlay
    • Nickel plated steel
    • Opening angle: 100 degrees

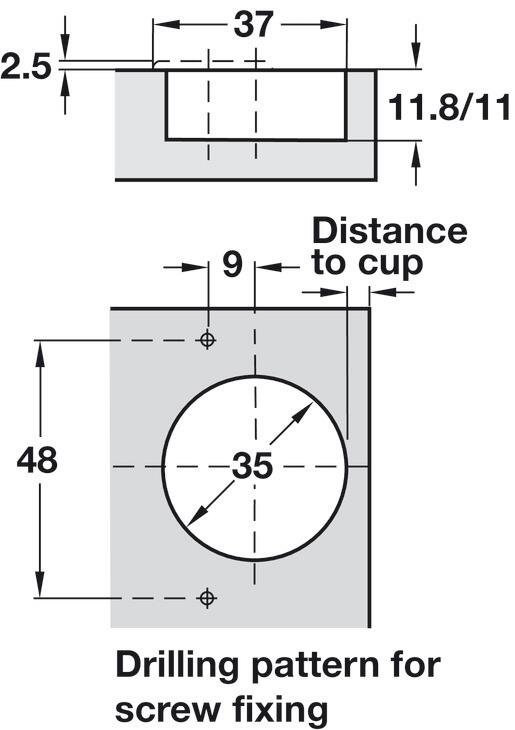

    • Cup drilling depth: 11 mm
    • Cup drilling diameter: 35 mm
    • Drilling pattern: 48/9

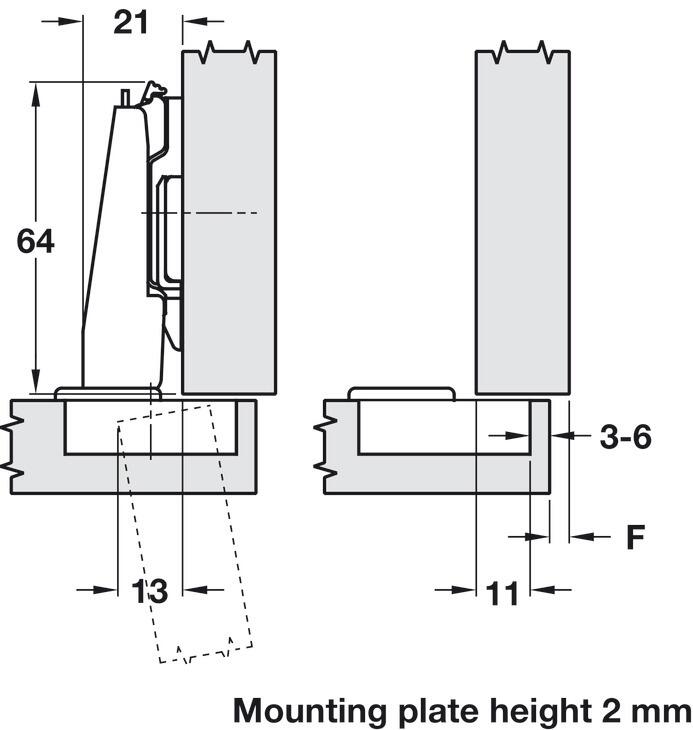

    Wider range of mounting plates available, please order separately

    Order D3.5 mm raised head countersunk screws separately
