Cupboard Concealed Cup Hinge, 95 Degree, Grass Tiomos, For Up To 28mm Thick Doors, Click On Arm, Soft Close (Without Plate) - Grass Tiomos

Cupboard Concealed Cup Hinge, 95 Degree, Grass Tiomos, For Up To 28mm Thick Doors, Click On Arm, Soft Close (Without Plate) - Grass Tiomos

Product code: 348.42.801

£0.00
£6.98
(
£5.82
ex VAT)
Earn70
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

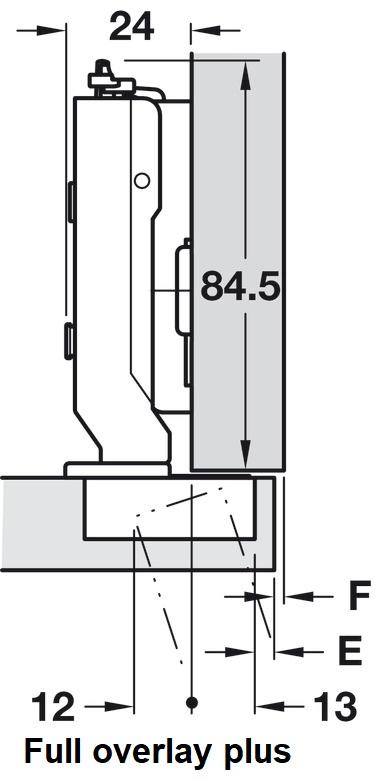

Full overlay plus

QuantityPrice (inc VAT)
5 - 9£7.00
10 - 24£6.63
25 +£5.89

Bulk Buy Discounts for:

Full overlay

QuantityPrice (inc VAT)
5 - 9£6.63
10 - 24£6.29
25 +£5.59

Bulk Buy Discounts for:

Half overlay / Twin mounting

QuantityPrice (inc VAT)
5 - 9£7.52
10 - 24£7.12
25 +£6.33

Bulk Buy Discounts for:

Inset

QuantityPrice (inc VAT)
5 - 9£7.86
10 - 24£7.45
25 +£6.62
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For standard application
    •  Diameter 35 mm cup
    • Up to 28 mm door thickness (for door thicknesses 29mm and above, a trial fitting is recommended)
    • Load capacity 22kg Maximum - with 5 hinges max width 600mm

    Drilling pattern
    45/9.5 mm

    Mounting
    Mounting in drilled hole, Screw fixing

    Model
    Tiomos

    Opening angle
    95 degree

    Material
    Steel, Hinge arm: Steel

    Door processing for assembly
    Cup drilling

    For wooden door thickness
    Up to 36 mm (fo 29 mm and above a trial fitting is recommended)

    Cup drilling depth
    12.6 mm

    Order reference
    Order mounting plate and Hospa  3.5mm countersunk screws separately
    Order cover plates separately

    35mm hole cutter available in related products
