Product code: 344.75.051

£0.00
£69.92
(
£58.27
ex VAT)
Earn699
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

stainless steel

QuantityPrice (inc VAT)
2 - 4£66.42
5 - 9£62.92
10 +£55.93
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

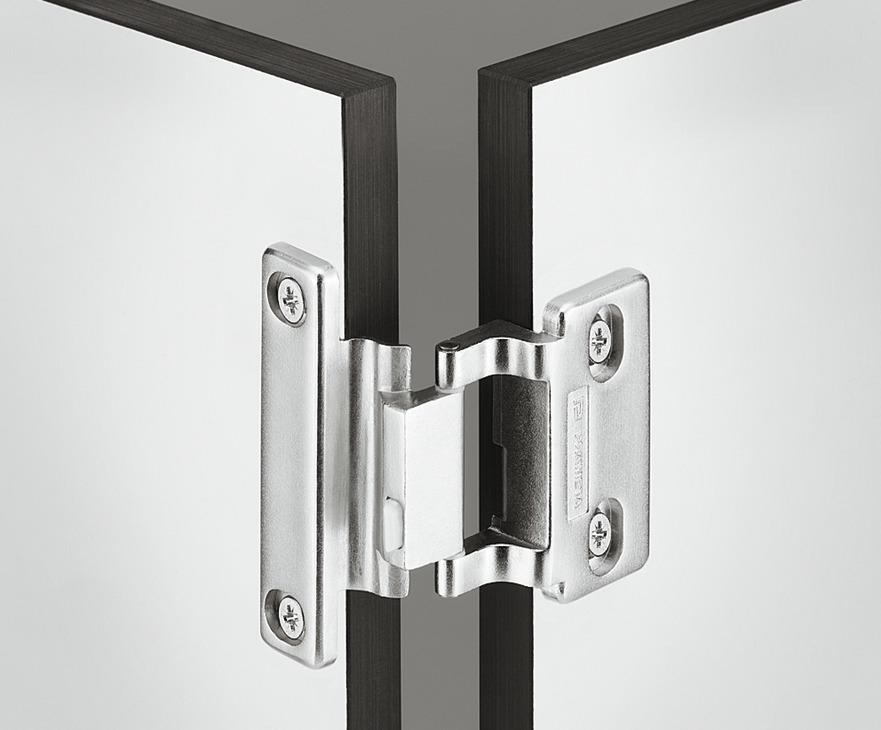

    With automatic closing spring, Half overlay mounting, screw fixing
    For cabinet thickness 13 mm

    • Side adjustment –1 mm
      Height adjustment ? 2 mm

    Material

    Grade 304 stainless steel

    Colour/finish

    matt

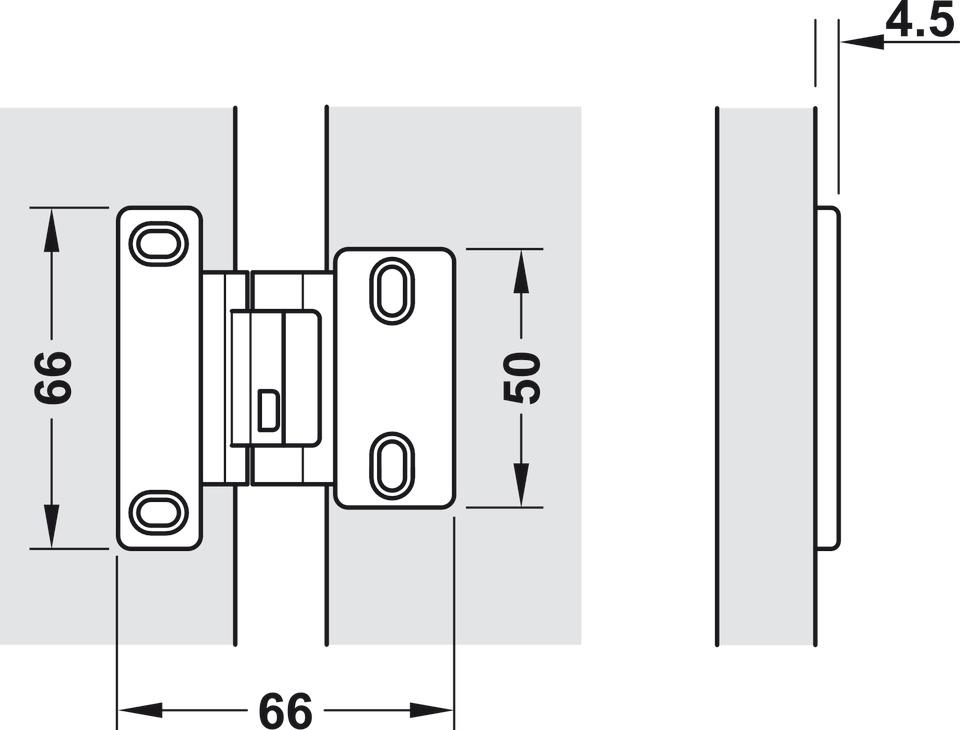

    Total width

    66 mm

    Flange thickness

    4.5 mm

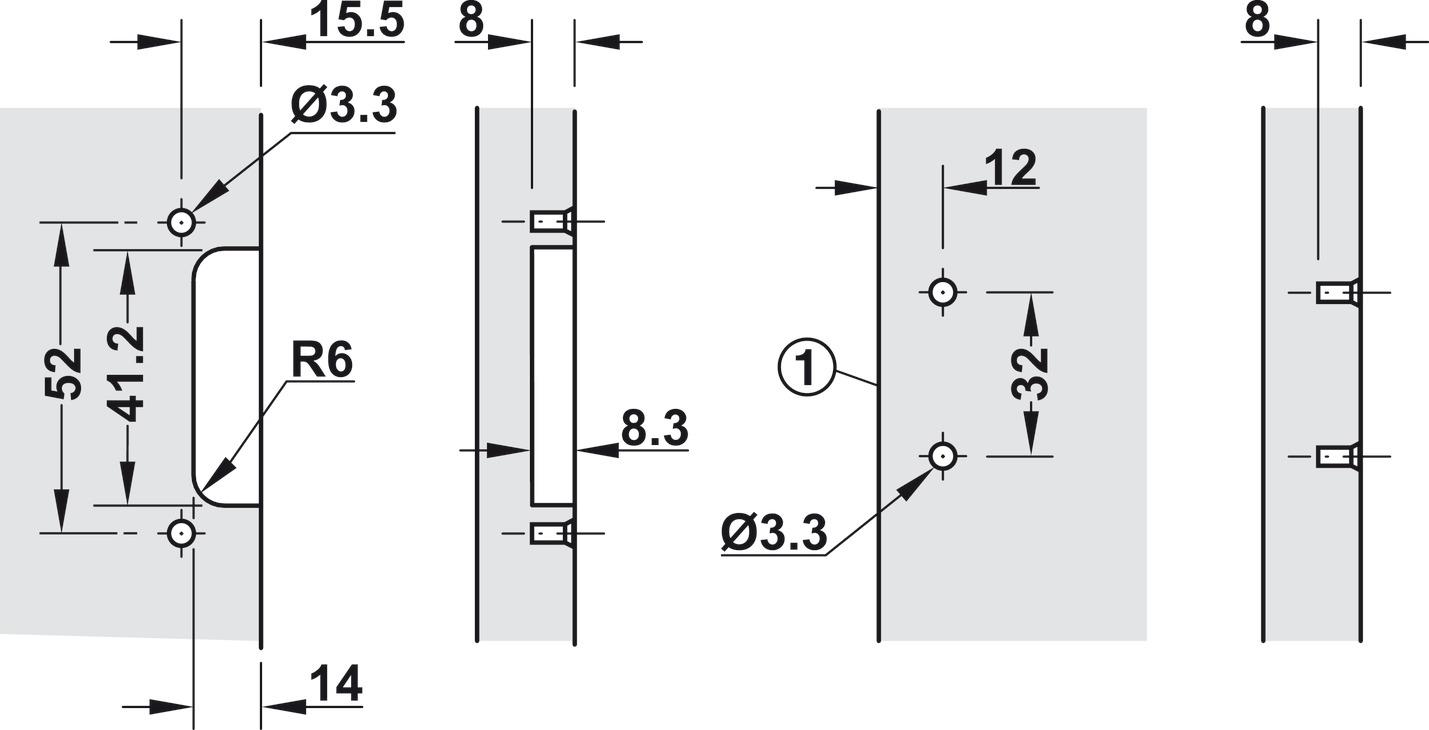

    Number of drill holes

    4

    Opening angle

    240 ?

    Product type

    Specialist Hinge

    Area of application

    For laminate (HPL) doors, 6 mm gap

    Version

    Half overlay mounting

    Door offset

    0 mm at 140? opening angle

    Door overlay

    3.5 mm

    Flange shape

    rounded

    Gap

    6 mm

    For door thickness

    ≥ 10 – ≤ 13 mm

    Installation

    For screw fixing


    Takes metric 3.5mm gauge countersunk screw

    Supplied with

    1 hinge & 1 set of fixing material

    The suitability of the stainless steel that is used for the intended application area must be assured by separate testing from case to case. ie not suitable for outside or marine environments
