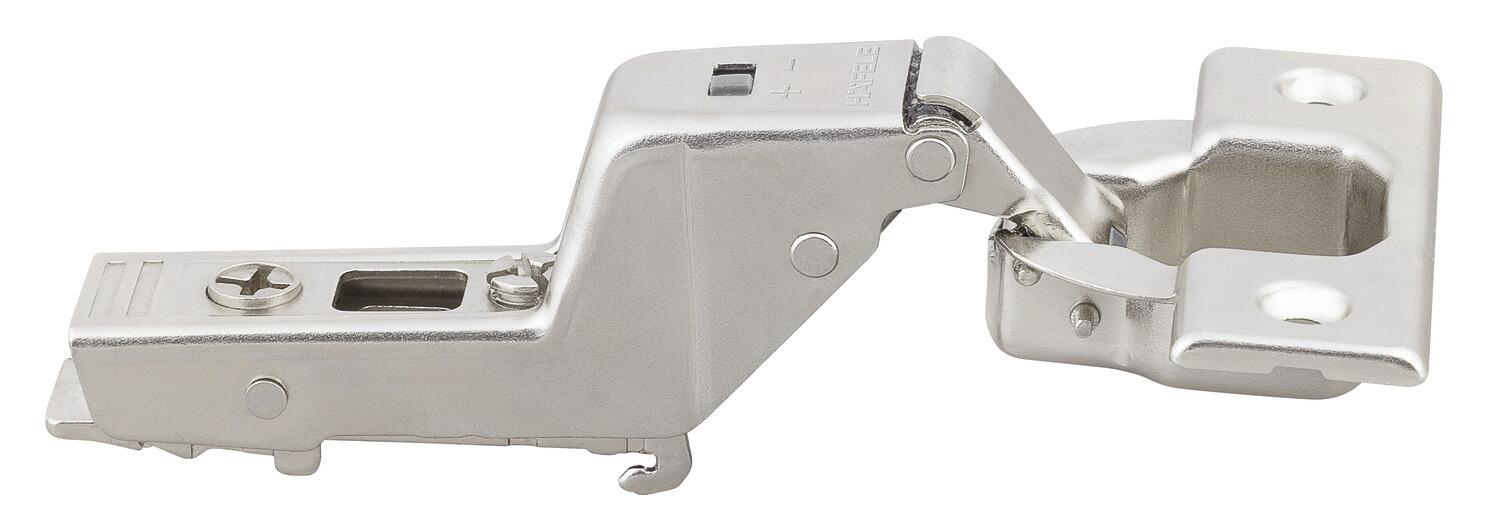

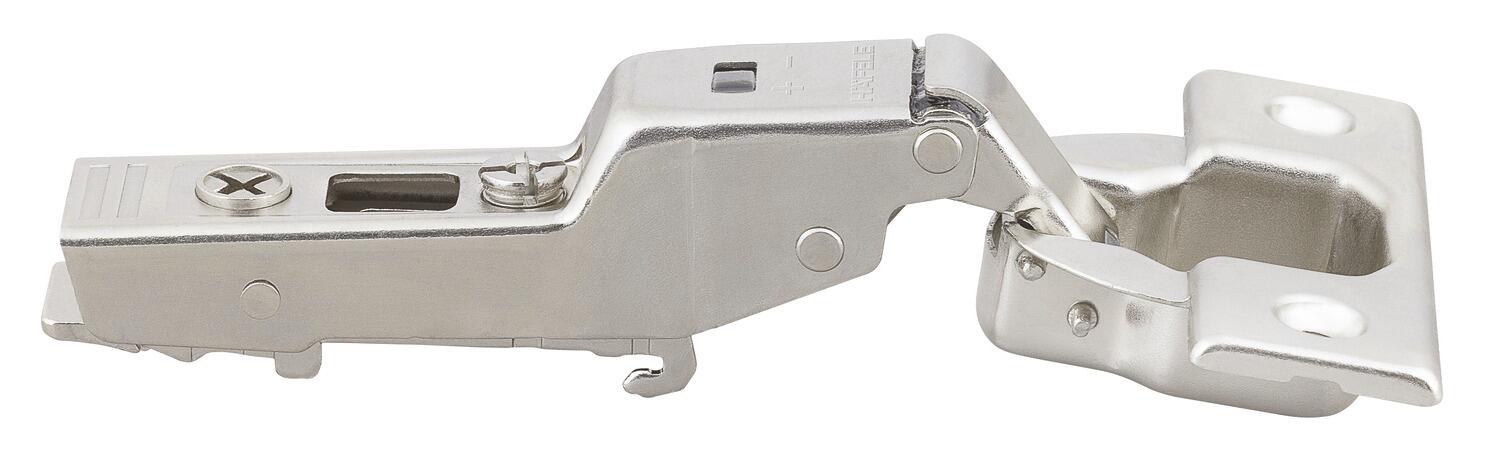

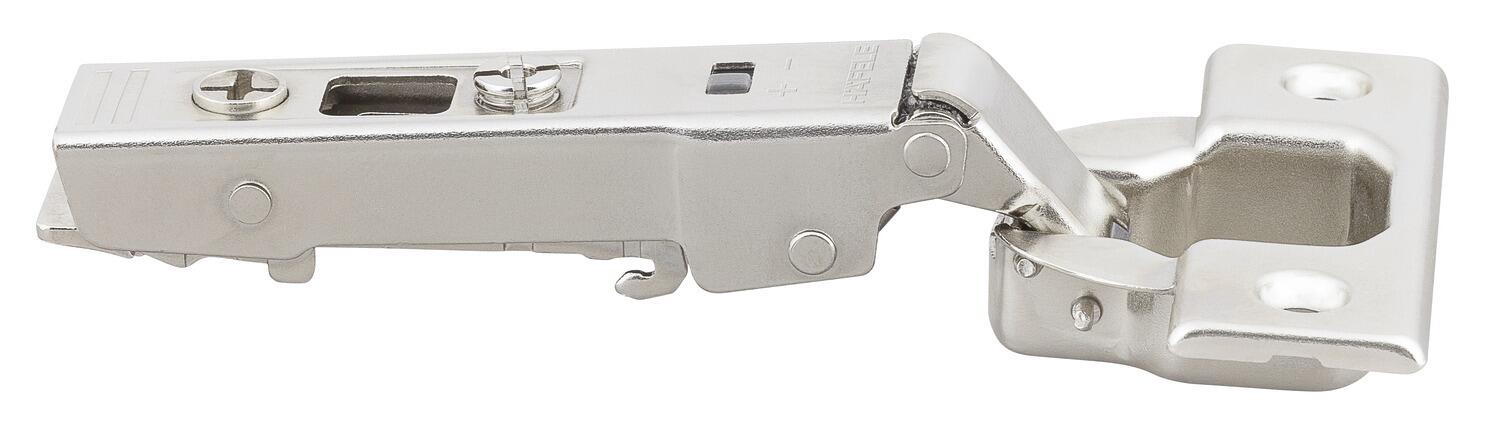

Hafele Metalla 540, 110 Degree Hinges, For 14-25mm Thick Doors, Nickel Plated - Hafele

Hafele Metalla 540, 110 Degree Hinges, For 14-25mm Thick Doors, Nickel Plated - Hafele

Product code: 311.05.009

£0.00
£2.21
(
£1.84
ex VAT)
Earn22
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Full overlay, Sprung with soft close

QuantityPrice (inc VAT)
50 - 99£2.24
100 +£1.96

Bulk Buy Discounts for:

Full overlay, Unpsrung without soft close

QuantityPrice (inc VAT)
50 - 99£2.21
100 - 249£1.93

Bulk Buy Discounts for:

Half overlay, Sprung with soft close

QuantityPrice (inc VAT)
50 - 99£2.36
100 - 249£2.07

Bulk Buy Discounts for:

Half overlay, Unpsrung without soft close

QuantityPrice (inc VAT)
50 - 99£2.21
100 - 249£1.93

Bulk Buy Discounts for:

Inset, Sprung with soft close

QuantityPrice (inc VAT)
50 - 99£2.42
100 - 249£2.12

Bulk Buy Discounts for:

Inset, Unpsrung without soft close

QuantityPrice (inc VAT)
50 - 99£2.21
100 - 249£1.93
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

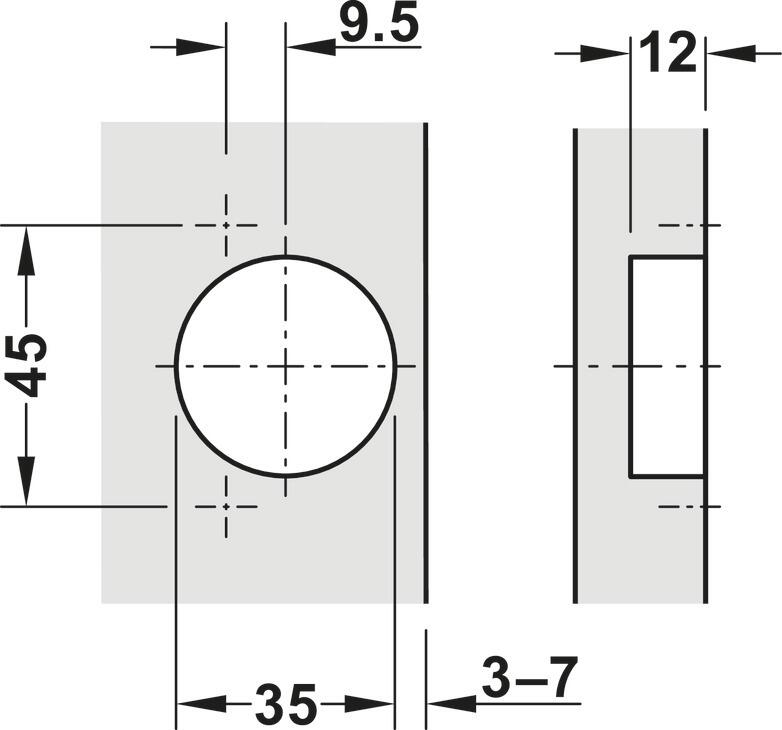

    • Opening angle 110 degrees, D35 mm cup
    • Screw fixing cup

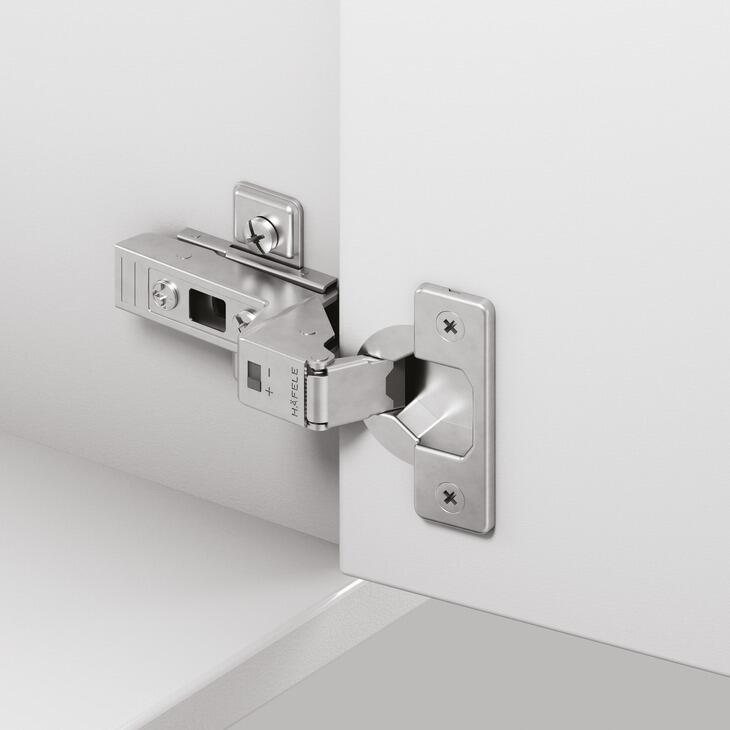

    • Installation: Door to cabinet for quick fixing with SM quick fixing system

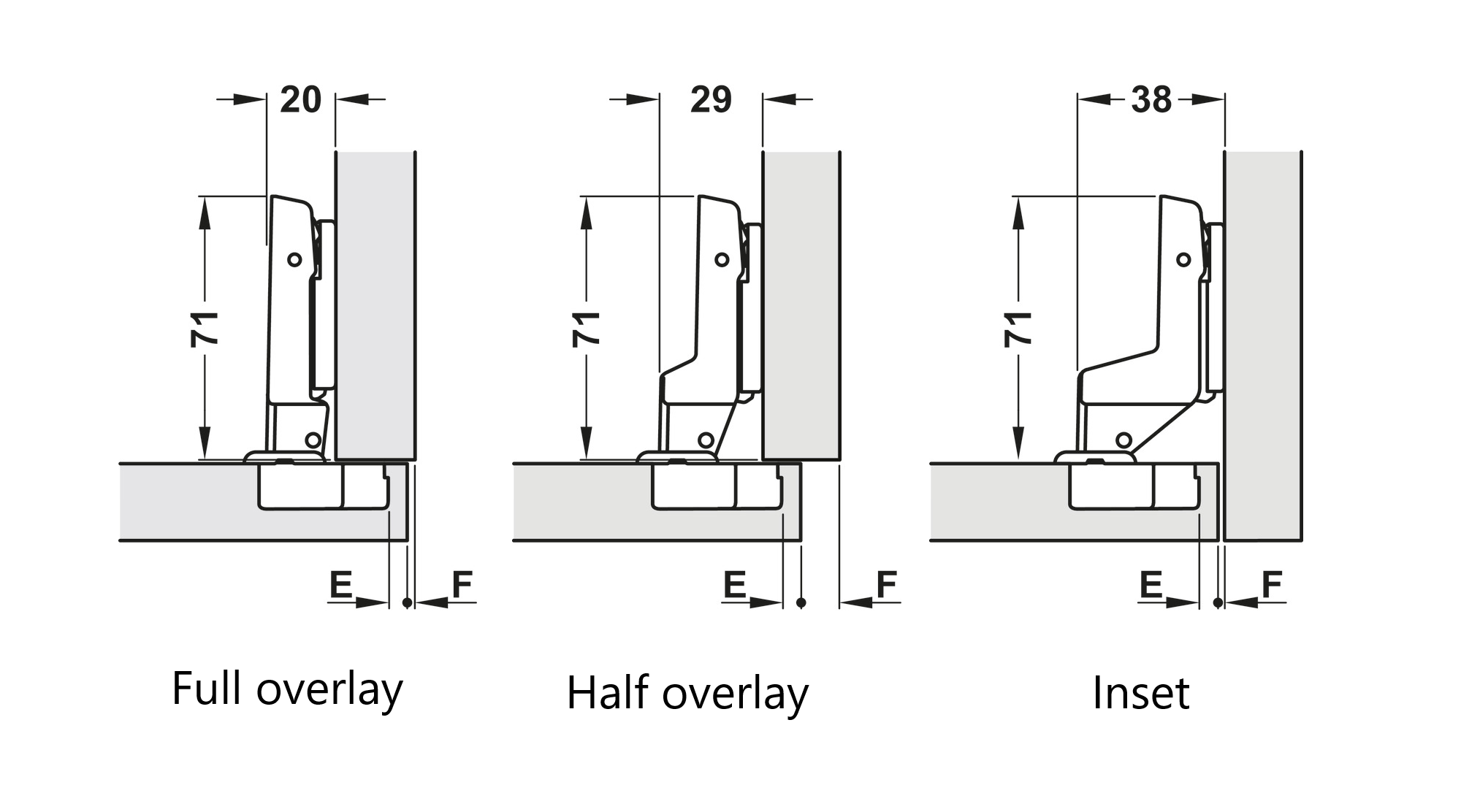

    • For door thickness 14-25 mm see table below
    • With or without integrated soft close
    • With or without automatic closing spring
    • Adjustment facility:
      Side adjustment +-3 mm
      Height adjustment +-2 mm (via mounting plate)
      Depth adjustment +-2 mm
    • Nickel plated steel cup and hinge arm
    • Mounting plate not included. Please see Related Products below.
    • Requires D3.5mm woodscrews (not included)
    • Sold in singles
