Pivot Set, Double Action, For Medium Duty Internal Doors, Frame Mounted - Hafele

Pivot Set, Double Action, For Medium Duty Internal Doors, Frame Mounted - Hafele

Product code: 932.87.030

£0.00
£150.31
(
£125.26
ex VAT)
Earn1503
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Suitable for FD30 doors, tested to EN 1634-1
    Allows doors to swing in either direction
    Door plates radiused for easy preparation

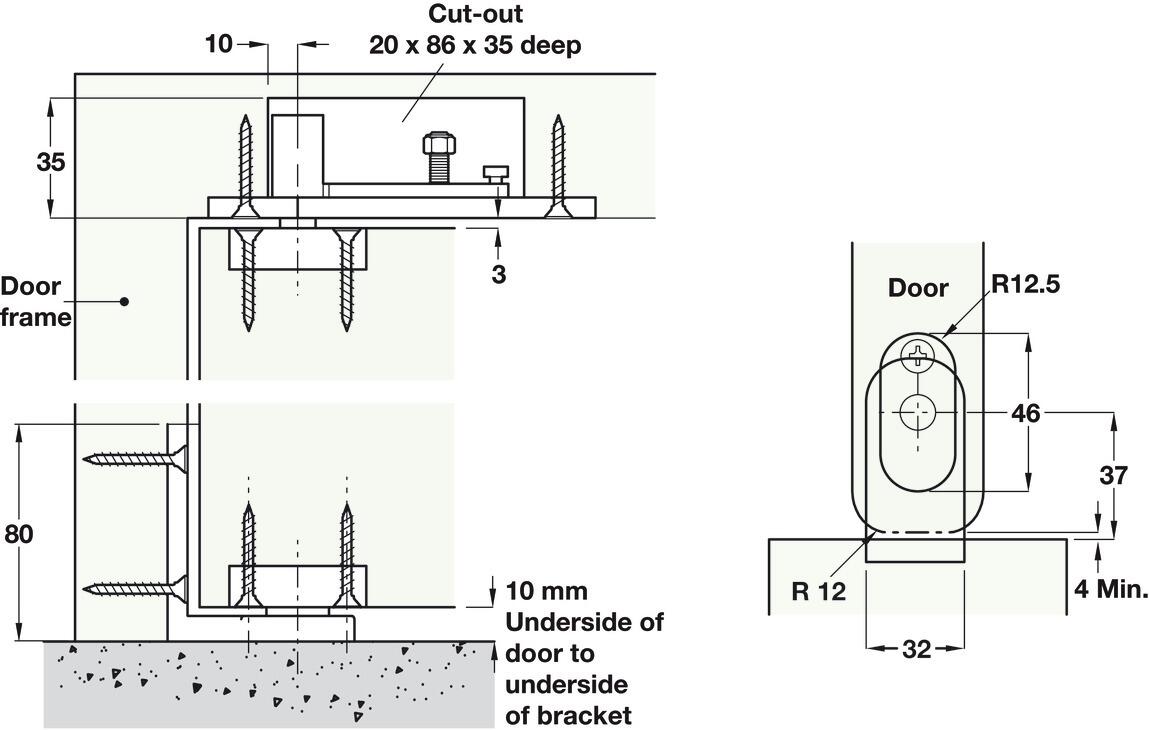

    Bottom bracket is frame mounted
    Top and bottom plates have maintenance free oil impregnated bronze bearings
    Maintenance free, guaranteed 25 years


    • 44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R15 radius
      Up to door weight 80 kg when bracket floor mounted
      Max. door width 1100 mm when jamb mounted

    Area of application

    For medium duty internal doors

    Material

    Stainless steel, quality 1.4301/AISI 304

    Supplied with



    Set includes door bottom pivot, top centre and ⌀ 5 mm screws to suit
