Door Closer, Overhead, Medium Duty, Ts 71 Dorma - Hafele

Door Closer, Overhead, Medium Duty, Ts 71 Dorma - Hafele

Product code: 931.07.709

£0.00
£93.38
(
£77.82
ex VAT)
Earn934
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Power size 3-4
    Adjustable closing speed and latch action
    Only Fig 1 pull face and Fig 6. (parallel arm) push side approved
    CE marked and Certifire accredited CF 268
    Tested in accordance with BS EN 1154:1997


    • TS71 is tested on timber intumescent sealed door assemblies with timber frames or insulated steel frames and has a fire resistance of up to 120 minutes
      Aluminium body, mild steel arm

    Version

    With standard arm

    Mounting options

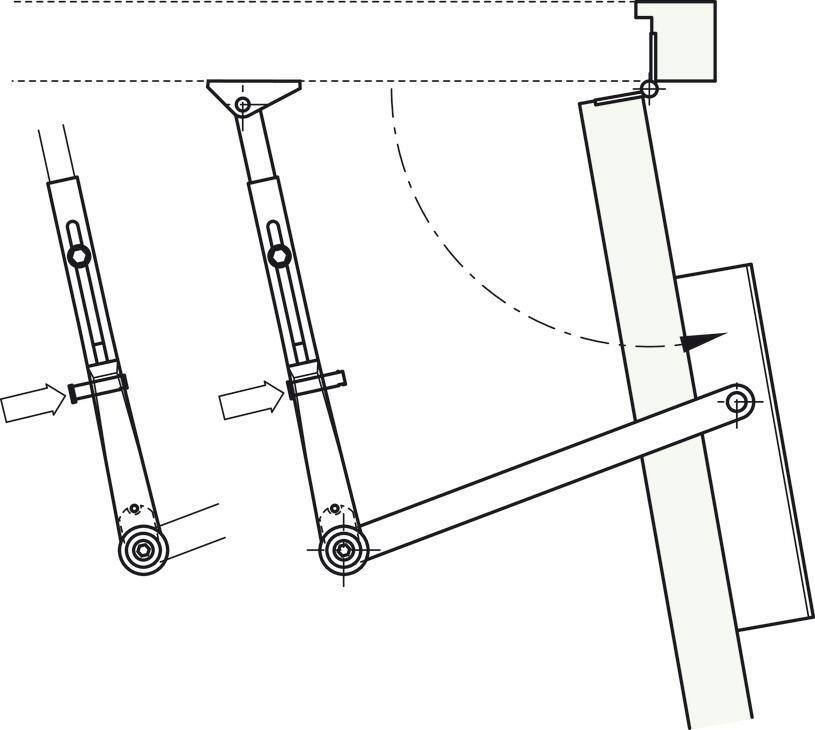

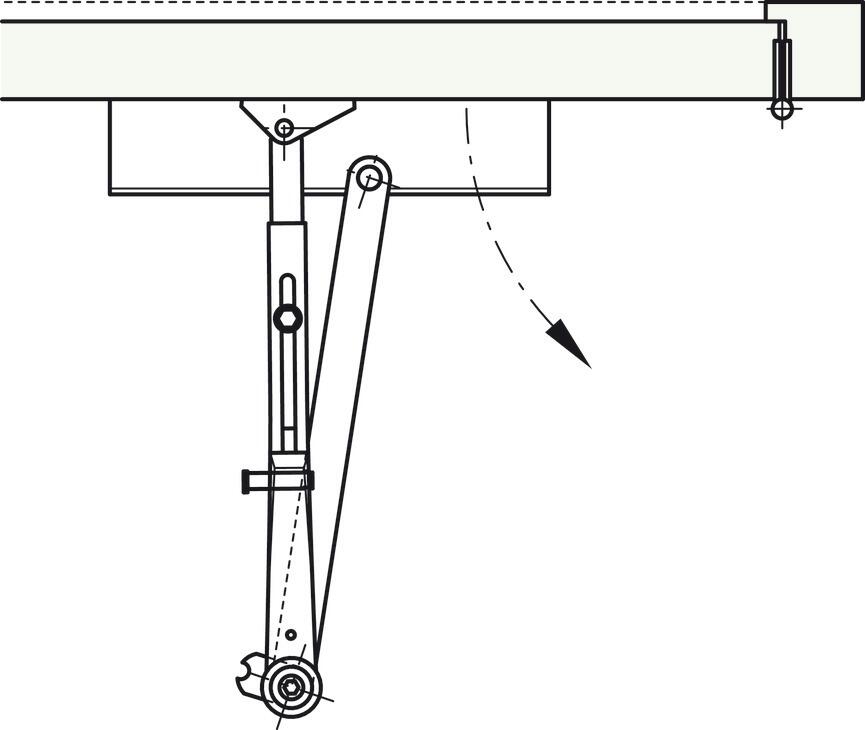

    Standard installation (door leaf installation) on pull side, Overhead installation (transom fixing) on push side

    For door width

    ≤1,100 mm

    Mounting

    For DIN left and DIN right hand use

    Colour/finish

    silver coloured

    For number of doors

    1-leaf doors

    Adjustment facility

    Closing force adjustable via arm hinge, closing speed continuously adjustable via arm, latching action continuously adjustable via arm assembly

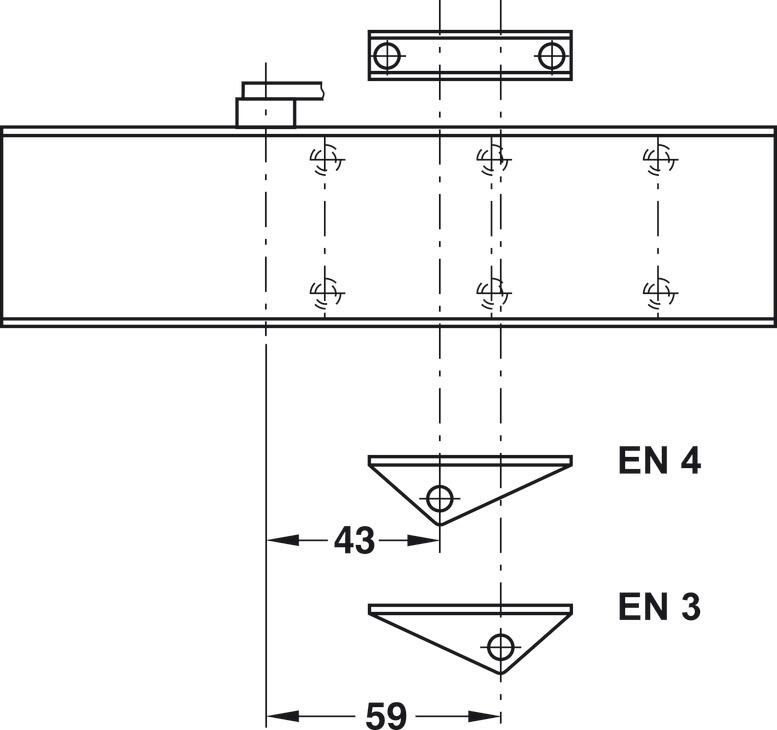

    Closing force

    3 or 4 in accordance with EN 1154

    Opening angle

    ≤180 °

    Hold-open angle

    ≤150 °

    Standard

    Certified in compliance with EN 1154:1996/A1:2002

    Grade

    4|8|3 – 4|1|1|2

    Supplied with



    1 Piece basic closer
    1 piece standard arm with flat lever
