Concealed Cupboard Soft Closing Hinge & Mounting Plate Set, 120 Degree Full Overlay, Grass Tiomos, (Pack Of 1) - Grass Tiomos

Concealed Cupboard Soft Closing Hinge & Mounting Plate Set, 120 Degree Full Overlay, Grass Tiomos, (Pack Of 1) - Grass Tiomos

Product code: 34836821s

£0.00
£3.56
(
£2.97
ex VAT)
Earn36
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Soft closing adjustable cupboard door hinge for doors that lay on the frame when closed

    This product is usually held in store (limited stock), so can be collected or despatched same day as ordering (weekdays)

    • For standard cupboard door (commonly kitchen door)applications. (Does not come with the arm or hinge cover plates as standard- see in related products if required- but they are not essential for use)
    • Will take up to a 24mm door thickness (for door thicknesses 24mm and above, a trial fitting is recommended)
    • Comes with 1x 0mm Height 2 part click on Cruciform mounting plate- (most frequently used size)

    Version
    With soft closing mechanism- the power of the soft close is adjustable via a lever at the end of the hinge arm

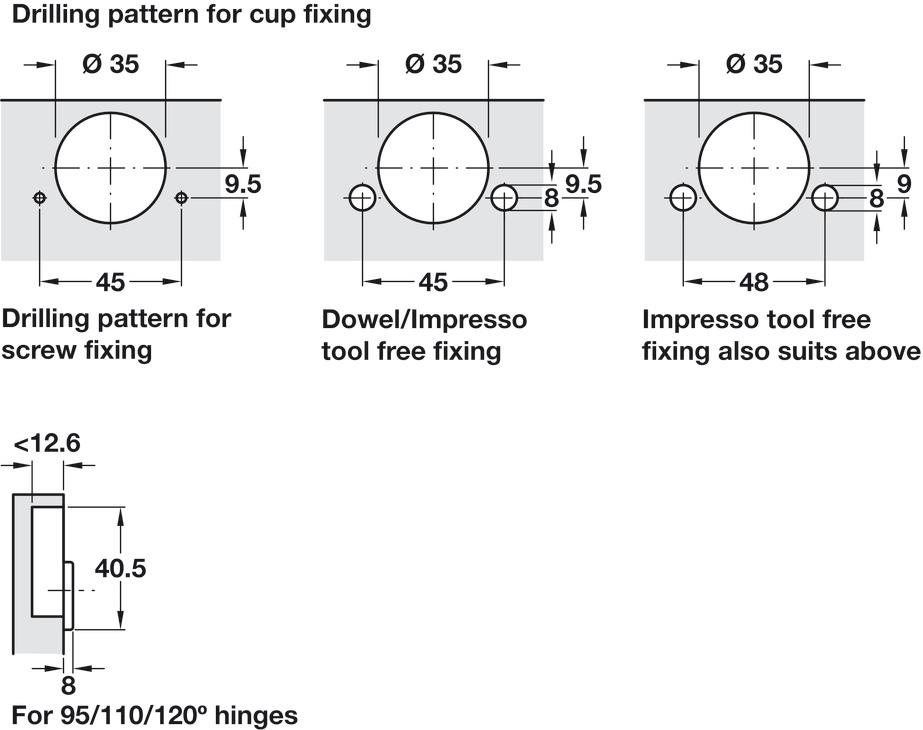

    Drilling pattern
    45/9.5 mm

    Cup fixing
    For screw fixing

    Mounting
    Mounting in drilled hole, Screw fixing- simply clicks on to the mouning plate for easy fitting

    Model
    Grass Tiomos

    Concealed hinge version
    Full overlay (when door is closed- hinges sits on top of the frame)

    Material
    Steel, Hinge arm: Steel

    Door processing for assembly
    Cup drilling

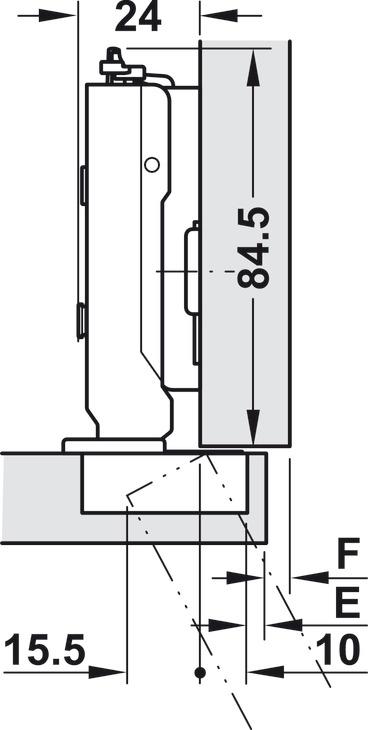

    For wooden door thickness
    up to 24 mm

    Cup drilling depth
    12.6 mm

    Order reference
    Takes 3.5mm gauge countersunk screws separately
    Please order cover plates for the arm and cup separately- see in related products

    35mm hole cutter available in related products

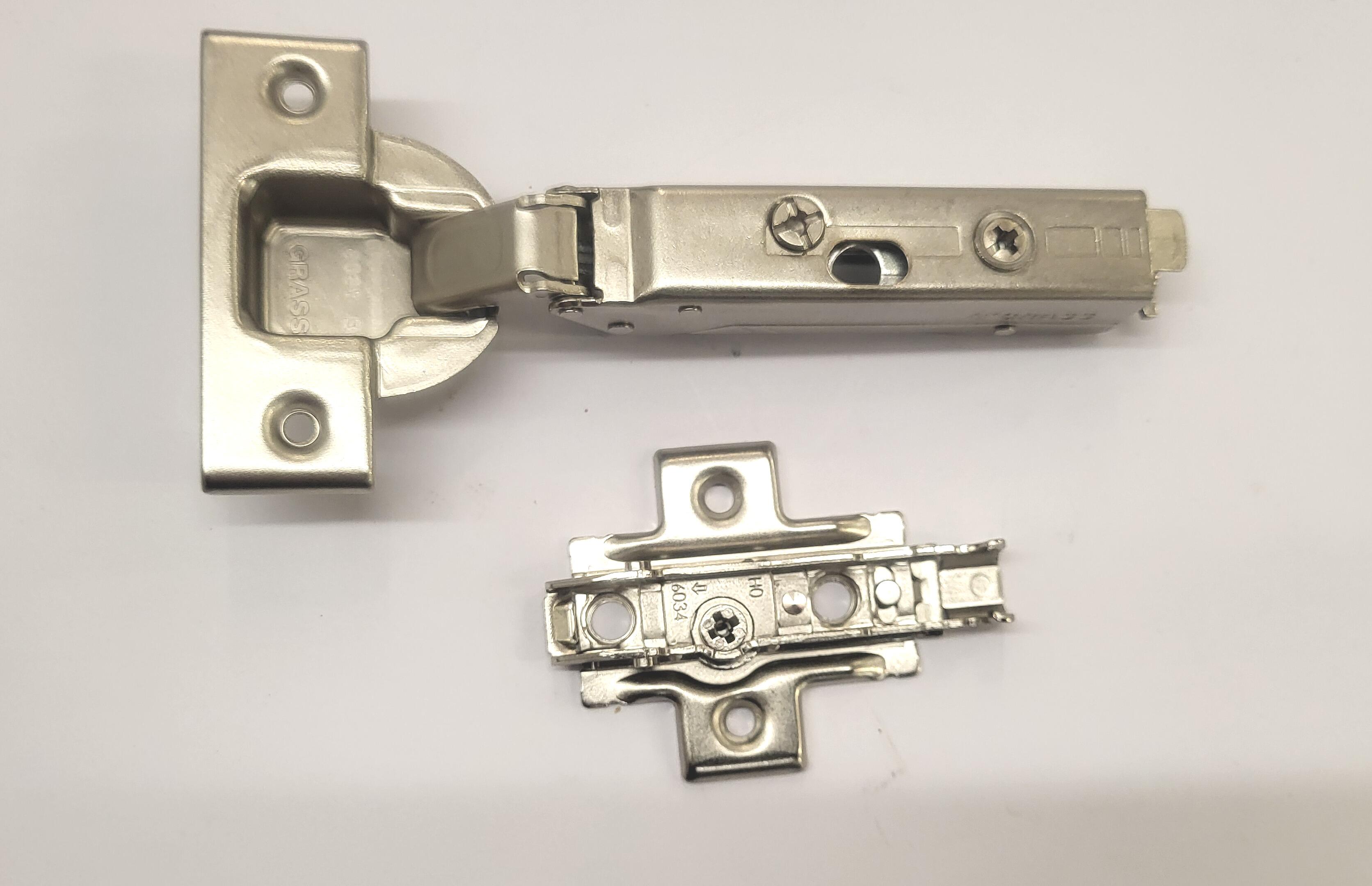

    Supplied with
    1x 120 degree Tiomos hinge (348.36.801)
    1x Mounting plate (348.38.511)


    Other Grass Tiomos hinges in the range available - please see in related products. If you don't see what you require please ask!
