PRODUCT DETAILS

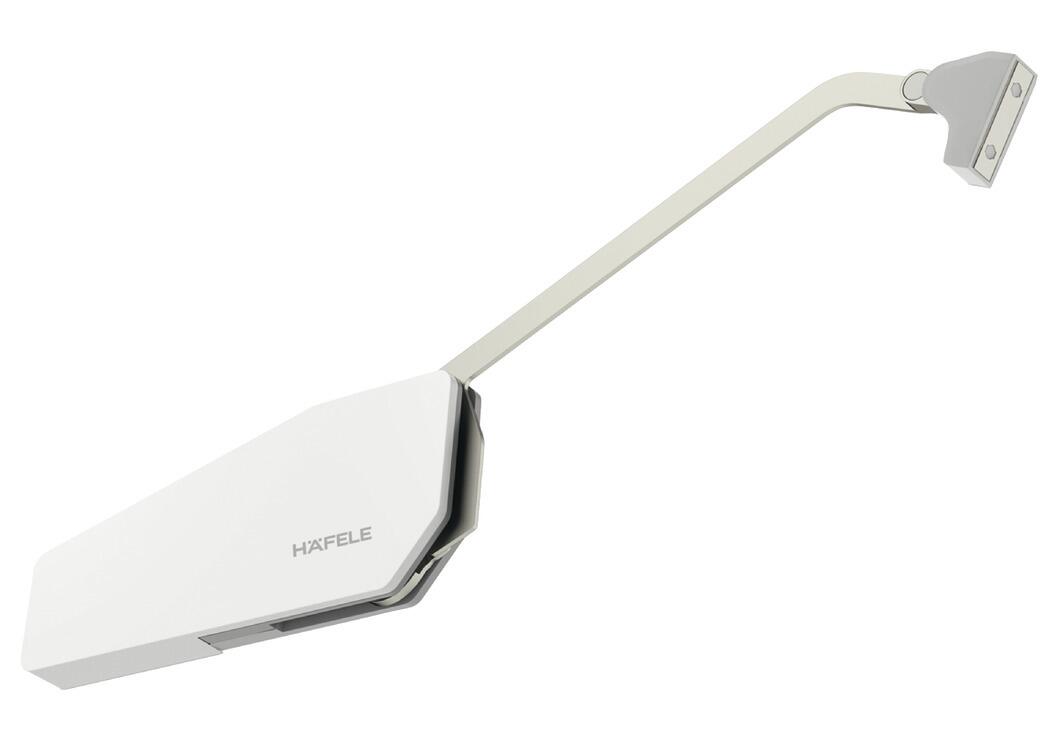

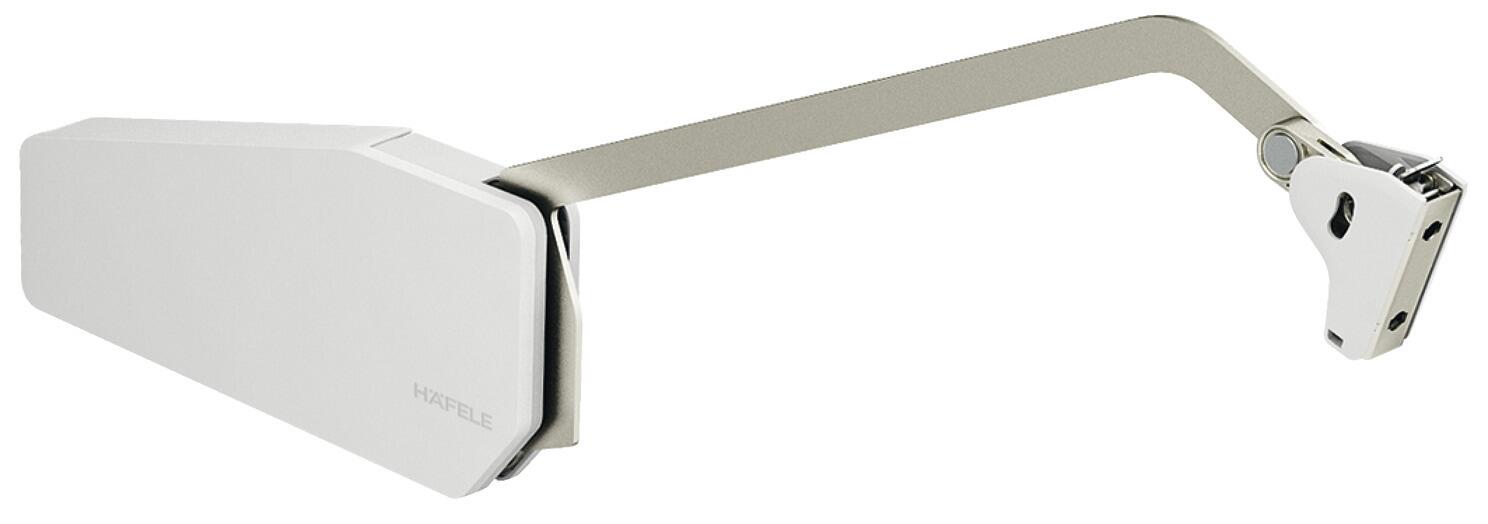

Hafele Free Fold - Double Flap Lift Up Flap Fittings

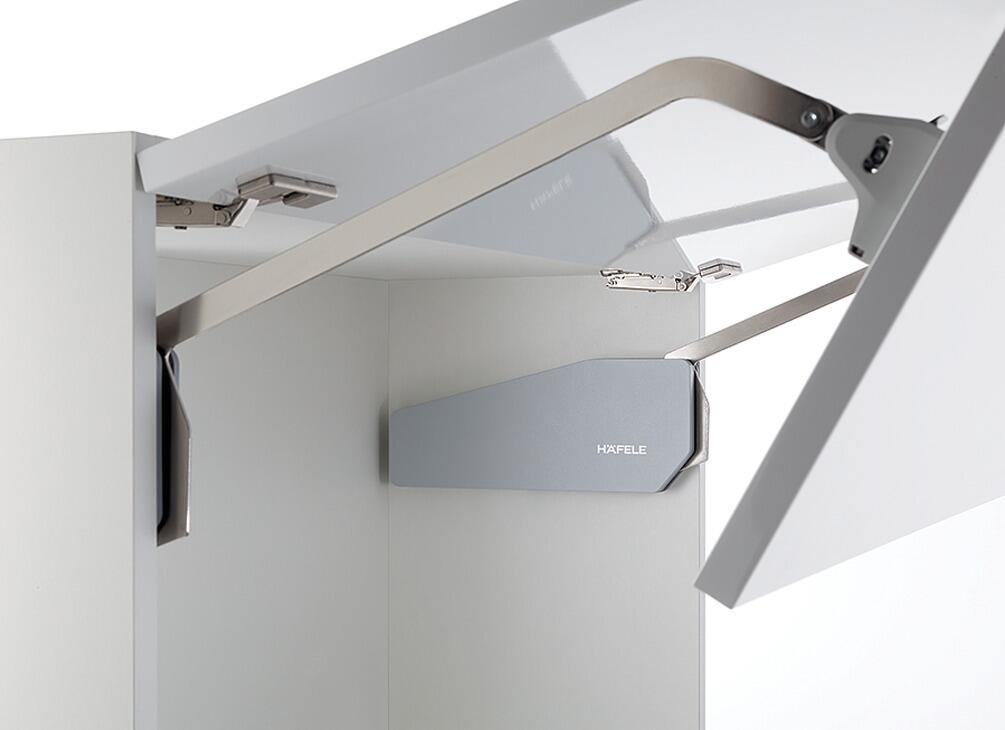

• For 2-piece flaps with 1:1 division
• Even high front panels can be lifted up in a space-saving way
• Less space required in the room when opening
• The handle is within reach at all times
• Pleasant operating feeling even with heavy flaps
• Stylish and compact design
• Safety stop
• For use in combination with standard 110 degree concealed hinges
• Minimum opening resistance, multi-position stop function and integrated soft opening and soft closing mechanisms for extremely pleasant operating feeling

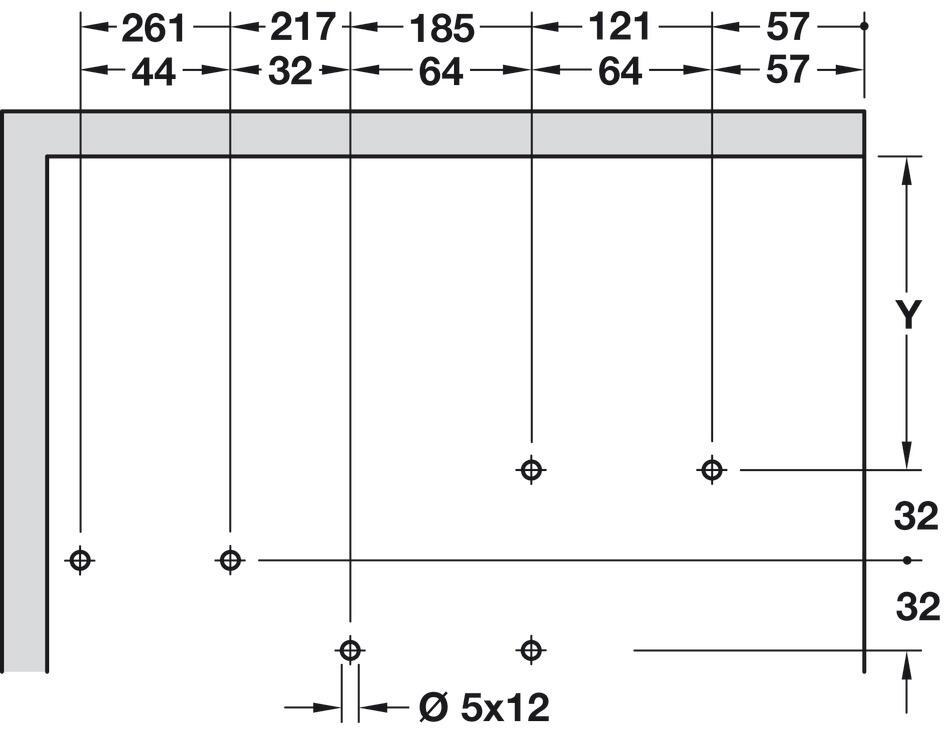

• Rational and quick installation thanks to pins, pre-mounted Euro screws and quick fixing system of the front panel

Free Fold

• For two-piece flaps - wood or with aluminium frame from 45 mm
• For use in furniture in kitchens, living rooms, bathrooms and offices
• Flap locks in any position (multi-position stop function)
• Assisted opening and soft closing

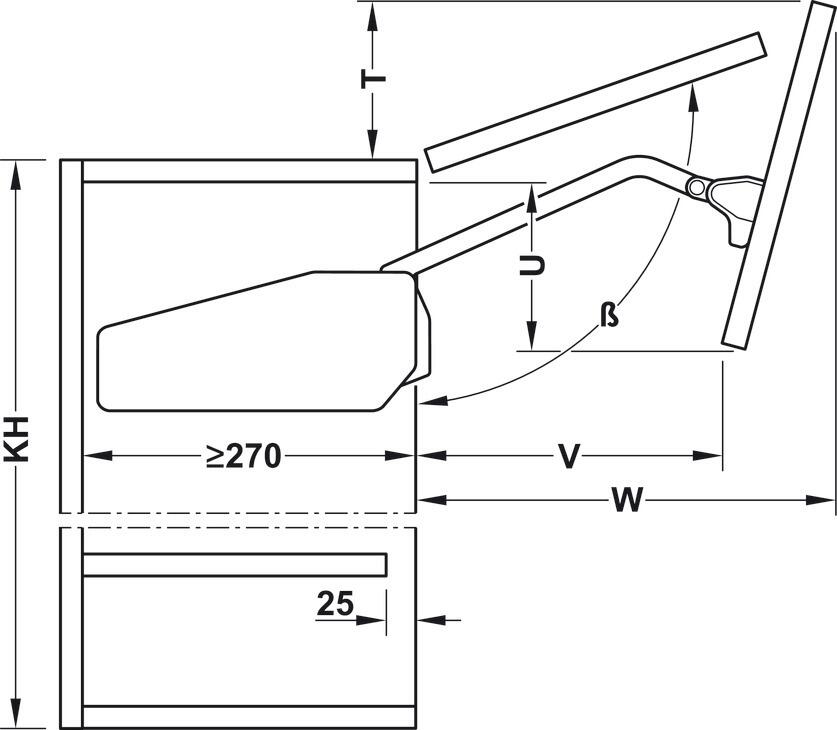

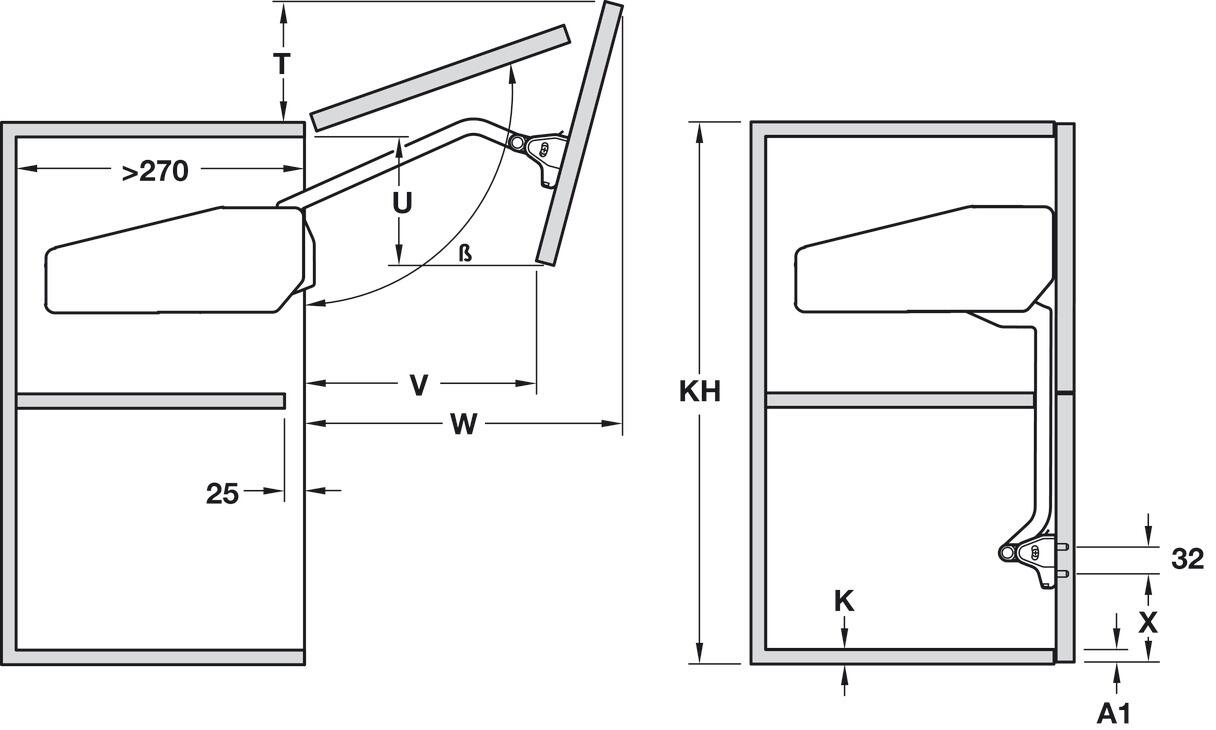

• For flap heights 720 (700-780) mm or 550 (540-580) mm
• Adjustable fitting, suitable for flap weights 2-20.3 kg

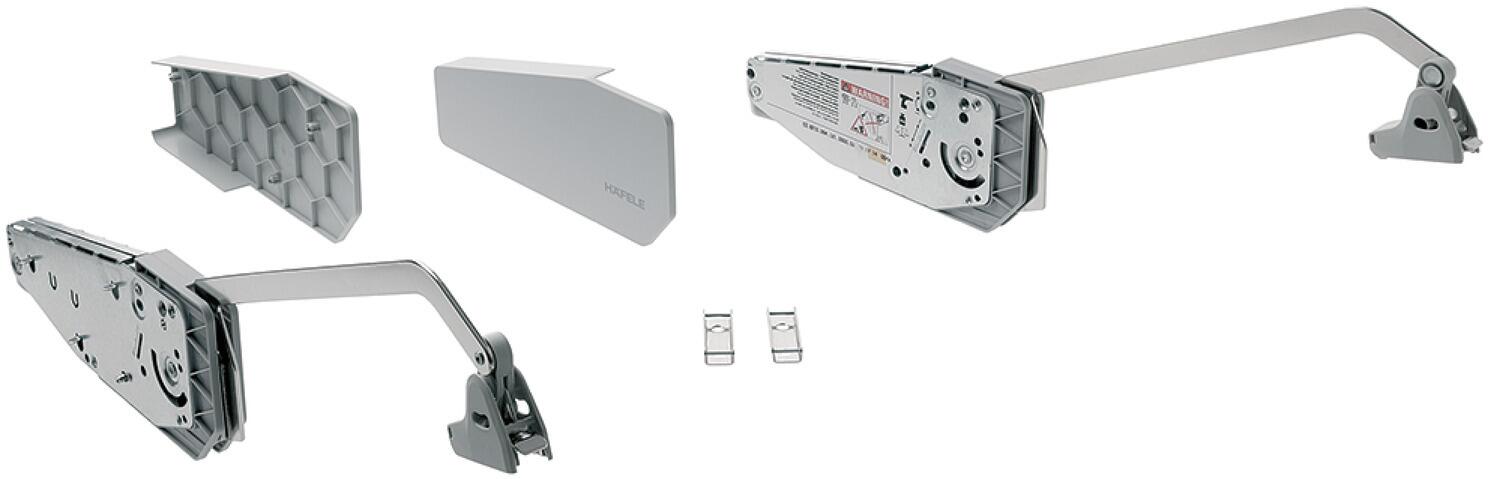

Set includes
1x Double flap lift up fitting

Height and side adjustment +3 mm, holding, opening and centre pull adjustment facility
Nickel-plated steel flap fitting, grey plastic cover caps (Please note image shows white)
Order fixing screws separately

Minimum 110 degree concealed hinges are required. Please see Related Products below.
Finger safe connecting hinges are required. Please see Related Products below.

Sample measurements table for selecting the right model based on cabinet height and flap weight. We recommend to use the stronger fitting model when in doubt.
